TractGraphFormer: Anatomically Informed Hybrid Graph CNN-Transformer Network for Classification from Diffusion MRI Tractography

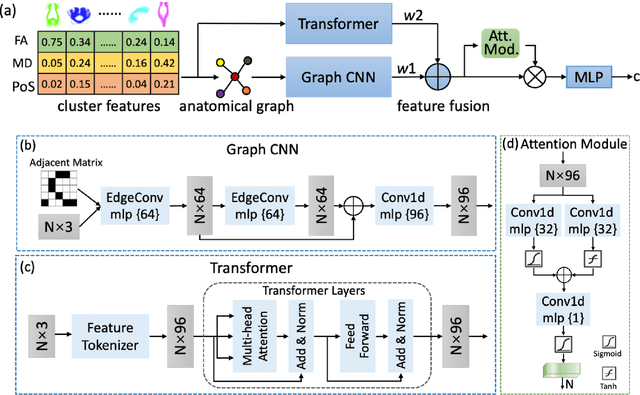

The relationship between brain connections and non-imaging phenotypes is increasingly studied using deep neural networks. However, the local and global properties of the brain's white matter networks are often overlooked in convolutional network design. We introduce TractGraphFormer, a hybrid Graph CNN-Transformer deep learning framework tailored for diffusion MRI tractography. This model leverages local anatomical characteristics and global feature dependencies of white matter structures. The Graph CNN module captures white matter geometry and grey matter connectivity to aggregate local features from anatomically similar white matter connections, while the Transformer module uses self-attention to enhance global information learning. Additionally, TractGraphFormer includes an attention module for interpreting predictive white matter connections. In sex prediction tests, TractGraphFormer shows strong performance in large datasets of children (n=9345) and young adults (n=1065). Overall, our approach suggests that widespread connections in the WM are predictive of the sex of an individual, and consistent predictive anatomical tracts are identified across the two datasets. The proposed approach highlights the potential of integrating local anatomical information and global feature dependencies to improve prediction performance in machine learning with diffusion MRI tractography.

TractGeoNet: A geometric deep learning framework for pointwise analysis of tract microstructure to predict language assessment performance

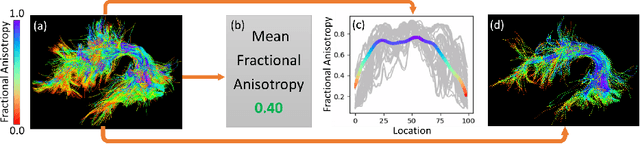

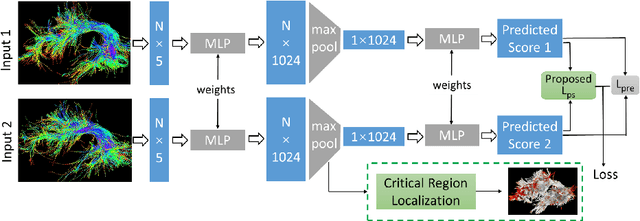

We propose a geometric deep-learning-based framework, TractGeoNet, for performing regression using diffusion magnetic resonance imaging (dMRI) tractography and associated pointwise tissue microstructure measurements. By employing a point cloud representation, TractGeoNet can directly utilize pointwise tissue microstructure and positional information from all points within a fiber tract. To improve regression performance, we propose a novel loss function, the Paired-Siamese Regression loss, which encourages the model to focus on accurately predicting the relative differences between regression label scores rather than just their absolute values. In addition, we propose a Critical Region Localization algorithm to identify highly predictive anatomical regions within the white matter fiber tracts for the regression task. We evaluate the effectiveness of the proposed method by predicting individual performance on two neuropsychological assessments of language using a dataset of 20 association white matter fiber tracts from 806 subjects from the Human Connectome Project. The results demonstrate superior prediction performance of TractGeoNet compared to several popular regression models. Of the twenty tracts studied, we find that the left arcuate fasciculus tract is the most highly predictive of the two studied language performance assessments. The localized critical regions are widespread and distributed across both hemispheres and all cerebral lobes, including areas of the brain considered important for language function such as superior and anterior temporal regions, pars opercularis, and precentral gyrus. Overall, TractGeoNet demonstrates the potential of geometric deep learning to enhance the study of the brain's white matter fiber tracts and to relate their structure to human traits such as language performance.

TractGraphCNN: anatomically informed graph CNN for classification using diffusion MRI tractography

The structure and variability of the brain's connections can be investigated via prediction of non-imaging phenotypes using neural networks. However, known neuroanatomical relationships between input features are generally ignored in network design. We propose TractGraphCNN, a novel, anatomically informed graph CNN framework for machine learning tasks using diffusion MRI tractography. An EdgeConv module aggregates features from anatomically similar white matter connections indicated by graph edges, and an attention module enables interpretation of predictive white matter tracts. Results in a sex prediction testbed task demonstrate strong performance of TractGraphCNN in two large datasets (HCP and ABCD). Graphs informed by white matter geometry demonstrate higher performance than graphs informed by gray matter connectivity. Overall, the bilateral cingulum and left middle longitudinal fasciculus are consistently highly predictive of sex. This work shows the potential of incorporating anatomical information, especially known anatomical similarities between input features, to guide convolutions in neural networks.

A Novel Supervised Contrastive Regression Framework for Prediction of Neurocognitive Measures Using Multi-Site Harmonized Diffusion MRI Tractography

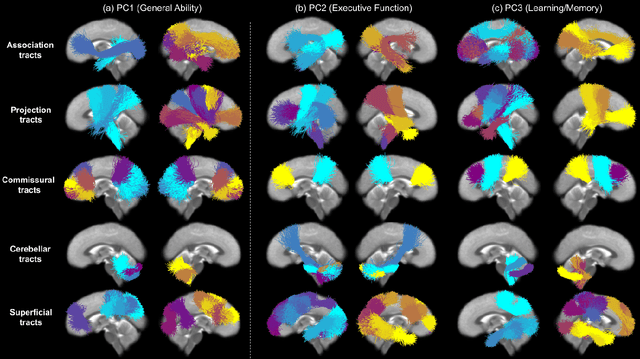

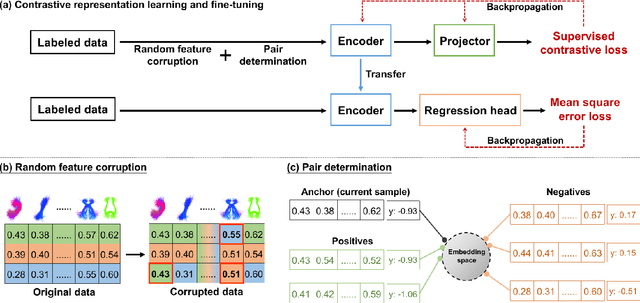

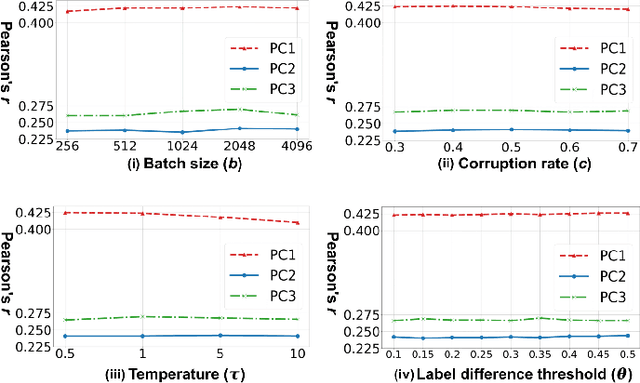

Neuroimaging-based prediction of neurocognitive measures is valuable for studying how the brain's structure relates to cognitive function. However, the accuracy of prediction using popular linear regression models is relatively low. We propose Supervised Contrastive Regression (SCR), a simple yet effective method that allows full supervision for contrastive learning in regression tasks. SCR performs supervised contrastive representation learning by using the absolute difference between continuous regression labels (i.e. neurocognitive scores) to determine positive and negative pairs. We apply SCR to analyze a large-scale dataset including multi-site harmonized diffusion MRI and neurocognitive data from 8735 participants in the Adolescent Brain Cognitive Development (ABCD) Study. We extract white matter microstructural measures using a fine parcellation of white matter tractography into fiber clusters. We predict three scores related to domains of higher-order cognition (general cognitive ability, executive function, and learning/memory). To identify important fiber clusters for prediction of these neurocognitive scores, we propose a permutation feature importance method for high-dimensional data. We find that SCR improves the accuracy of neurocognitive score prediction compared to other state-of-the-art methods. We find that the most predictive fiber clusters are predominantly located within the superficial white matter and projection tracts, particularly the superficial frontal white matter and striato-frontal connections. Overall, our results demonstrate the utility of contrastive representation learning methods for regression, and in particular for improving neuroimaging-based prediction of higher-order cognitive abilities.

White Matter Tracts are Point Clouds: Neuropsychological Score Prediction and Critical Region Localization via Geometric Deep Learning

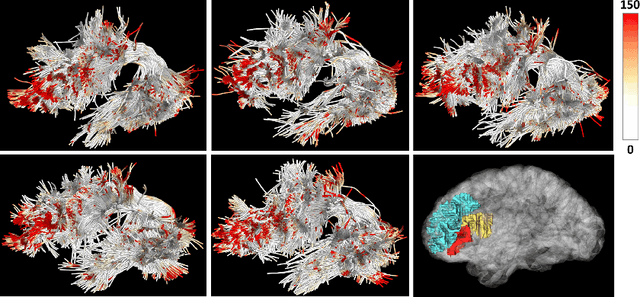

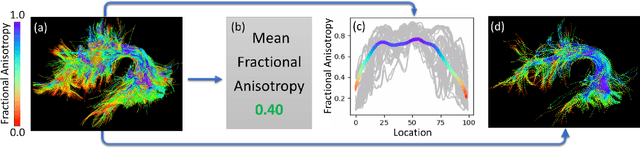

White matter tract microstructure has been shown to influence neuropsychological scores of cognitive performance. However, prediction of these scores from white matter tract data has not been attempted. In this paper, we propose a deep-learning-based framework for neuropsychological score prediction using microstructure measurements estimated from diffusion magnetic resonance imaging (dMRI) tractography, focusing on predicting performance on a receptive vocabulary assessment task based on a critical fiber tract for language, the arcuate fasciculus (AF). We directly utilize information from all points in a fiber tract, without the need to average data along the fiber as is traditionally required by diffusion MRI tractometry methods. Specifically, we represent the AF as a point cloud with microstructure measurements at each point, enabling adoption of point-based neural networks. We improve prediction performance with the proposed Paired-Siamese Loss that utilizes information about differences between continuous neuropsychological scores. Finally, we propose a Critical Region Localization (CRL) algorithm to localize informative anatomical regions containing points with strong contributions to the prediction results. Our method is evaluated on data from 806 subjects from the Human Connectome Project dataset. Results demonstrate superior neuropsychological score prediction performance compared to baseline methods. We discover that critical regions in the AF are strikingly consistent across subjects, with the highest number of strongly contributing points located in frontal cortical regions (i.e., the rostral middle frontal, pars opercularis, and pars triangularis), which are strongly implicated as critical areas for language processes.
