Evasive Hardware Trojan through Adversarial Power Trace

The globalization of the Integrated Circuit (IC) supply chain, driven by time-to-market and cost considerations, has made ICs vulnerable to hardware Trojans (HTs). Against this threat, a promising approach is to use Machine Learning (ML)-based side-channel analysis, which has the advantage of being a non-intrusive method, along with efficiently detecting HTs under golden chip-free settings. In this paper, we question the trustworthiness of ML-based HT detection via side-channel analysis. We introduce a HT obfuscation (HTO) approach to allow HTs to bypass this detection method. Rather than theoretically misleading the model by simulated adversarial traces, a key aspect of our approach is the design and implementation of adversarial noise as part of the circuitry, alongside the HT. We detail HTO methodologies for ASICs and FPGAs, and evaluate our approach using TrustHub benchmark. Interestingly, we found that HTO can be implemented with only a single transistor for ASIC designs to generate adversarial power traces that can fool the defense with 100% efficiency. We also efficiently implemented our approach on a Spartan 6 Xilinx FPGA using 2 different variants: (i) DSP slices-based, and (ii) ring-oscillator-based design. Additionally, we assess the efficiency of countermeasures like spectral domain analysis, and we show that an adaptive attacker can still design evasive HTOs by constraining the design with a spectral noise budget. In addition, while adversarial training (AT) offers higher protection against evasive HTs, AT models suffer from a considerable utility loss, potentially rendering them unsuitable for such security application. We believe this research represents a significant step in understanding and exploiting ML vulnerabilities in a hardware security context, and we make all resources and designs openly available online: https://dev.d18uu4lqwhbmka.amplifyapp.com

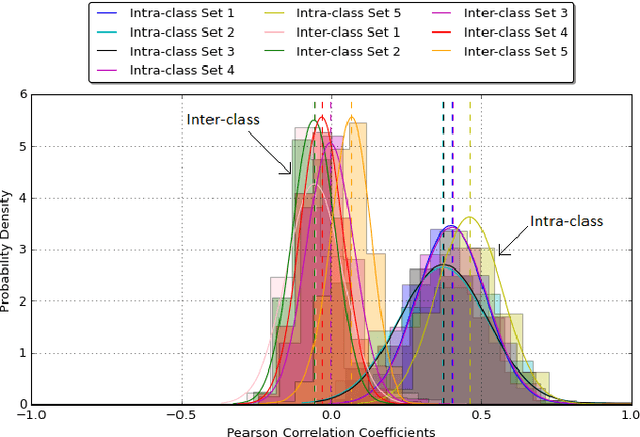

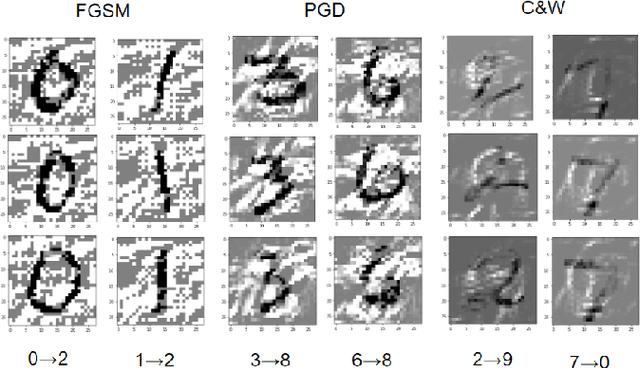

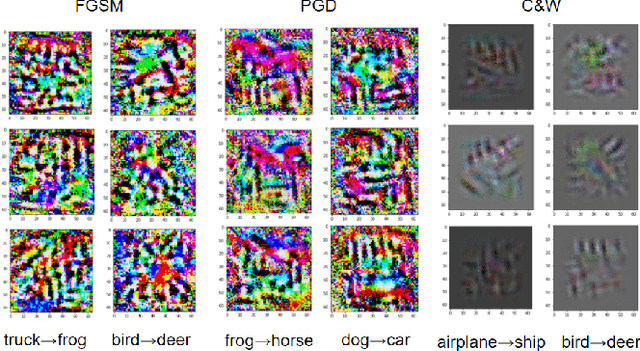

ROOM: Adversarial Machine Learning Attacks Under Real-Time Constraints

Advances in deep learning have enabled a wide range of promising applications. However, these systems are vulnerable to Adversarial Machine Learning (AML) attacks; adversarially crafted perturbations to their inputs could cause them to misclassify. Several state-of-the-art adversarial attacks have demonstrated that they can reliably fool classifiers making these attacks a significant threat. Adversarial attack generation algorithms focus primarily on creating successful examples while controlling the noise magnitude and distribution to make detection more difficult. The underlying assumption of these attacks is that the adversarial noise is generated offline, making their execution time a secondary consideration. However, recently, just-in-time adversarial attacks where an attacker opportunistically generates adversarial examples on the fly have been shown to be possible. This paper introduces a new problem: how do we generate adversarial noise under real-time constraints to support such real-time adversarial attacks? Understanding this problem improves our understanding of the threat these attacks pose to real-time systems and provides security evaluation benchmarks for future defenses. Therefore, we first conduct a run-time analysis of adversarial generation algorithms. Universal attacks produce a general attack offline, with no online overhead, and can be applied to any input; however, their success rate is limited because of their generality. In contrast, online algorithms, which work on a specific input, are computationally expensive, making them inappropriate for operation under time constraints. Thus, we propose ROOM, a novel Real-time Online-Offline attack construction Model where an offline component serves to warm up the online algorithm, making it possible to generate highly successful attacks under time constraints.

Stochastic-HMDs: Adversarial Resilient Hardware Malware Detectors through Voltage Over-scaling

Machine learning-based hardware malware detectors (HMDs) offer a potential game changing advantage in defending systems against malware. However, HMDs suffer from adversarial attacks, can be effectively reverse-engineered and subsequently be evaded, allowing malware to hide from detection. We address this issue by proposing a novel HMDs (Stochastic-HMDs) through approximate computing, which makes HMDs' inference computation-stochastic, thereby making HMDs resilient against adversarial evasion attacks. Specifically, we propose to leverage voltage overscaling to induce stochastic computation in the HMDs model. We show that such a technique makes HMDs more resilient to both black-box adversarial attack scenarios, i.e., reverse-engineering and transferability. Our experimental results demonstrate that Stochastic-HMDs offer effective defense against adversarial attacks along with by-product power savings, without requiring any changes to the hardware/software nor to the HMDs' model, i.e., no retraining or fine tuning is needed. Moreover, based on recent results in probably approximately correct (PAC) learnability theory, we show that Stochastic-HMDs are provably more difficult to reverse engineer.

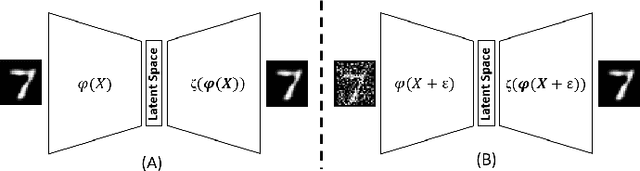

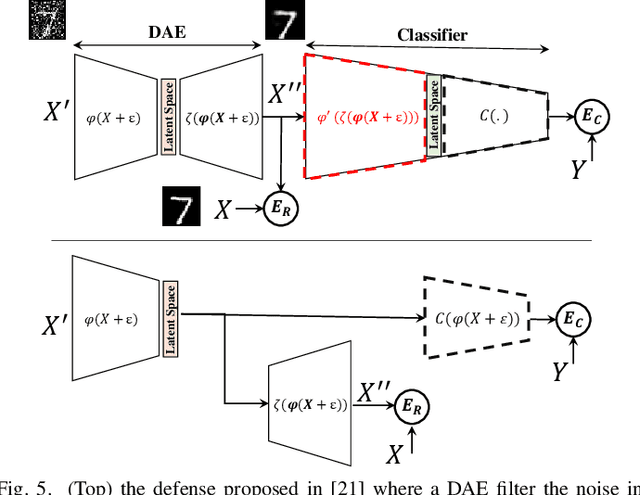

Code-Bridged Classifier : A Low or Negative Overhead Defense for Making a CNN Classifier Robust Against Adversarial Attacks

In this paper, we propose Code-Bridged Classifier (CBC), a framework for making a Convolutional Neural Network (CNNs) robust against adversarial attacks without increasing or even by decreasing the overall models' computational complexity. More specifically, we propose a stacked encoder-convolutional model, in which the input image is first encoded by the encoder module of a denoising auto-encoder, and then the resulting latent representation (without being decoded) is fed to a reduced complexity CNN for image classification. We illustrate that this network not only is more robust to adversarial examples but also has a significantly lower computational complexity when compared to the prior art defenses.
