Towards Video Codec Performance Evaluation: A Rate-Energy-Distortion Perspective

The Bj{\o}ntegaard Delta rate (BD-rate) objectively assesses the coding efficiency of video codecs using the rate-distortion (R-D) performance but overlooks encoding energy, which is crucial in practical applications, especially for those on handheld devices. Although R-D analysis can be extended to incorporate encoding energy as energy-distortion (E-D), it fails to integrate all three parameters seamlessly. This work proposes a novel approach to address this limitation by introducing a 3D representation of rate, encoding energy, and distortion through surface fitting. In addition, we evaluate various surface fitting techniques based on their accuracy and investigate the proposed 3D representation and its projections. The overlapping areas in projections help in encoder selection and recommend avoiding the slow presets of the older encoders (x264, x265), as the recent encoders (x265, VVenC) offer higher quality for the same bitrate-energy performance and provide a lower rate for the same energy-distortion performance.

The Bjøntegaard Bible -- Why your Way of Comparing Video Codecs May Be Wrong

In this paper, we provide an in-depth assessment on the Bj{\o}ntegaard Delta. We construct a large data set of video compression performance comparisons using a diverse set of metrics including PSNR, VMAF, bitrate, and processing energies. These metrics are evaluated for visual data types such as classic perspective video, 360{\deg} video, point clouds, and screen content. As compression technology, we consider multiple hybrid video codecs as well as state-of-the-art neural network based compression methods. Using additional performance points inbetween standard points defined by parameters such as the quantization parameter, we assess the interpolation error of the Bj{\o}ntegaard-Delta (BD) calculus and its impact on the final BD value. Performing an in-depth analysis, we find that the BD calculus is most accurate in the standard application of rate-distortion comparisons with mean errors below 0.5 percentage points. For other applications, the errors are higher (up to 10 percentage points), but can be reduced by a higher number of performance points. We finally come up with recommendations on how to use the BD calculus such that the validity of the resulting BD-values is maximized. Main recommendations include the use of Akima interpolation, the interpretation of relative difference curves, and the use of the logarithmic domain for saturating metrics such as SSIM and VMAF.

A Bit Stream Feature-Based Energy Estimator for HEVC Software Encoding

The total energy consumption of today's video coding systems is globally significant and emphasizes the need for sustainable video coder applications. To develop such sustainable video coders, the knowledge of the energy consumption of state-of-the-art video coders is necessary. For that purpose, we need a dedicated setup that measures the energy of the encoding and decoding system. However, such measurements are costly and laborious. To this end, this paper presents an energy estimator that uses a subset of bit stream features to accurately estimate the energy consumption of the HEVC software encoding process. The proposed model reaches a mean estimation error of 4.88% when averaged over presets of the x265 encoder implementation. The results from this work help to identify properties of encoding energy-saving bit streams and, in turn, are useful for developing new energy-efficient video coding algorithms.

Matched Quality Evaluation of Temporally Downsampled Videos with Non-Integer Factors

Recent research has shown that temporal downsampling of high-frame-rate sequences can be exploited to improve the rate-distortion performance in video coding. However, until now, research only targeted downsampling factors of powers of two, which greatly restricts the potential applicability of temporal downsampling. A major reason is that traditional, objective quality metrics such as peak signal-to-noise ratio or more recent approaches, which try to mimic subjective quality, can only be evaluated between two sequences whose frame rate ratio is an integer value. To relieve this problem, we propose a quality evaluation method that allows calculating the distortion between two sequences whose frame rate ratio is fractional. The proposed method can be applied to any full-reference quality metric.

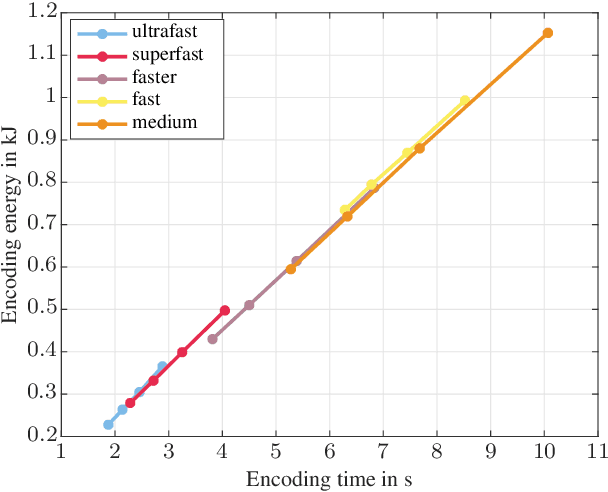

Modeling the HEVC Encoding Energy Using the Encoder Processing Time

The global significance of energy consumption of video communication renders research on the energy need of video coding an important task. To do so, usually, a dedicated setup is needed that measures the energy of the encoding and decoding system. However, such measurements are costly and complex. To this end, this paper presents the results of an exhaustive measurement series using the x265 encoder implementation of HEVC and analyzes the relation between encoding time and encoding energy. Finally, we introduce a simple encoding energy estimation model which employs the encoding time of a lightweight encoding process to estimate the encoding energy of complex encoding configurations. The proposed model reaches a mean estimation error of 11.35% when averaged over all presets. The results from this work are useful when the encoding energy estimate is required to develop new energy-efficient video compression algorithms.

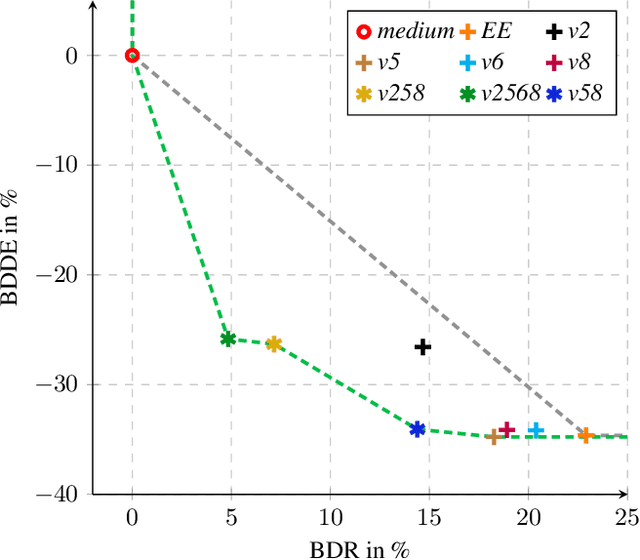

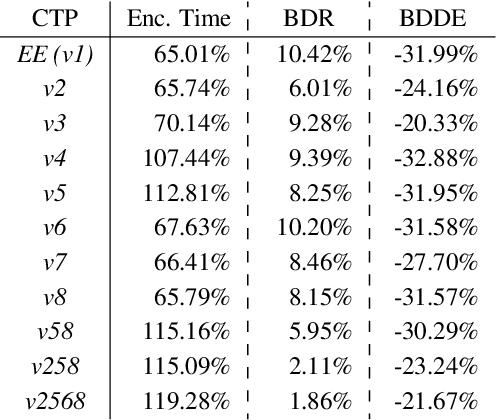

Optimized Decoding-Energy-Aware Encoding in Practical VVC Implementations

The optimization of the energy demand is crucial for modern video codecs. Previous studies show that the energy demand of VVC decoders can be improved by more than 50% if specific coding tools are disabled in the encoder. However, those approaches increase the bit rate by over 20% if the concept is applied to practical encoder implementations such as VVenC. Therefore, in this work, we investigate VVenC and study possibilities to reduce the additional bit rate, while still achieving low-energy decoding at reasonable encoding times. We show that encoding using our proposed coding tool profiles, the decoding energy efficiency is improved by over 25% with a bit rate increase of less than 5% with respect to standard encoding. Furthermore, we propose a second coding tool profile targeting maximum energy savings, which achieves 34% of energy savings at bitrate increases below 15%.
