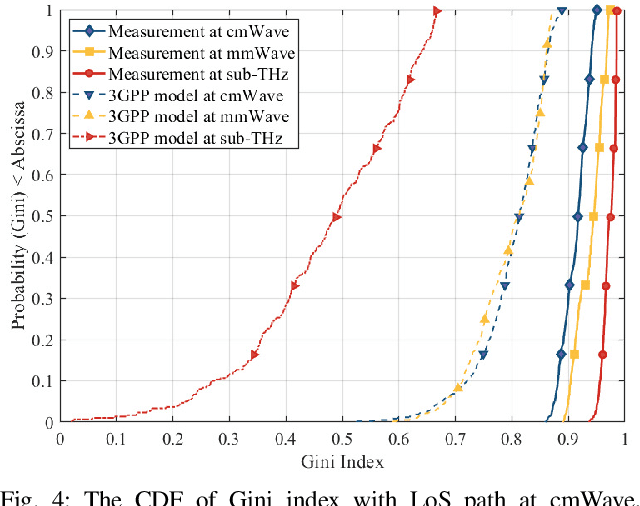

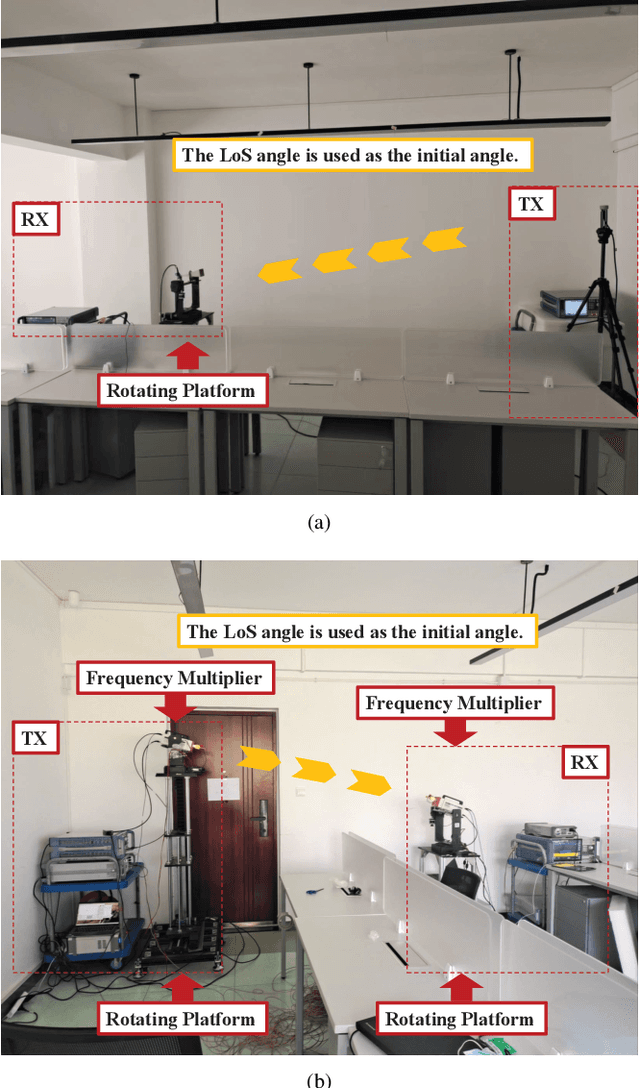

Abstract:In this paper, the level of sparsity is examined at 6, 26, and 132 GHz carrier frequencies by conducting channel measurements in an indoor office environment. By using the Gini index (value between 0 and 1) as a metric for characterizing sparsity, we show that increasing carrier frequency leads to increased levels of sparsity. The measured channel impulse responses are used to derive a Third-Generation Partnership Project (3GPP)-style propagation model, used to calculate the Gini index for the comparison of the channel sparsity between the measurement and simulation based on the 3GPP model. Our results show that the mean value of the Gini index in measurement is over twice the value in simulation, implying that the 3GPP channel model does not capture the effects of sparsity in the delay domain as frequency increases. In addition, a new intra-cluster power allocation model based on measurements is proposed to characterize the effects of sparsity in the delay domain of the 3GPP channel model. The accuracy of the proposed model is analyzed using theoretical derivations and simulations. Using the derived intra-cluster power allocation model, the mean value of the Gini index is 0.97, while the spread of variability is restricted to 0.01, demonstrating that the proposed model is suitable for 3GPP-type channels. To our best knowledge, this paper is the first to perform measurements and analysis at three different frequencies for the evaluation of channel sparsity in the same environment.
Abstract:Since the introduction of fifth-generation new radio (5G-NR) in Third Generation Partnership Project (3GPP) Release 15, swift progress has been made to evolve 5G with 3GPP Release 18 emerging. A critical aspect is the design of massive multiple-input multiple-output (MIMO) technology. In this line, this paper makes several important contributions: We provide a comprehensive overview of the evolution of standardized massive MIMO features from 3GPP Release 15 to 17 for both time/frequency-division duplex operation across bands FR-1 and FR-2. We analyze the progress on channel state information (CSI) frameworks, beam management frameworks and present enhancements for uplink CSI. We shed light on emerging 3GPP Release 18 problems requiring imminent attention. These include advanced codebook design and sounding reference signal design for coherent joint transmission (CJT) with multiple transmission/reception points (multi- TRPs). We discuss advancements in uplink demodulation reference signal design, enhancements for mobility to provide accurate CSI estimates, and unified transmission configuration indicator framework tailored for FR-2 bands. For each concept, we provide system level simulation results to highlight their performance benefits. Via field trials in an outdoor environment at Shanghai Jiaotong University, we demonstrate the gains of multi-TRP CJT relative to single TRP at 3.7 GHz.
