Fine-grained subjective visual quality assessment for high-fidelity compressed images

Advances in image compression, storage, and display technologies have made high-quality images and videos widely accessible. At this level of quality, distinguishing between compressed and original content becomes difficult, highlighting the need for assessment methodologies that are sensitive to even the smallest visual quality differences. Conventional subjective visual quality assessments often use absolute category rating scales, ranging from ``excellent'' to ``bad''. While suitable for evaluating more pronounced distortions, these scales are inadequate for detecting subtle visual differences. The JPEG standardization project AIC is currently developing a subjective image quality assessment methodology for high-fidelity images. This paper presents the proposed assessment methods, a dataset of high-quality compressed images, and their corresponding crowdsourced visual quality ratings. It also outlines a data analysis approach that reconstructs quality scale values in just noticeable difference (JND) units. The assessment method uses boosting techniques on visual stimuli to help observers detect compression artifacts more clearly. This is followed by a rescaling process that adjusts the boosted quality values back to the original perceptual scale. This reconstruction yields a fine-grained, high-precision quality scale in JND units, providing more informative results for practical applications. The dataset and code to reproduce the results will be available at https://github.com/jpeg-aic/dataset-BTC-PTC-24.

Relaxed forced choice improves performance of visual quality assessment methods

In image quality assessment, a collective visual quality score for an image or video is obtained from the individual ratings of many subjects. One commonly used format for these experiments is the two-alternative forced choice method. Two stimuli with the same content but differing visual quality are presented sequentially or side-by-side. Subjects are asked to select the one of better quality, and when uncertain, they are required to guess. The relaxed alternative forced choice format aims to reduce the cognitive load and the noise in the responses due to the guessing by providing a third response option, namely, ``not sure''. This work presents a large and comprehensive crowdsourcing experiment to compare these two response formats: the one with the ``not sure'' option and the one without it. To provide unambiguous ground truth for quality evaluation, subjects were shown pairs of images with differing numbers of dots and asked each time to choose the one with more dots. Our crowdsourcing study involved 254 participants and was conducted using a within-subject design. Each participant was asked to respond to 40 pair comparisons with and without the ``not sure'' response option and completed a questionnaire to evaluate their cognitive load for each testing condition. The experimental results show that the inclusion of the ``not sure'' response option in the forced choice method reduced mental load and led to models with better data fit and correspondence to ground truth. We also tested for the equivalence of the models and found that they were different. The dataset is available at http://database.mmsp-kn.de/cogvqa-database.html.

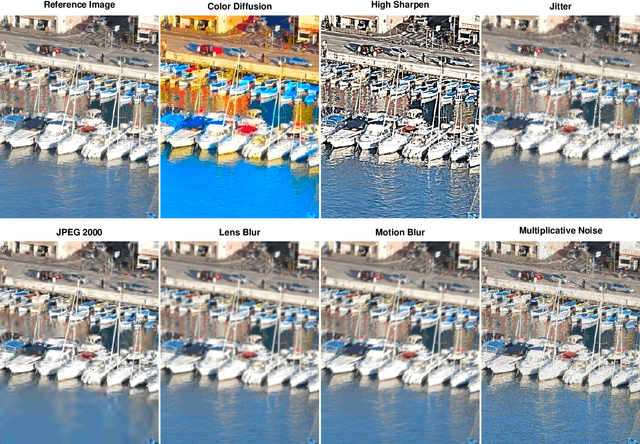

Subjective Image Quality Assessment with Boosted Triplet Comparisons

In subjective full-reference image quality assessment, differences between perceptual image qualities of the reference image and its distorted versions are evaluated, often using degradation category ratings (DCR). However, the DCR has been criticized since differences between rating categories on this ordinal scale might not be perceptually equidistant, and observers may have different understandings of the categories. Pair comparisons (PC) of distorted images, followed by Thurstonian reconstruction of scale values, overcome these problems. In addition, PC is more sensitive than DCR, and it can provide scale values in fractional, just noticeable difference (JND) units that express a precise perceptional interpretation. Still, the comparison of images of nearly the same quality can be difficult. We introduce boosting techniques embedded in more general triplet comparisons (TC) that increase the sensitivity even more. Boosting amplifies the artefacts of distorted images, enlarges their visual representation by zooming, increases the visibility of the distortions by a flickering effect, or combines some of the above. Experimental results show the effectiveness of boosted TC for seven types of distortion. We crowdsourced over 1.7 million responses to triplet questions. A detailed analysis shows that boosting increases the discriminatory power and allows to reduce the number of subjective ratings without sacrificing the accuracy of the resulting relative image quality values. Our technique paves the way to fine-grained image quality datasets, allowing for more distortion levels, yet with high-quality subjective annotations. We also provide the details for Thurstonian scale reconstruction from TC and our annotated dataset, KonFiG-IQA, containing 10 source images, processed using 7 distortion types at 12 or even 30 levels, uniformly spaced over a span of 3 JND units.
