Subjective Image Quality Assessment with Boosted Triplet Comparisons

In subjective full-reference image quality assessment, differences between perceptual image qualities of the reference image and its distorted versions are evaluated, often using degradation category ratings (DCR). However, the DCR has been criticized since differences between rating categories on this ordinal scale might not be perceptually equidistant, and observers may have different understandings of the categories. Pair comparisons (PC) of distorted images, followed by Thurstonian reconstruction of scale values, overcome these problems. In addition, PC is more sensitive than DCR, and it can provide scale values in fractional, just noticeable difference (JND) units that express a precise perceptional interpretation. Still, the comparison of images of nearly the same quality can be difficult. We introduce boosting techniques embedded in more general triplet comparisons (TC) that increase the sensitivity even more. Boosting amplifies the artefacts of distorted images, enlarges their visual representation by zooming, increases the visibility of the distortions by a flickering effect, or combines some of the above. Experimental results show the effectiveness of boosted TC for seven types of distortion. We crowdsourced over 1.7 million responses to triplet questions. A detailed analysis shows that boosting increases the discriminatory power and allows to reduce the number of subjective ratings without sacrificing the accuracy of the resulting relative image quality values. Our technique paves the way to fine-grained image quality datasets, allowing for more distortion levels, yet with high-quality subjective annotations. We also provide the details for Thurstonian scale reconstruction from TC and our annotated dataset, KonFiG-IQA, containing 10 source images, processed using 7 distortion types at 12 or even 30 levels, uniformly spaced over a span of 3 JND units.

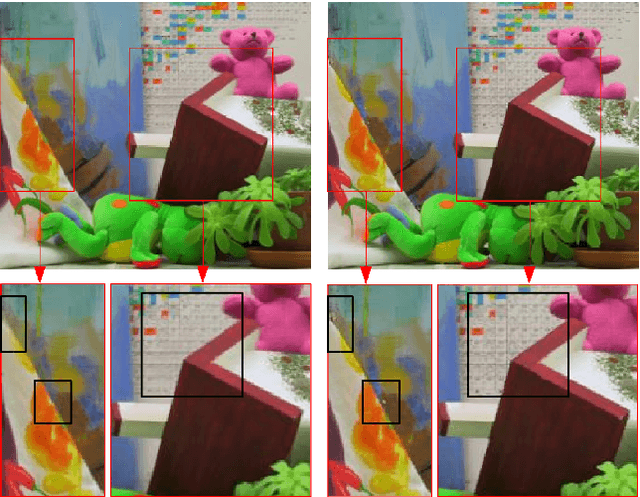

Subjective Annotation for a Frame Interpolation Benchmark using Artifact Amplification

Current benchmarks for optical flow algorithms evaluate the estimation either directly by comparing the predicted flow fields with the ground truth or indirectly by using the predicted flow fields for frame interpolation and then comparing the interpolated frames with the actual frames. In the latter case, objective quality measures such as the mean squared error are typically employed. However, it is well known that for image quality assessment, the actual quality experienced by the user cannot be fully deduced from such simple measures. Hence, we conducted a subjective quality assessment crowdscouring study for the interpolated frames provided by one of the optical flow benchmarks, the Middlebury benchmark. It contains interpolated frames from 155 methods applied to each of 8 contents. We collected forced choice paired comparisons between interpolated images and corresponding ground truth. To increase the sensitivity of observers when judging minute difference in paired comparisons we introduced a new method to the field of full-reference quality assessment, called artifact amplification. From the crowdsourcing data we reconstructed absolute quality scale values according to Thurstone's model. As a result, we obtained a re-ranking of the 155 participating algorithms w.r.t. the visual quality of the interpolated frames. This re-ranking not only shows the necessity of visual quality assessment as another evaluation metric for optical flow and frame interpolation benchmarks, the results also provide the ground truth for designing novel image quality assessment (IQA) methods dedicated to perceptual quality of interpolated images. As a first step, we proposed such a new full-reference method, called WAE-IQA. By weighing the local differences between an interpolated image and its ground truth WAE-IQA performed slightly better than the currently best FR-IQA approach from the literature.

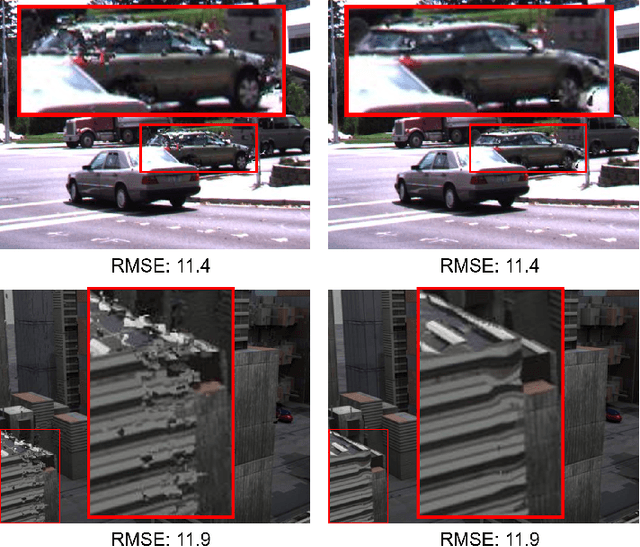

Technical Report on Visual Quality Assessment for Frame Interpolation

Current benchmarks for optical flow algorithms evaluate the estimation quality by comparing their predicted flow field with the ground truth, and additionally may compare interpolated frames, based on these predictions, with the correct frames from the actual image sequences. For the latter comparisons, objective measures such as mean square errors are applied. However, for applications like image interpolation, the expected user's quality of experience cannot be fully deduced from such simple quality measures. Therefore, we conducted a subjective quality assessment study by crowdsourcing for the interpolated images provided in one of the optical flow benchmarks, the Middlebury benchmark. We used paired comparisons with forced choice and reconstructed absolute quality scale values according to Thurstone's model using the classical least squares method. The results give rise to a re-ranking of 141 participating algorithms w.r.t. visual quality of interpolated frames mostly based on optical flow estimation. Our re-ranking result shows the necessity of visual quality assessment as another evaluation metric for optical flow and frame interpolation benchmarks.
