Entropy Bootstrapping for Weakly Supervised Nuclei Detection

Microscopy structure segmentation, such as detecting cells or nuclei, generally requires a human to draw a ground truth contour around each instance. Weakly supervised approaches (e.g. consisting of only single point labels) have the potential to reduce this workload significantly. Our approach uses individual point labels for an entropy estimation to approximate an underlying distribution of cell pixels. We infer full cell masks from this distribution, and use Mask-RCNN to produce an instance segmentation output. We compare this point--annotated approach with training on the full ground truth masks. We show that our method achieves a comparatively good level of performance, despite a 95% reduction in pixel labels.

Parallel Watershed Partitioning: GPU-Based Hierarchical Image Segmentation

Many image processing applications rely on partitioning an image into disjoint regions whose pixels are 'similar.' The watershed and waterfall transforms are established mathematical morphology pixel clustering techniques. They are both relevant to modern applications where groups of pixels are to be decided upon in one go, or where adjacency information is relevant. We introduce three new parallel partitioning algorithms for GPUs. By repeatedly applying watershed algorithms, we produce waterfall results which form a hierarchy of partition regions over an input image. Our watershed algorithms attain competitive execution times in both 2D and 3D, processing an 800 megavoxel image in less than 1.4 sec. We also show how to use this fully deterministic image partitioning as a pre-processing step to machine learning based semantic segmentation. This replaces the role of superpixel algorithms, and results in comparable accuracy and faster training times.

Optimising for the Unknown: Domain Alignment for Cephalometric Landmark Detection

Cephalometric Landmark Detection is the process of identifying key areas for cephalometry. Each landmark is a single GT point labelled by a clinician. A machine learning model predicts the probability locus of a landmark represented by a heatmap. This work, for the 2024 CL-Detection MICCAI Challenge, proposes a domain alignment strategy with a regional facial extraction module and an X-ray artefact augmentation procedure. The challenge ranks our method's results as the best in MRE of 1.186mm and third in the 2mm SDR of 82.04% on the online validation leaderboard. The code is available at https://github.com/Julian-Wyatt/OptimisingfortheUnknown.

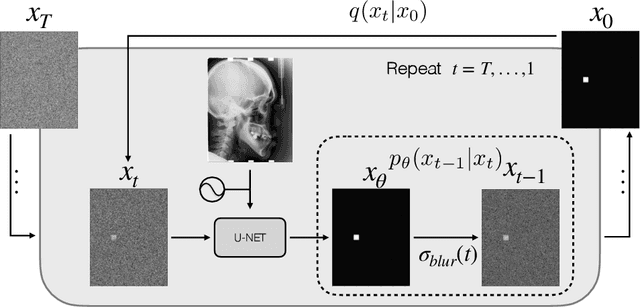

Salt & Pepper Heatmaps: Diffusion-informed Landmark Detection Strategy

Anatomical Landmark Detection is the process of identifying key areas of an image for clinical measurements. Each landmark is a single ground truth point labelled by a clinician. A machine learning model predicts the locus of a landmark as a probability region represented by a heatmap. Diffusion models have increased in popularity for generative modelling due to their high quality sampling and mode coverage, leading to their adoption in medical image processing for semantic segmentation. Diffusion modelling can be further adapted to learn a distribution over landmarks. The stochastic nature of diffusion models captures fluctuations in the landmark prediction, which we leverage by blurring into meaningful probability regions. In this paper, we reformulate automatic Anatomical Landmark Detection as a precise generative modelling task, producing a few-hot pixel heatmap. Our method achieves state-of-the-art MRE and comparable SDR performance with existing work.

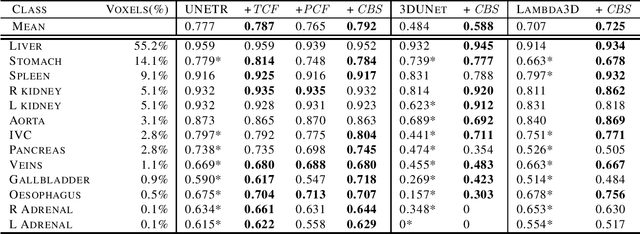

Runtime Freezing: Dynamic Class Loss for Multi-Organ 3D Segmentation

Segmentation has become a crucial pre-processing step to many refined downstream tasks, and particularly so in the medical domain. Even with recent improvements in segmentation models, many segmentation tasks remain difficult. When multiple organs are segmented simultaneously, difficulties are due not only to the limited availability of labelled data, but also to class imbalance. In this work we propose dynamic class-based loss strategies to mitigate the effects of highly imbalanced training data. We show how our approach improves segmentation performance on a challenging Multi-Class 3D Abdominal Organ dataset.

Infant hip screening using multi-class ultrasound scan segmentation

Developmental dysplasia of the hip (DDH) is a condition in infants where the femoral head is incorrectly located in the hip joint. We propose a deep learning algorithm for segmenting key structures within ultrasound images, employing this to calculate Femoral Head Coverage (FHC) and provide a screening diagnosis for DDH. To our knowledge, this is the first study to automate FHC calculation for DDH screening. Our algorithm outperforms the international state of the art, agreeing with expert clinicians on 89.8% of our test images.

Triple-View Feature Learning for Medical Image Segmentation

Deep learning models, e.g. supervised Encoder-Decoder style networks, exhibit promising performance in medical image segmentation, but come with a high labelling cost. We propose TriSegNet, a semi-supervised semantic segmentation framework. It uses triple-view feature learning on a limited amount of labelled data and a large amount of unlabeled data. The triple-view architecture consists of three pixel-level classifiers and a low-level shared-weight learning module. The model is first initialized with labelled data. Label processing, including data perturbation, confidence label voting and unconfident label detection for annotation, enables the model to train on labelled and unlabeled data simultaneously. The confidence of each model gets improved through the other two views of the feature learning. This process is repeated until each model reaches the same confidence level as its counterparts. This strategy enables triple-view learning of generic medical image datasets. Bespoke overlap-based and boundary-based loss functions are tailored to the different stages of the training. The segmentation results are evaluated on four publicly available benchmark datasets including Ultrasound, CT, MRI, and Histology images. Repeated experiments demonstrate the effectiveness of the proposed network compared against other semi-supervised algorithms, across a large set of evaluation measures.

Learning Underrepresented Classes from Decentralized Partially Labeled Medical Images

Using decentralized data for federated training is one promising emerging research direction for alleviating data scarcity in the medical domain. However, in contrast to large-scale fully labeled data commonly seen in general object recognition tasks, the local medical datasets are more likely to only have images annotated for a subset of classes of interest due to high annotation costs. In this paper, we consider a practical yet under-explored problem, where underrepresented classes only have few labeled instances available and only exist in a few clients of the federated system. We show that standard federated learning approaches fail to learn robust multi-label classifiers with extreme class imbalance and address it by proposing a novel federated learning framework, FedFew. FedFew consists of three stages, where the first stage leverages federated self-supervised learning to learn class-agnostic representations. In the second stage, the decentralized partially labeled data are exploited to learn an energy-based multi-label classifier for the common classes. Finally, the underrepresented classes are detected based on the energy and a prototype-based nearest-neighbor model is proposed for few-shot matching. We evaluate FedFew on multi-label thoracic disease classification tasks and demonstrate that it outperforms the federated baselines by a large margin.

Revisiting Vicinal Risk Minimization for Partially Supervised Multi-Label Classification Under Data Scarcity

Due to the high human cost of annotation, it is non-trivial to curate a large-scale medical dataset that is fully labeled for all classes of interest. Instead, it would be convenient to collect multiple small partially labeled datasets from different matching sources, where the medical images may have only been annotated for a subset of classes of interest. This paper offers an empirical understanding of an under-explored problem, namely partially supervised multi-label classification (PSMLC), where a multi-label classifier is trained with only partially labeled medical images. In contrast to the fully supervised counterpart, the partial supervision caused by medical data scarcity has non-trivial negative impacts on the model performance. A potential remedy could be augmenting the partial labels. Though vicinal risk minimization (VRM) has been a promising solution to improve the generalization ability of the model, its application to PSMLC remains an open question. To bridge the methodological gap, we provide the first VRM-based solution to PSMLC. The empirical results also provide insights into future research directions on partially supervised learning under data scarcity.

Federated Contrastive Learning for Decentralized Unlabeled Medical Images

A label-efficient paradigm in computer vision is based on self-supervised contrastive pre-training on unlabeled data followed by fine-tuning with a small number of labels. Making practical use of a federated computing environment in the clinical domain and learning on medical images poses specific challenges. In this work, we propose FedMoCo, a robust federated contrastive learning (FCL) framework, which makes efficient use of decentralized unlabeled medical data. FedMoCo has two novel modules: metadata transfer, an inter-node statistical data augmentation module, and self-adaptive aggregation, an aggregation module based on representational similarity analysis. To the best of our knowledge, this is the first FCL work on medical images. Our experiments show that FedMoCo can consistently outperform FedAvg, a seminal federated learning framework, in extracting meaningful representations for downstream tasks. We further show that FedMoCo can substantially reduce the amount of labeled data required in a downstream task, such as COVID-19 detection, to achieve a reasonable performance.
