Mixture of neural fields for heterogeneous reconstruction in cryo-EM

Cryo-electron microscopy (cryo-EM) is an experimental technique for protein structure determination that images an ensemble of macromolecules in near-physiological contexts. While recent advances enable the reconstruction of dynamic conformations of a single biomolecular complex, current methods do not adequately model samples with mixed conformational and compositional heterogeneity. In particular, datasets containing mixtures of multiple proteins require the joint inference of structure, pose, compositional class, and conformational states for 3D reconstruction. Here, we present Hydra, an approach that models both conformational and compositional heterogeneity fully ab initio by parameterizing structures as arising from one of K neural fields. We employ a new likelihood-based loss function and demonstrate the effectiveness of our approach on synthetic datasets composed of mixtures of proteins with large degrees of conformational variability. We additionally demonstrate Hydra on an experimental dataset of a cellular lysate containing a mixture of different protein complexes. Hydra expands the expressivity of heterogeneous reconstruction methods and thus broadens the scope of cryo-EM to increasingly complex samples.

Neural Spline Fields for Burst Image Fusion and Layer Separation

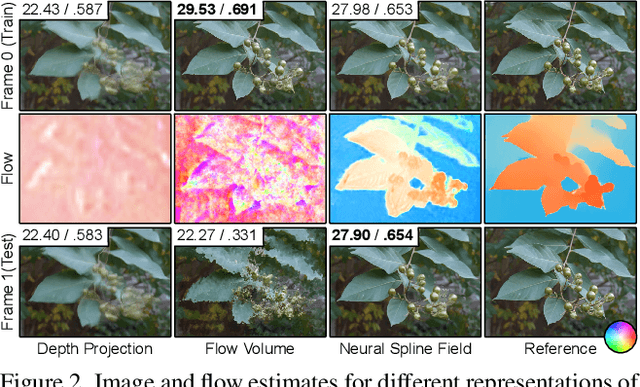

Each photo in an image burst can be considered a sample of a complex 3D scene: the product of parallax, diffuse and specular materials, scene motion, and illuminant variation. While decomposing all of these effects from a stack of misaligned images is a highly ill-conditioned task, the conventional align-and-merge burst pipeline takes the other extreme: blending them into a single image. In this work, we propose a versatile intermediate representation: a two-layer alpha-composited image plus flow model constructed with neural spline fields -- networks trained to map input coordinates to spline control points. Our method is able to, during test-time optimization, jointly fuse a burst image capture into one high-resolution reconstruction and decompose it into transmission and obstruction layers. Then, by discarding the obstruction layer, we can perform a range of tasks including seeing through occlusions, reflection suppression, and shadow removal. Validated on complex synthetic and in-the-wild captures we find that, with no post-processing steps or learned priors, our generalizable model is able to outperform existing dedicated single-image and multi-view obstruction removal approaches.

Renderers are Good Zero-Shot Representation Learners: Exploring Diffusion Latents for Metric Learning

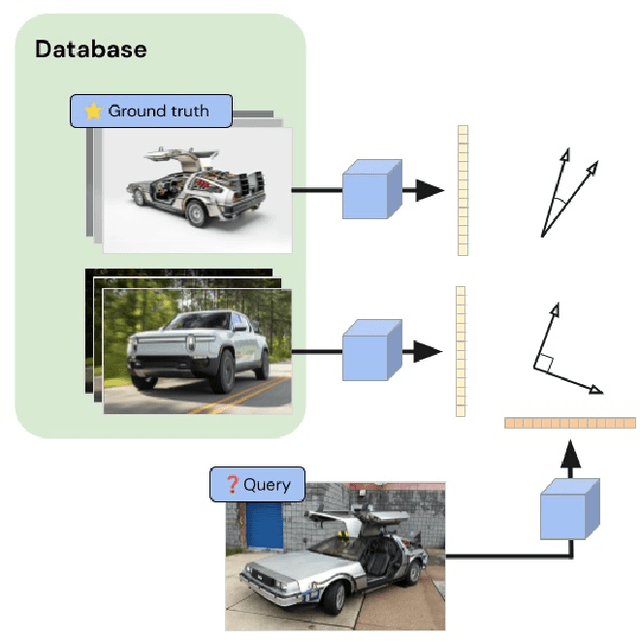

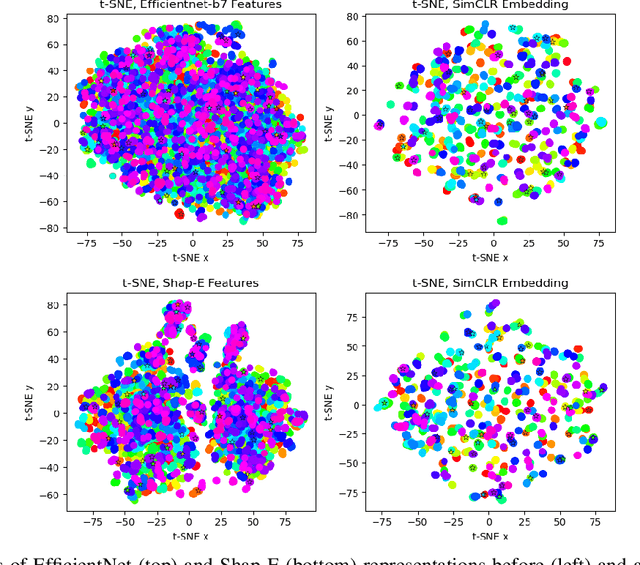

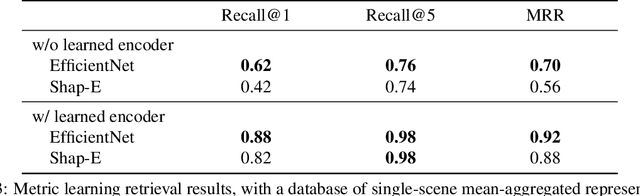

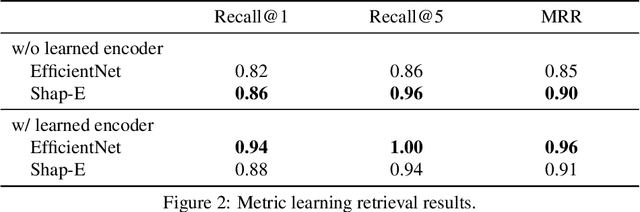

Can the latent spaces of modern generative neural rendering models serve as representations for 3D-aware discriminative visual understanding tasks? We use retrieval as a proxy for measuring the metric learning properties of the latent spaces of Shap-E, including capturing view-independence and enabling the aggregation of scene representations from the representations of individual image views, and find that Shap-E representations outperform those of the classical EfficientNet baseline representations zero-shot, and is still competitive when both methods are trained using a contrative loss. These findings give preliminary indication that 3D-based rendering and generative models can yield useful representations for discriminative tasks in our innately 3D-native world. Our code is available at \url{https://github.com/michaelwilliamtang/golden-retriever}.
