Abstract:In this paper, we investigate novel data collection and training techniques towards improving classification accuracy of non-moving (static) hand gestures using a convolutional neural network (CNN) and frequency-modulated-continuous-wave (FMCW) millimeter-wave (mmWave) radars. Recently, non-contact hand pose and static gesture recognition have received considerable attention in many applications ranging from human-computer interaction (HCI), augmented/virtual reality (AR/VR), and even therapeutic range of motion for medical applications. While most current solutions rely on optical or depth cameras, these methods require ideal lighting and temperature conditions. mmWave radar devices have recently emerged as a promising alternative offering low-cost system-on-chip sensors whose output signals contain precise spatial information even in non-ideal imaging conditions. Additionally, deep convolutional neural networks have been employed extensively in image recognition by learning both feature extraction and classification simultaneously. However, little work has been done towards static gesture recognition using mmWave radars and CNNs due to the difficulty involved in extracting meaningful features from the radar return signal, and the results are inferior compared with dynamic gesture classification. This article presents an efficient data collection approach and a novel technique for deep CNN training by introducing ``sterile'' images which aid in distinguishing distinct features among the static gestures and subsequently improve the classification accuracy. Applying the proposed data collection and training methods yields an increase in classification rate of static hand gestures from $85\%$ to $93\%$ and $90\%$ to $95\%$ for range and range-angle profiles, respectively.
Abstract:In this paper, we introduce an innovative super resolution approach to emerging modes of near-field synthetic aperture radar (SAR) imaging. Recent research extends convolutional neural network (CNN) architectures from the optical to the electromagnetic domain to achieve super resolution on images generated from radar signaling. Specifically, near-field synthetic aperture radar (SAR) imaging, a method for generating high-resolution images by scanning a radar across space to create a synthetic aperture, is of interest due to its high-fidelity spatial sensing capability, low cost devices, and large application space. Since SAR imaging requires large aperture sizes to achieve high resolution, super-resolution algorithms are valuable for many applications. Freehand smartphone SAR, an emerging sensing modality, requires irregular SAR apertures in the near-field and computation on mobile devices. Achieving efficient high-resolution SAR images from irregularly sampled data collected by freehand motion of a smartphone is a challenging task. In this paper, we propose a novel CNN architecture to achieve SAR image super-resolution for mobile applications by employing state-of-the-art SAR processing and deep learning techniques. The proposed algorithm is verified via simulation and an empirical study. Our algorithm demonstrates high-efficiency and high-resolution radar imaging for near-field scenarios with irregular scanning geometries.

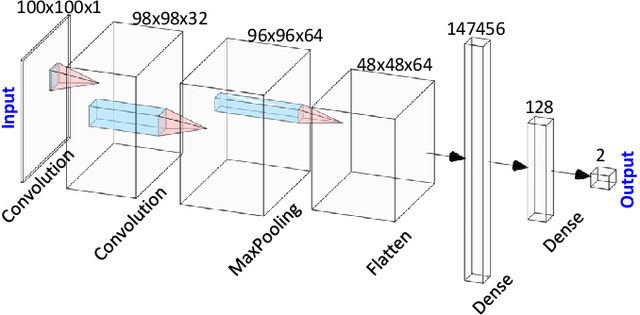

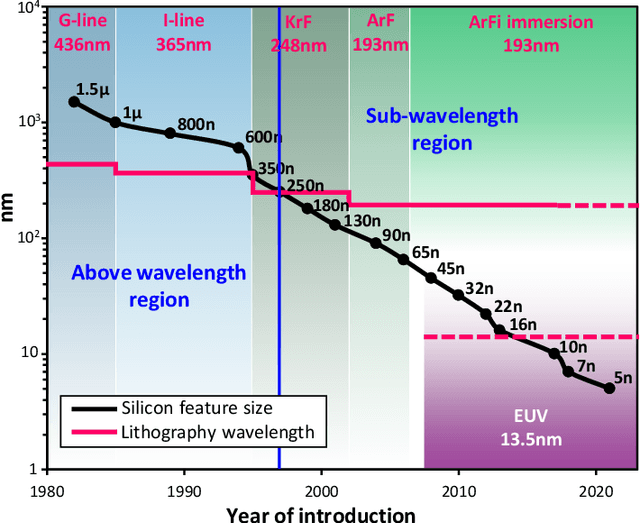

Abstract:Continuous technology scaling and the introduction of advanced technology nodes in Integrated Circuit (IC) fabrication is constantly exposing new manufacturability issues. One such issue, stemming from complex interaction between design and process, is the problem of design hotspots. Such hotspots are known to vary from design to design and, ideally, should be predicted early and corrected in the design stage itself, as opposed to relying on the foundry to develop process fixes for every hotspot, which would be intractable. In the past, various efforts have been made to address this issue by using a known database of hotspots as the source of information. The majority of these efforts use either Machine Learning (ML) or Pattern Matching (PM) techniques to identify and predict hotspots in new incoming designs. However, almost all of them suffer from high false-alarm rates, mainly because they are oblivious to the root causes of hotspots. In this work, we seek to address this limitation by using a novel database enhancement approach through synthetic pattern generation based on carefully crafted Design of Experiments (DOEs). Effectiveness of the proposed method against the state-of-the-art is evaluated on a 45nm process using industry-standard tools and designs.
Abstract:Deep learning (DL) offers potential improvements throughout the CAD tool-flow, one promising application being lithographic hotspot detection. However, DL techniques have been shown to be especially vulnerable to inference and training time adversarial attacks. Recent work has demonstrated that a small fraction of malicious physical designers can stealthily "backdoor" a DL-based hotspot detector during its training phase such that it accurately classifies regular layout clips but predicts hotspots containing a specially crafted trigger shape as non-hotspots. We propose a novel training data augmentation strategy as a powerful defense against such backdooring attacks. The defense works by eliminating the intentional biases introduced in the training data but does not require knowledge of which training samples are poisoned or the nature of the backdoor trigger. Our results show that the defense can drastically reduce the attack success rate from 84% to ~0%.
