Generating Images of the M87* Black Hole Using GANs

In this paper, we introduce a novel data augmentation methodology based on Conditional Progressive Generative Adversarial Networks (CPGAN) to generate diverse black hole (BH) images, accounting for variations in spin and electron temperature prescriptions. These generated images are valuable resources for training deep learning algorithms to accurately estimate black hole parameters from observational data. Our model can generate BH images for any spin value within the range of [-1, 1], given an electron temperature distribution. To validate the effectiveness of our approach, we employ a convolutional neural network to predict the BH spin using both the GRMHD images and the images generated by our proposed model. Our results demonstrate a significant performance improvement when training is conducted with the augmented dataset while testing is performed using GRMHD simulated data, as indicated by the high R2 score. Consequently, we propose that GANs can be employed as cost effective models for black hole image generation and reliably augment training datasets for other parameterization algorithms.

Reconstructing Video from Interferometric Measurements of Time-Varying Sources

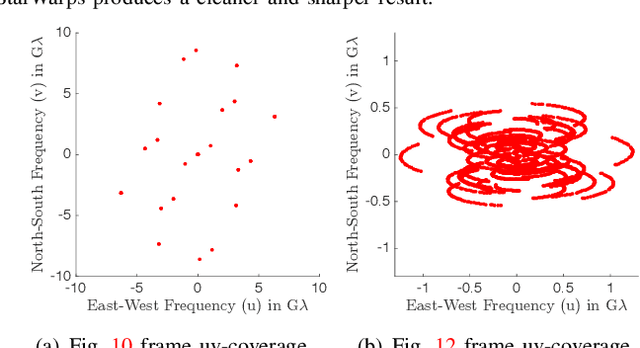

Very long baseline interferometry (VLBI) makes it possible to recover images of astronomical sources with extremely high angular resolution. Most recently, the Event Horizon Telescope (EHT) has extended VLBI to short millimeter wavelengths with a goal of achieving angular resolution sufficient for imaging the event horizons of nearby supermassive black holes. VLBI provides measurements related to the underlying source image through a sparse set spatial frequencies. An image can then be recovered from these measurements by making assumptions about the underlying image. One of the most important assumptions made by conventional imaging methods is that over the course of a night's observation the image is static. However, for quickly evolving sources, such as the galactic center's supermassive black hole (Sgr A*) targeted by the EHT, this assumption is violated and these conventional imaging approaches fail. In this work we propose a new way to model VLBI measurements that allows us to recover both the appearance and dynamics of an evolving source by reconstructing a video rather than a static image. By modeling VLBI measurements using a Gaussian Markov Model, we are able to propagate information across observations in time to reconstruct a video, while simultaneously learning about the dynamics of the source's emission region. We demonstrate our proposed Expectation-Maximization (EM) algorithm, StarWarps, on realistic synthetic observations of black holes, and show how it substantially improves results compared to conventional imaging algorithms. Additionally, we demonstrate StarWarps on real VLBI data of the M87 Jet from the VLBA.

Computational Imaging for VLBI Image Reconstruction

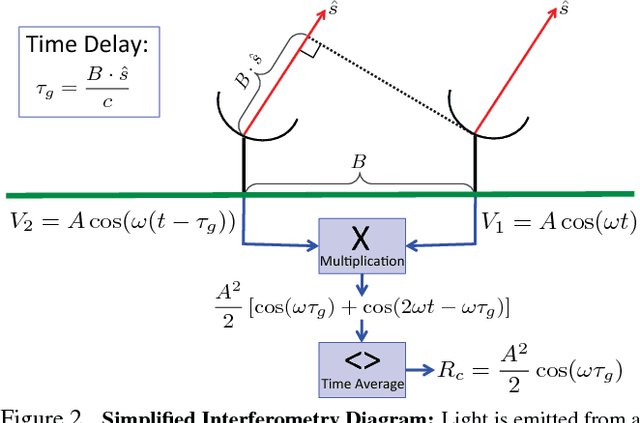

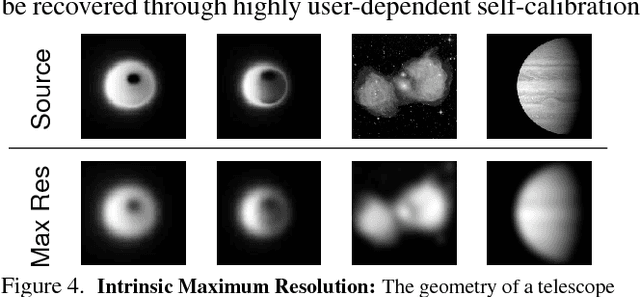

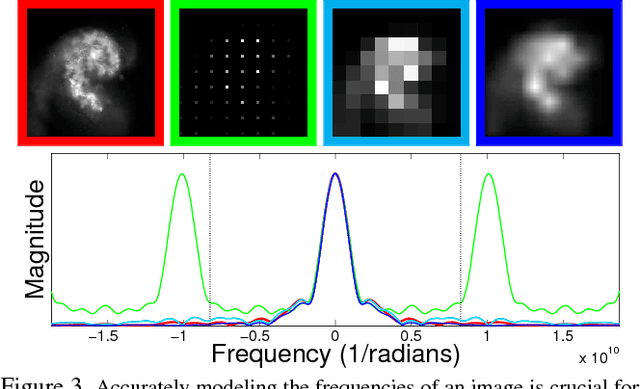

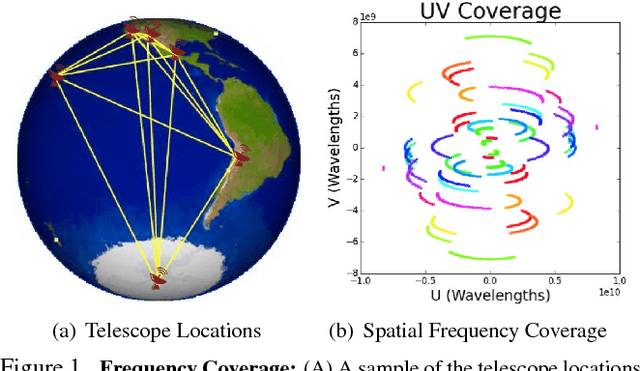

Very long baseline interferometry (VLBI) is a technique for imaging celestial radio emissions by simultaneously observing a source from telescopes distributed across Earth. The challenges in reconstructing images from fine angular resolution VLBI data are immense. The data is extremely sparse and noisy, thus requiring statistical image models such as those designed in the computer vision community. In this paper we present a novel Bayesian approach for VLBI image reconstruction. While other methods often require careful tuning and parameter selection for different types of data, our method (CHIRP) produces good results under different settings such as low SNR or extended emission. The success of our method is demonstrated on realistic synthetic experiments as well as publicly available real data. We present this problem in a way that is accessible to members of the community, and provide a dataset website (vlbiimaging.csail.mit.edu) that facilitates controlled comparisons across algorithms.
