G-FARS: Gradient-Field-based Auto-Regressive Sampling for 3D Part Grouping

This paper proposes a novel task named "3D part grouping". Suppose there is a mixed set containing scattered parts from various shapes. This task requires algorithms to find out every possible combination among all the parts. To address this challenge, we propose the so called Gradient Field-based Auto-Regressive Sampling framework (G-FARS) tailored specifically for the 3D part grouping task. In our framework, we design a gradient-field-based selection graph neural network (GNN) to learn the gradients of a log conditional probability density in terms of part selection, where the condition is the given mixed part set. This innovative approach, implemented through the gradient-field-based selection GNN, effectively captures complex relationships among all the parts in the input. Upon completion of the training process, our framework becomes capable of autonomously grouping 3D parts by iteratively selecting them from the mixed part set, leveraging the knowledge acquired by the trained gradient-field-based selection GNN. Our code is available at: https://github.com/J-F-Cheng/G-FARS-3DPartGrouping.

Score-PA: Score-based 3D Part Assembly

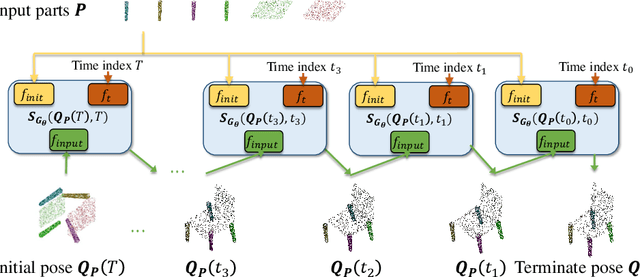

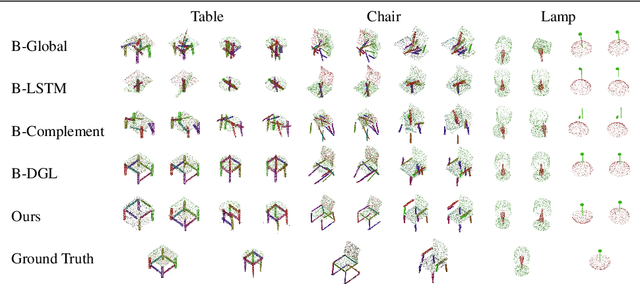

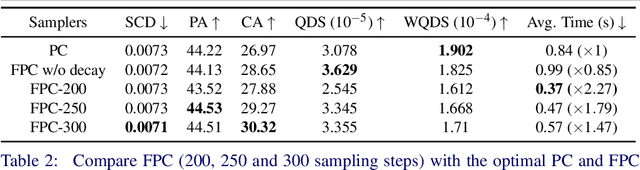

Autonomous 3D part assembly is a challenging task in the areas of robotics and 3D computer vision. This task aims to assemble individual components into a complete shape without relying on predefined instructions. In this paper, we formulate this task from a novel generative perspective, introducing the Score-based 3D Part Assembly framework (Score-PA) for 3D part assembly. Knowing that score-based methods are typically time-consuming during the inference stage. To address this issue, we introduce a novel algorithm called the Fast Predictor-Corrector Sampler (FPC) that accelerates the sampling process within the framework. We employ various metrics to assess assembly quality and diversity, and our evaluation results demonstrate that our algorithm outperforms existing state-of-the-art approaches. We release our code at https://github.com/J-F-Cheng/Score-PA_Score-based-3D-Part-Assembly.
