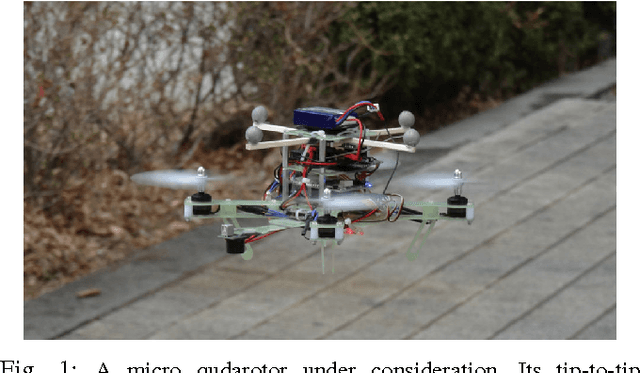

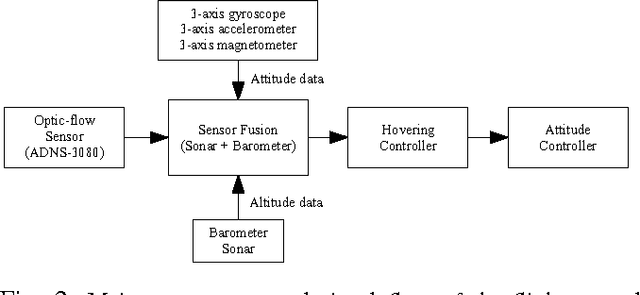

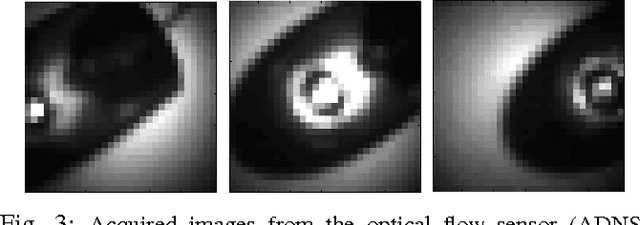

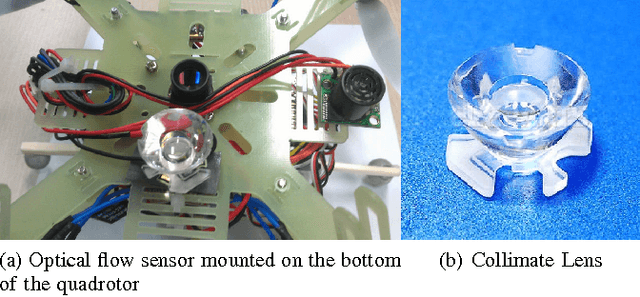

Abstract:This paper considers onboard control of a small-sized quadrotor using a strapdown embedded optical flow sensor which is conventionally used for desktop mice. The vehicle considered in this paper can carry only few dozen grams of payload, therefore conventional camera-based optical flow methods are not applicable. We present hovering control of the small-sized quadrotor using a single-chip optical flow sensor, implemented on an 8-bit microprocessor without external sensors or communication with a ground control station. Detailed description of all the system components is provided along with evaluation of the accuracy. Experimental results from flight tests are validated with the ground-truth data provided by a high-accuracy reference system.

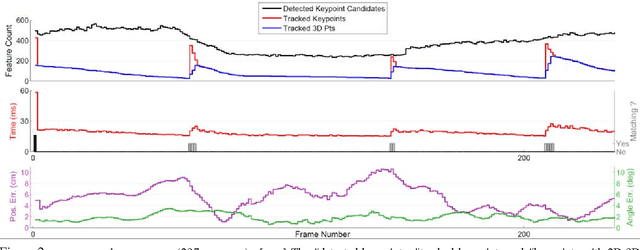

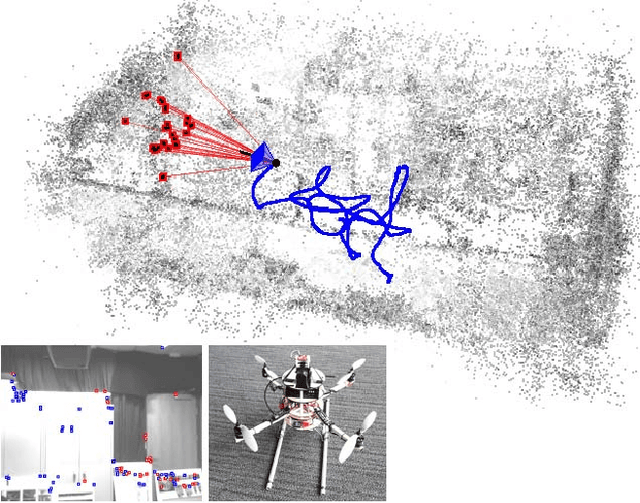

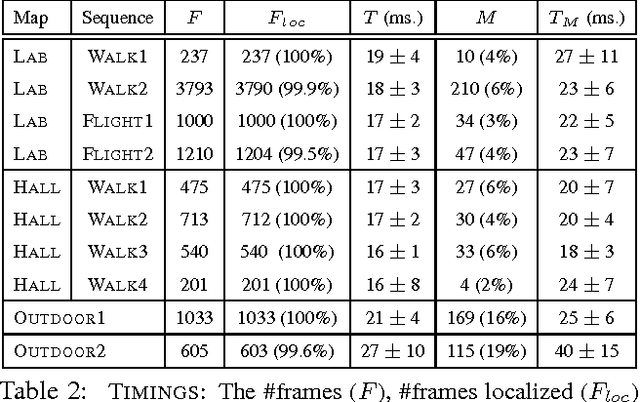

Abstract:We present a real-time approach for image-based localization within large scenes that have been reconstructed offline using structure from motion (Sfm). From monocular video, our method continuously computes a precise 6-DOF camera pose, by efficiently tracking natural features and matching them to 3D points in the Sfm point cloud. Our main contribution lies in efficiently interleaving a fast keypoint tracker that uses inexpensive binary feature descriptors with a new approach for direct 2D-to-3D matching. The 2D-to-3D matching avoids the need for online extraction of scale-invariant features. Instead, offline we construct an indexed database containing multiple DAISY descriptors per 3D point extracted at multiple scales. The key to the efficiency of our method lies in invoking DAISY descriptor extraction and matching sparingly during localization, and in distributing this computation over a window of successive frames. This enables the algorithm to run in real-time, without fluctuations in the latency over long durations. We evaluate the method in large indoor and outdoor scenes. Our algorithm runs at over 30 Hz on a laptop and at 12 Hz on a low-power, mobile computer suitable for onboard computation on a quadrotor micro aerial vehicle.
