Scatter Ptychography

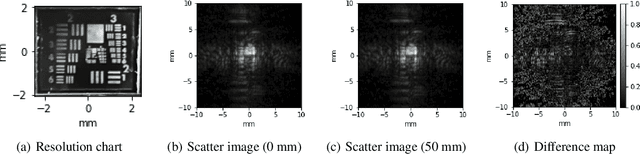

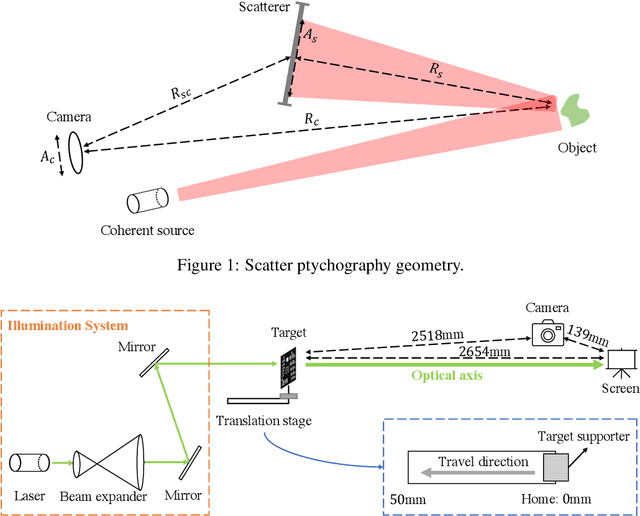

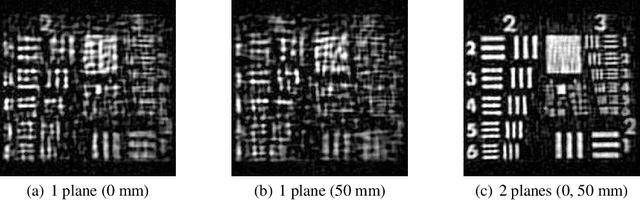

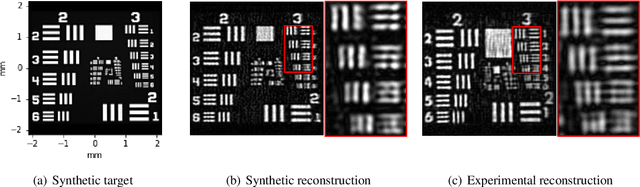

Coherent illumination reflected by a remote target may be secondarily scattered by intermediate objects or materials. Here we show that phase retrieval on remotely observed images of such scattered fields enables imaging of the illuminated object at resolution proportional to $\lambda R_s/A_s$, where $R_s$ is the range between the scatterer and the target and $A_s$ is the diameter of the observed scatter. This resolution may exceed the resolution of directly viewing the target by the factor $R_cA_s/R_sA_c$, where $R_c$ is the range between the observer and the target and $A_c$ is the observing aperture. Here we use this technique to demonstrate $\approx 32\times$ resolution improvement relative to direct imaging.

Snapshot Ptychography on Array cameras

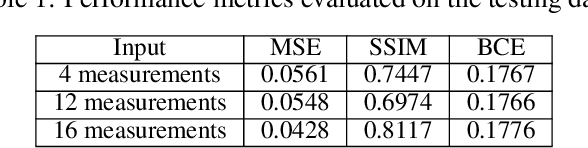

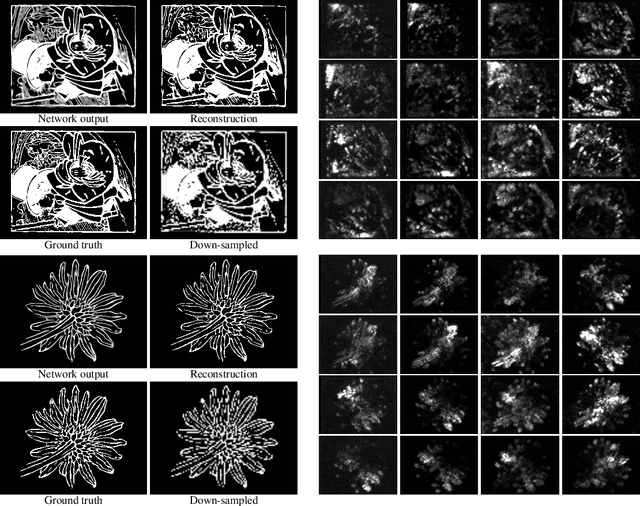

We use convolutional neural networks to recover images optically down-sampled by $6.7\times$ using coherent aperture synthesis over a 16 camera array. Where conventional ptychography relies on scanning and oversampling, here we apply decompressive neural estimation to recover full resolution image from a single snapshot, although as shown in simulation multiple snapshots can be used to improve SNR. In place training on experimental measurements eliminates the need to directly calibrate the measurement system. We also present simulations of diverse array camera sampling strategies to explore how snapshot compressive systems might be optimized.
