LiM-Loc: Visual Localization with Dense and Accurate 3D Reference Maps Directly Corresponding 2D Keypoints to 3D LiDAR Point Clouds

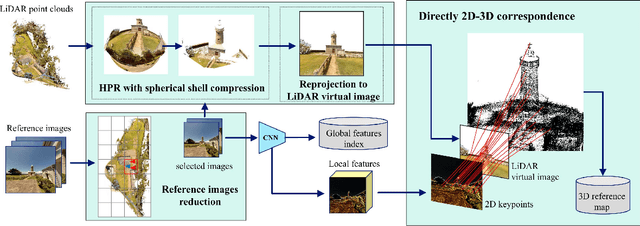

Visual localization is to estimate the 6-DOF camera pose of a query image in a 3D reference map. We extract keypoints from the reference image and generate a 3D reference map with 3D reconstruction of the keypoints in advance. We emphasize that the more keypoints in the 3D reference map and the smaller the error of the 3D positions of the keypoints, the higher the accuracy of the camera pose estimation. However, previous image-only methods require a huge number of images, and it is difficult to 3D-reconstruct keypoints without error due to inevitable mismatches and failures in feature matching. As a result, the 3D reference map is sparse and inaccurate. In contrast, accurate 3D reference maps can be generated by combining images and 3D sensors. Recently, 3D-LiDAR has been widely used around the world. LiDAR, which measures a large space with high density, has become inexpensive. In addition, accurately calibrated cameras are also widely used, so images that record the external parameters of the camera without errors can be easily obtained. In this paper, we propose a method to directly assign 3D LiDAR point clouds to keypoints to generate dense and accurate 3D reference maps. The proposed method avoids feature matching and achieves accurate 3D reconstruction for almost all keypoints. To estimate camera pose over a wide area, we use the wide-area LiDAR point cloud to remove points that are not visible to the camera and reduce 2D-3D correspondence errors. Using indoor and outdoor datasets, we apply the proposed method to several state-of-the-art local features and confirm that it improves the accuracy of camera pose estimation.

MultiBARF: Integrating Imagery of Different Wavelength Regions by Using Neural Radiance Fields

Optical sensor applications have become popular through digital transformation. Linking observed data to real-world locations and combining different image sensors is essential to make the applications practical and efficient. However, data preparation to try different sensor combinations requires high sensing and image processing expertise. To make data preparation easier for users unfamiliar with sensing and image processing, we have developed MultiBARF. This method replaces the co-registration and geometric calibration by synthesizing pairs of two different sensor images and depth images at assigned viewpoints. Our method extends Bundle Adjusting Neural Radiance Fields(BARF), a deep neural network-based novel view synthesis method, for the two imagers. Through experiments on visible light and thermographic images, we demonstrate that our method superimposes two color channels of those sensor images on NeRF.

Memory-Efficient Point Cloud Registration via Overlapping Region Sampling

Recent advances in deep learning have improved 3D point cloud registration but increased graphics processing unit (GPU) memory usage, often requiring preliminary sampling that reduces accuracy. We propose an overlapping region sampling method to reduce memory usage while maintaining accuracy. Our approach estimates the overlapping region and intensively samples from it, using a k-nearest-neighbor (kNN) based point compression mechanism with multi layer perceptron (MLP) and transformer architectures. Evaluations on 3DMatch and 3DLoMatch datasets show our method outperforms other sampling methods in registration recall, especially at lower GPU memory levels. For 3DMatch, we achieve 94% recall with 33% reduced memory usage, with greater advantages in 3DLoMatch. Our method enables efficient large-scale point cloud registration in resource-constrained environments, maintaining high accuracy while significantly reducing memory requirements.

Unsupervised Intrinsic Image Decomposition with LiDAR Intensity Enhanced Training

Unsupervised intrinsic image decomposition (IID) is the process of separating a natural image into albedo and shade without these ground truths. A recent model employing light detection and ranging (LiDAR) intensity demonstrated impressive performance, though the necessity of LiDAR intensity during inference restricts its practicality. Thus, IID models employing only a single image during inference while keeping as high IID quality as the one with an image plus LiDAR intensity are highly desired. To address this challenge, we propose a novel approach that utilizes only an image during inference while utilizing an image and LiDAR intensity during training. Specifically, we introduce a partially-shared model that accepts an image and LiDAR intensity individually using a different specific encoder but processes them together in specific components to learn shared representations. In addition, to enhance IID quality, we propose albedo-alignment loss and image-LiDAR conversion (ILC) paths. Albedo-alignment loss aligns the gray-scale albedo from an image to that inferred from LiDAR intensity, thereby reducing cast shadows in albedo from an image due to the absence of cast shadows in LiDAR intensity. Furthermore, to translate the input image into albedo and shade style while keeping the image contents, the input image is separated into style code and content code by encoders. The ILC path mutually translates the image and LiDAR intensity, which share content but differ in style, contributing to the distinct differentiation of style from content. Consequently, LIET achieves comparable IID quality to the existing model with LiDAR intensity, while utilizing only an image without LiDAR intensity during inference.
