Tree Species Identification from Bark Images Using Convolutional Neural Networks

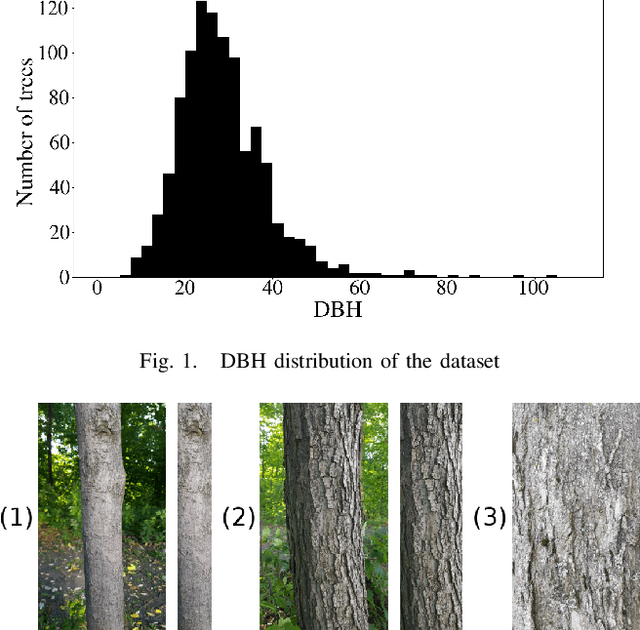

Tree species identification using bark images is a challenging problem that could prove useful for many forestry related tasks. However, while the recent progress in deep learning showed impressive results on standard vision problems, a lack of datasets prevented its use on tree bark species classification. In this work, we present, and make publicly available, a novel dataset called BarkNet 1.0 containing more than 23,000 high-resolution bark images from 23 different tree species over a wide range of tree diameters. With it, we demonstrate the feasibility of species recognition through bark images, using deep learning. More specifically, we obtain an accuracy of 93.88% on single crop, and an accuracy of 97.81% using a majority voting approach on all of the images of a tree. We also empirically demonstrate that, for a fixed number of images, it is better to maximize the number of tree individuals in the training database, thus directing future data collection efforts.

An iterative closest point method for measuring the level of similarity of 3d log scans in wood industry

In the Canadian's lumber industry, simulators are used to predict the lumbers resulting from the sawing of a log at a given sawmill. Giving a log or several logs' 3D scans as input, simulators perform a real-time job to predict the lumbers. These simulators, however, tend to be slow at processing large volume of wood. We thus explore an alternative approximation techniques based on the Iterative Closest Point (ICP) algorithm to identify the already processed log to which an unseen log resembles the most. The main benefit of the ICP approach is that it can easily handle 3D scans with a variable number of points. We compare this ICP-based nearest neighbor predictor, to predictors built using machine learning algorithms such as the K-nearest-neighbor (kNN) and Random Forest (RF). The implemented ICP-based predictor enabled us to identify key points in using the 3D scans directly for distance calculation. The long-term goal of this ongoing research is to integrated ICP distance calculations and machine learning.
