Exploiting Dual-Gate Ambipolar CNFETs for Scalable Machine Learning Classification

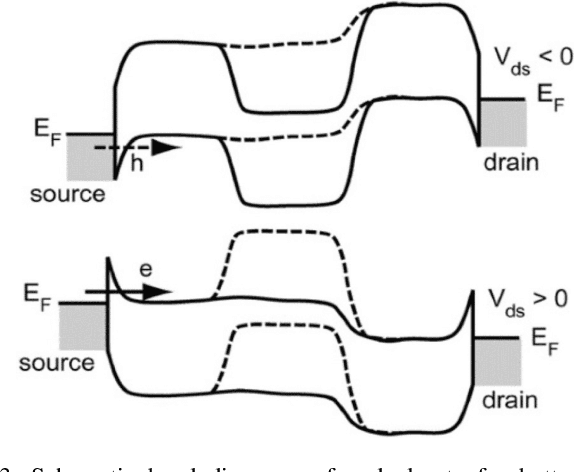

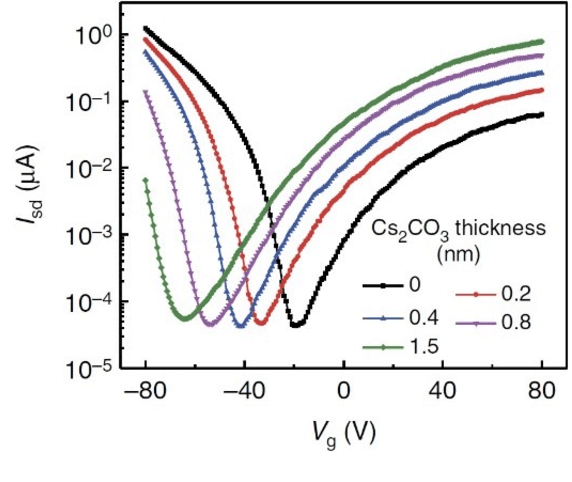

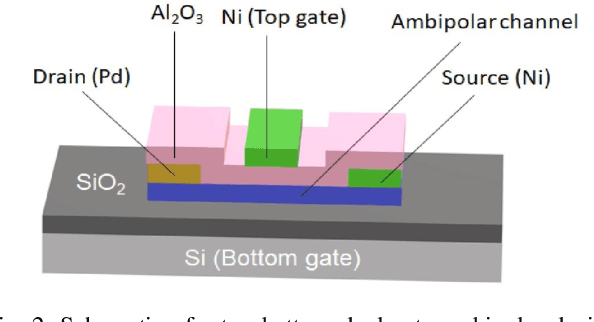

Ambipolar carbon nanotube based field-effect transistors (AP-CNFETs) exhibit unique electrical characteristics, such as tri-state operation and bi-directionality, enabling systems with complex and reconfigurable computing. In this paper, AP-CNFETs are used to design a mixed-signal machine learning (ML) classifier. The classifier is designed in SPICE with feature size of 15 nm and operates at 250 MHz. The system is demonstrated based on MNIST digit dataset, yielding 90% accuracy and no accuracy degradation as compared with the classification of this dataset in Python. The system also exhibits lower power consumption and smaller physical size as compared with the state-of-the-art CMOS and memristor based mixed-signal classifiers.

A Single-MOSFET MAC for Confidence and Resolution Driven Machine Learning Classification

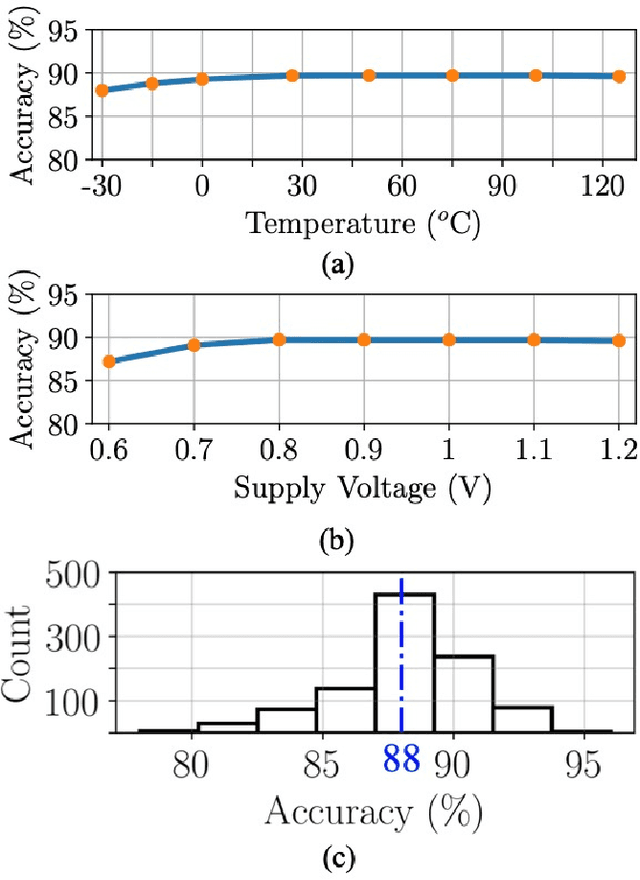

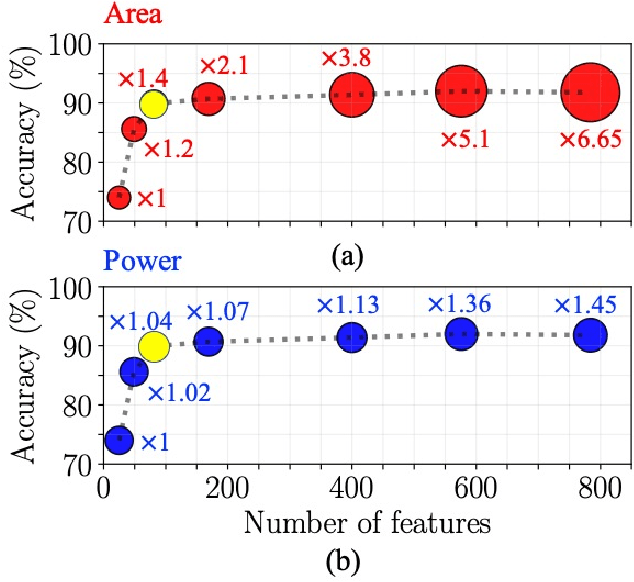

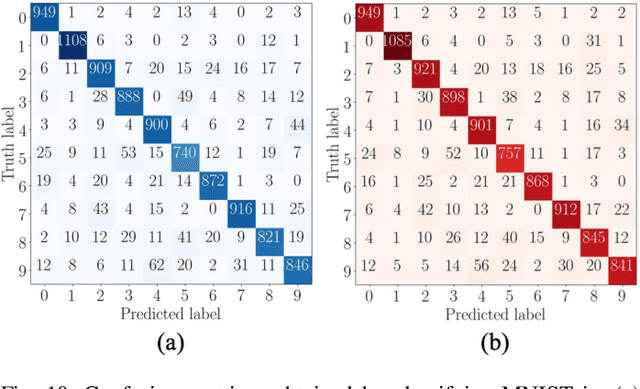

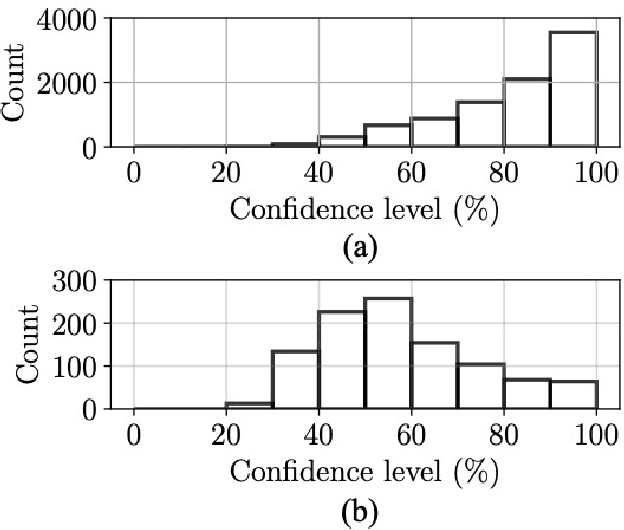

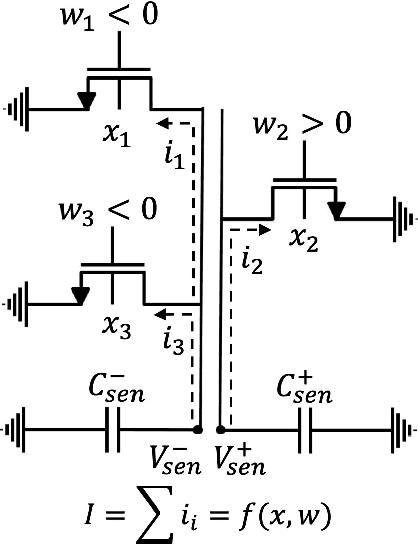

Mixed-signal machine-learning classification has recently been demonstrated as an efficient alternative for classification with power expensive digital circuits. In this paper, a high-COnfidence high-REsolution (CORE) mixed-signal classifier is proposed for classifying high-dimensional input data into multi-class output space with less power and area than state-of-the-art classifiers. A high-resolution multiplication is facilitated within a single-MOSFET by feeding the features and feature weights into, respectively, the body and gate inputs. High-resolution classifier that considers the confidence of the individual predictors is designed at 45 nm technology node and operates at 100 MHz in subthreshold region. To evaluate the performance of the classifier, a reduced MNIST dataset is generated by downsampling the MNIST digit images from 28 $\times$ 28 features to 9 $\times$ 9 features. The system is simulated across a wide range of PVT variations, exhibiting nominal accuracy of 90%, energy consumption of 6.2 pJ per classification (over 45 times lower than state-of-the-art classifiers), area of 2,179 $\mu$$m^{2}$ (over 7.3 times lower than state-of-the-art classifiers), and a stable response under PVT variations.
