Tracking and Following a Suspended Moving Object using Camera-Based Vision System

When robots are able to see and respond to their surroundings, a whole new world of possibilities opens up. To bring these possibilities to life, the robotics industry is increasingly adopting camera-based vision systems, especially when a robotic system needs to interact with a dynamic environment or moving target. However, this kind of vision system is known to have low data transmission rates, packet loss during communication and noisy measurements as major disadvantages. These problems can perturb the control performance and the quality of the robot-environment interaction. To improve the quality of visual information, in this paper, we propose to model the dynamics of the motion of a target object and use this model to implement an Extended Kalman Filter based on Intermittent Observations of the vision system. The effectiveness of the proposed approach was tested through experiments with a robotic arm, a camera device in an eye-to-hand configuration, and an oscillating suspended block as a target to follow.

Constraint Control of a Boom Crane System

Boom cranes are among the most used cranes to lift heavy loads. Although fairly simple mechanically, from the control viewpoint this kind of crane is a nonlinear underactuated system which presents several challenges, especially when con-trolled in the presence of constraints. To solve this problem, we propose an approach based on the Explicit Reference Governor (ERG), which does not require any online optimization, thus making it computationally inexpensive. The proposed control scheme is able to steer the crane to a desired position ensuring the respect of limited joint ranges, maximum oscillation angle, and the avoidance of static obstacles.

Oscillation Reduction for Knuckle Cranes

Boom cranes are among the most common material handling systems due to their simple design. Some boom cranes also have an auxiliary jib connected to the boom with a flexible joint to enhance the maneuverability and increase the workspace of the crane. Such boom cranes are commonly called knuckle boom cranes. Due to their underactuated properties, it is fairly challenging to control knuckle boom cranes. To the best of our knowledge, only a few techniques are present in the literature to control this type of cranes using approximate models of the crane. In this paper we present for the first time a complete mathematical model for this crane where it is possible to control the three rotations of the crane (known as luff, slew, and jib movement), and the cable length. One of the main challenges to control this system is how to reduce the oscillations in an effective way. In this paper we propose a nonlinear control based on energy considerations capable of guiding the crane to desired sets points while effectively reducing load oscillations. The corresponding stability and convergence analysis is proved using the LaSalle's invariance principle. Simulation results are provided to demonstrate the effectiveness and feasibility of the proposed method.

Modeling and control of 5-DoF boom crane

Automation of cranes can have a direct impact on the productivity of construction projects. In this paper, we focus on the control of one of the most used cranes, the boom crane. Tower cranes and overhead cranes have been widely studied in the literature, whereas the control of boom cranes has been investigated only by a few works. Typically, these works make use of simple models making use of a large number of simplifying assumptions (e.g. fixed length cable, assuming certain dynamics are uncoupled, etc.) A first result of this paper is to present a fairly complete nonlinear dynamic model of a boom crane taking into account all coupling dynamics and where the only simplifying assumption is that the cable is considered as rigid. The boom crane involves pitching and rotational movements, which generate complicated centrifugal forces, and consequently, equations of motion highly nonlinear. On the basis of this model, a control law has been developed able to perform position control of the crane while actively damping the oscillations of the load. The effectiveness of the approach has been tested in simulation with realistic physical parameters and tested in the presence of wind disturbances.

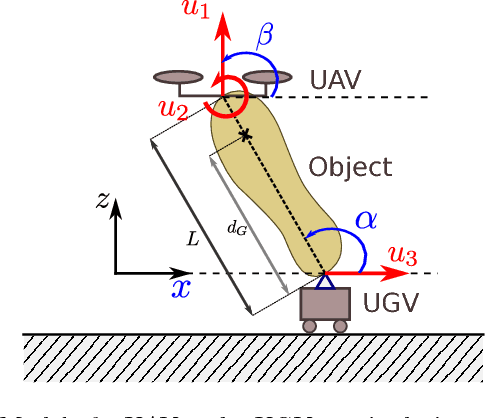

Proofs of Control of a Quadrotor and a Ground Vehicle Manipulating an Object

This paper focuses on the control of a cooperative system composed of an Unmanned Aerial Vehicle (UAV) and an Unmanned Ground Vehicle (UGV) manipulating an object. The two units are subject to input saturations and collaborate to move the object to a desired pose characterized by its position and inclination. The dynamics are derived using Euler-Lagrange method. A pre-stabilizing control law is proposed where the UGV is tasked to deploy the object to a certain position whereas the UAV adjusts its inclination. In particular, a proportional-derivative control law is proposed for the UGV, and a cascade control approach is used for the UAV, where the inner loop controls the attitude of the UAV and the outer loop stabilizes the inclination of the object. Then, we prove the stability of the points of equilibrium using small gain arguments. To ensure constraints satisfaction at all times, a reference governor unit is added to the pre-stabilizing control scheme. Finally, numerical results combined with experimental results are provided to validate the effectiveness of the proposed control scheme in practice.

A Passivity-Based Distributed Reference Governor for Constrained Robotic Networks

This paper focuses on a passivity-based distributed reference governor (RG) applied to a pre-stabilized mobile robotic network. The novelty of this paper lies in the method used to solve the RG problem, where a passivity-based distributed optimization scheme is proposed. In particular, the gradient descent method minimizes the global objective function while the dual ascent method maximizes the Hamiltonian. To make the agents converge to the agreed optimal solution, a proportional-integral consensus estimator is used. This paper proves the convergence of the state estimates of the RG to the optimal solution through passivity arguments, considering the physical system static. Then, the effectiveness of the scheme considering the dynamics of the physical system is demonstrated through simulations and experiments.
