Delay Conditioned Generative Modelling of Resistive Drift in Memristors

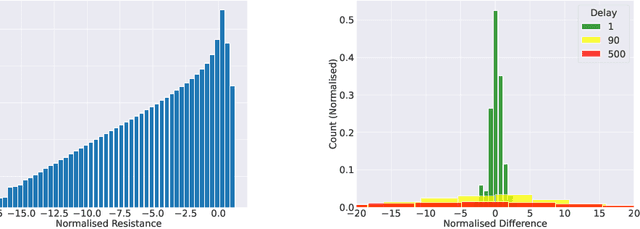

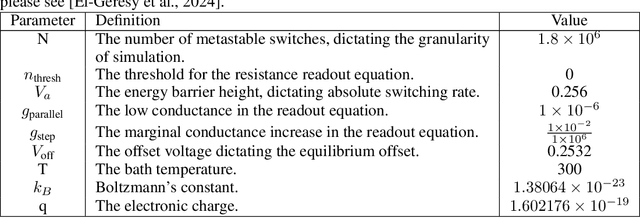

The modelling of memristive devices is an essential part of the development of novel in-memory computing systems. Models are needed to enable the accurate and efficient simulation of memristor device characteristics, for purposes of testing the performance of the devices or the feasibility of their use in future neuromorphic and in-memory computing architectures. The consideration of memristor non-idealities is an essential part of any modelling approach. The nature of the deviation of memristive devices from their initial state, particularly at ambient temperature and in the absence of a stimulating voltage, is of key interest, as it dictates their reliability as information storage media - a property that is of importance for both traditional storage and neuromorphic applications. In this paper, we investigate the use of a generative modelling approach for the simulation of the delay and initial resistance-conditioned resistive drift distribution of memristive devices. We introduce a data normalisation scheme and a novel training technique to enable the generative model to be conditioned on the continuous inputs. The proposed generative modelling approach is suited for use in end-to-end training and device modelling scenarios, including learned data storage applications, due to its simulation efficiency and differentiability.

An Adiabatic Capacitive Artificial Neuron with RRAM-based Threshold Detection for Energy-Efficient Neuromorphic Computing

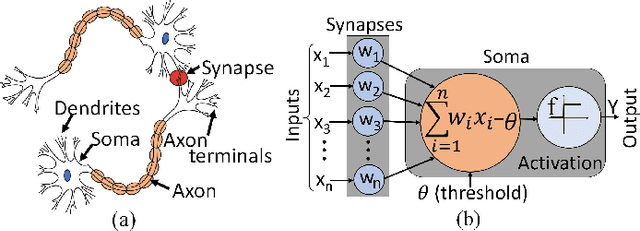

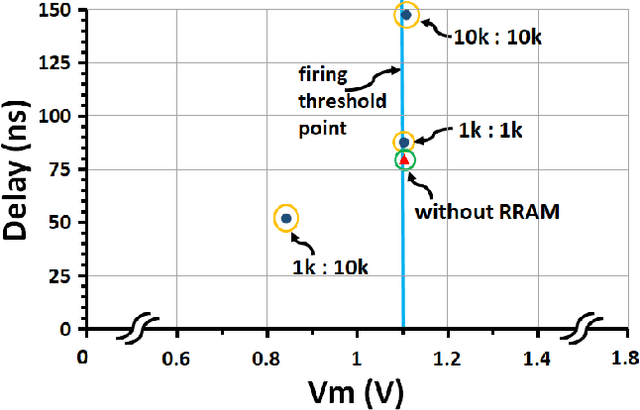

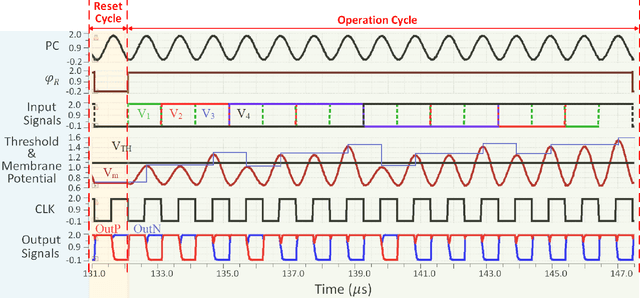

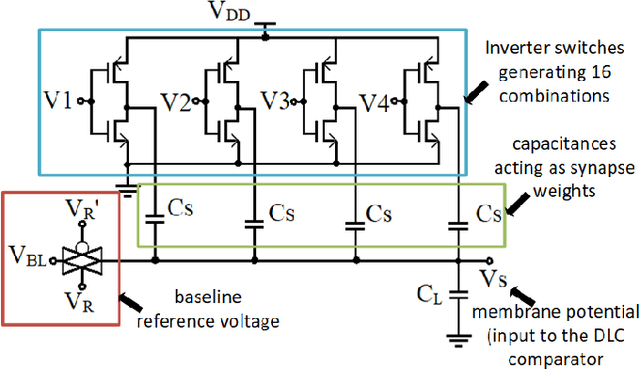

In the quest for low power, bio-inspired computation both memristive and memcapacitive-based Artificial Neural Networks (ANN) have been the subjects of increasing focus for hardware implementation of neuromorphic computing. One step further, regenerative capacitive neural networks, which call for the use of adiabatic computing, offer a tantalising route towards even lower energy consumption, especially when combined with `memimpedace' elements. Here, we present an artificial neuron featuring adiabatic synapse capacitors to produce membrane potentials for the somas of neurons; the latter implemented via dynamic latched comparators augmented with Resistive Random-Access Memory (RRAM) devices. Our initial 4-bit adiabatic capacitive neuron proof-of-concept example shows 90% synaptic energy saving. At 4 synapses/soma we already witness an overall 35% energy reduction. Furthermore, the impact of process and temperature on the 4-bit adiabatic synapse shows a maximum energy variation of 30% at 100 degree Celsius across the corners without any functionality loss. Finally, the efficacy of our adiabatic approach to ANN is tested for 512 & 1024 synapse/neuron for worst and best case synapse loading conditions and variable equalising capacitance's quantifying the expected trade-off between equalisation capacitance and range of optimal power-clock frequencies vs. loading (i.e. the percentage of active synapses).

An FPGA-based System for Generalised Electron Devices Testing
