Radar-Based Recognition of Static Hand Gestures in American Sign Language

In the fast-paced field of human-computer interaction (HCI) and virtual reality (VR), automatic gesture recognition has become increasingly essential. This is particularly true for the recognition of hand signs, providing an intuitive way to effortlessly navigate and control VR and HCI applications. Considering increased privacy requirements, radar sensors emerge as a compelling alternative to cameras. They operate effectively in low-light conditions without capturing identifiable human details, thanks to their lower resolution and distinct wavelength compared to visible light. While previous works predominantly deploy radar sensors for dynamic hand gesture recognition based on Doppler information, our approach prioritizes classification using an imaging radar that operates on spatial information, e.g. image-like data. However, generating large training datasets required for neural networks (NN) is a time-consuming and challenging process, often falling short of covering all potential scenarios. Acknowledging these challenges, this study explores the efficacy of synthetic data generated by an advanced radar ray-tracing simulator. This simulator employs an intuitive material model that can be adjusted to introduce data diversity. Despite exclusively training the NN on synthetic data, it demonstrates promising performance when put to the test with real measurement data. This emphasizes the practicality of our methodology in overcoming data scarcity challenges and advancing the field of automatic gesture recognition in VR and HCI applications.

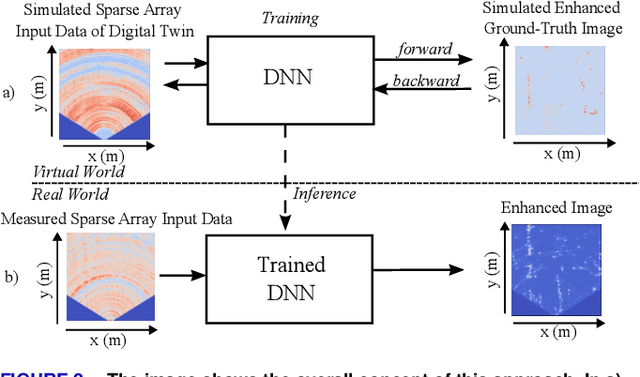

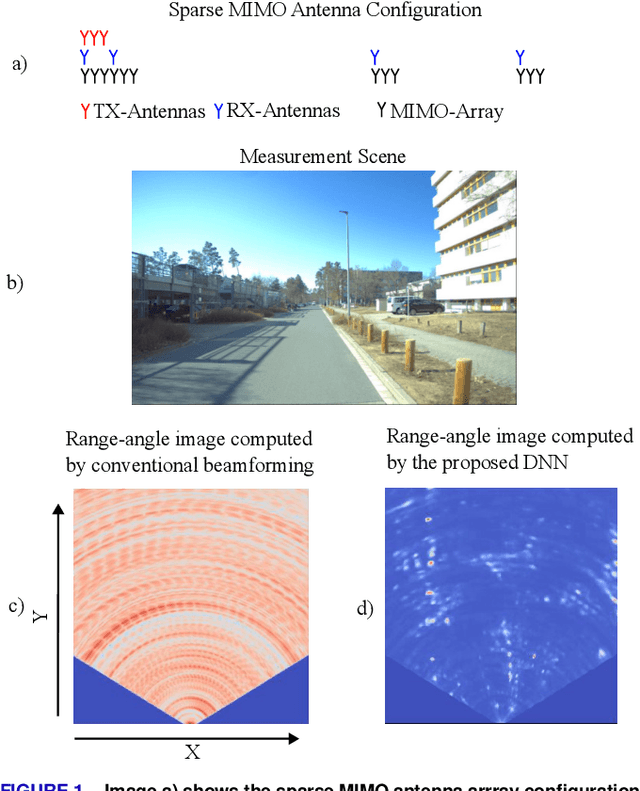

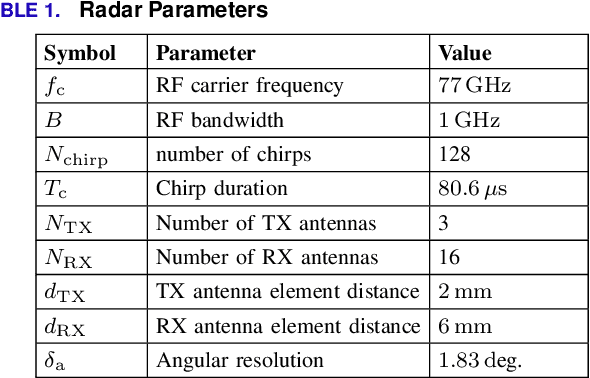

Super-Resolution Radar Imaging with Sparse Arrays Using a Deep Neural Network Trained with Enhanced Virtual Data

This paper introduces a method based on a deep neural network (DNN) that is perfectly capable of processing radar data from extremely thinned radar apertures. The proposed DNN processing can provide both aliasing-free radar imaging and super-resolution. The results are validated by measuring the detection performance on realistic simulation data and by evaluating the Point-Spread-function (PSF) and the target-separation performance on measured point-like targets. Also, a qualitative evaluation of a typical automotive scene is conducted. It is shown that this approach can outperform state-of-the-art subspace algorithms and also other existing machine learning solutions. The presented results suggest that machine learning approaches trained with sufficiently sophisticated virtual input data are a very promising alternative to compressed sensing and subspace approaches in radar signal processing. The key to this performance is that the DNN is trained using realistic simulation data that perfectly mimic a given sparse antenna radar array hardware as the input. As ground truth, ultra-high resolution data from an enhanced virtual radar are simulated. Contrary to other work, the DNN utilizes the complete radar cube and not only the antenna channel information at certain range-Doppler detections. After training, the proposed DNN is capable of sidelobe- and ambiguity-free imaging. It simultaneously delivers nearly the same resolution and image quality as would be achieved with a fully occupied array.
