Interplay between Sensing and Communication in Cell-Free Massive MIMO with URLLC Users

This paper studies integrated sensing and communication (ISAC) in the downlink of a cell-free massive multiple-input multiple-output (MIMO) system with multi-static sensing and ultra-reliable low-latency communication (URLLC) users. We propose a successive convex approximation-based power allocation algorithm that maximizes energy efficiency while satisfying the sensing and URLLC requirements. In addition, we provide a new definition for network availability, which accounts for both sensing and URLLC requirements. The impact of blocklength, sensing requirement, and required reliability as a function of decoding error probability on network availability and energy efficiency is investigated. The proposed power allocation algorithm is compared to a communication-centric approach where only the URLLC requirement is considered. It is shown that the URLLC-only approach is incapable of meeting sensing requirements, while the proposed ISAC algorithm fulfills both sensing and URLLC requirements, albeit with an associated increase in energy consumption. This increment can be reduced up to 75% by utilizing additional symbols for sensing. It is also demonstrated that larger blocklengths enhance network availability and offer greater robustness against stringent reliability requirements.

Joint Processing and Transmission Energy Optimization for ISAC in Cell-Free Massive MIMO with URLLC

In this paper, we explore the concept of integrated sensing and communication (ISAC) within a downlink cell-free massive MIMO (multiple-input multiple-output) system featuring multi-static sensing and users requiring ultra-reliable low-latency communications (URLLC). Our focus involves the formulation of two non-convex algorithms that jointly solve power and blocklength allocation for end-to-end (E2E) minimization. The objectives are to jointly minimize sensing/communication processing and transmission energy consumption, while simultaneously meeting the requirements for sensing and URLLC. To address the inherent non-convexity of these optimization problems, we utilize techniques such as the Feasible Point Pursuit - Successive Convex Approximation (FPP-SCA), Concave-Convex Programming (CCP), and fractional programming. We conduct a comparative analysis of the performance of these algorithms in ISAC scenarios and against a URLLC-only scenario where sensing is not integrated. Our numerical results highlight the superior performance of the E2E energy minimization algorithm, especially in scenarios without sensing capability. Additionally, our study underscores the increasing prominence of energy consumption associated with sensing processing tasks as the number of sensing receive access points rises. Furthermore, the results emphasize that a higher sensing signal-to-interference-plus-noise ratio threshold is associated with an escalation in E2E energy consumption, thereby narrowing the performance gap between the two proposed algorithms.

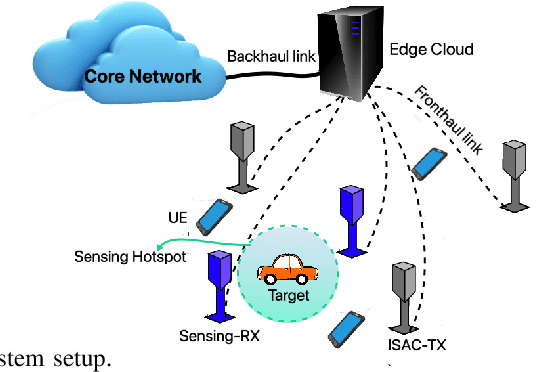

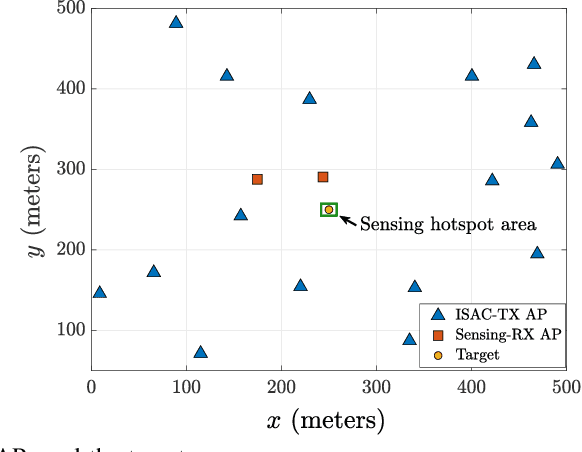

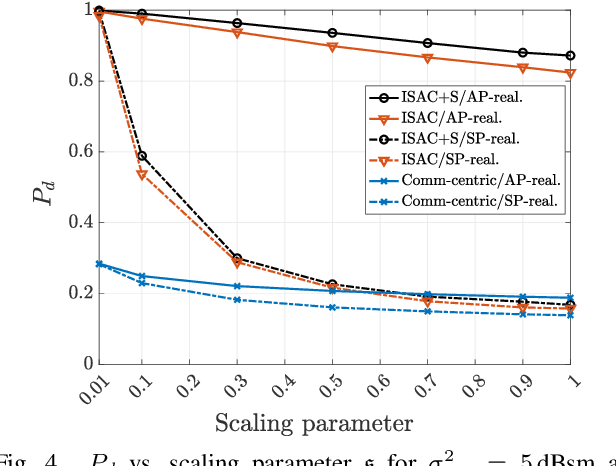

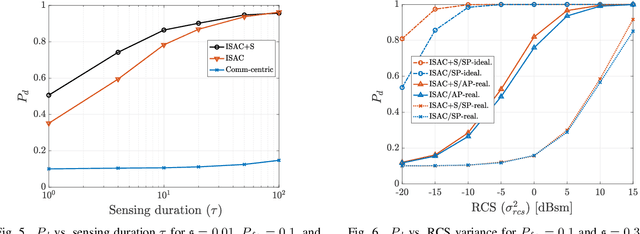

Multi-Static Target Detection and Power Allocation for Integrated Sensing and Communication in Cell-Free Massive MIMO

This paper studies an integrated sensing and communication (ISAC) system for single-target detection in a cloud radio access network architecture. The system considers downlink communication and multi-static sensing approach, where ISAC transmit access points (APs) jointly serve the user equipments (UEs) and optionally steer a beam toward the target. A centralized operation of cell-free massive MIMO (multiple-input multiple-output) is considered for communication and sensing purposes. A maximum a posteriori ratio test detector is developed to detect the target in the presence of clutter, so-called target-free signals. Moreover, a power allocation algorithm is proposed to maximize the sensing signal-to-interference-plus-noise ratio (SINR) while ensuring a minimum communication SINR value for each UE and meeting per-AP power constraints. Two ISAC setups are studied: i) using only existing communication beams for sensing and ii) using additional sensing beams. The proposed algorithm's efficiency is investigated in both realistic and idealistic scenarios, corresponding to the presence and absence of the target-free channels, respectively. Although detection probability degrades in the presence of target-free channels that act as interference, the proposed algorithm significantly outperforms the interference-unaware benchmark by exploiting the statistics of the clutter. It has also been shown that the proposed algorithm outperforms the fully communication-centric algorithm, both in the presence and absence of clutter. Moreover, using an additional sensing beam improves the detection performance for a target with lower radar cross-section variances compared to the case without sensing beams.

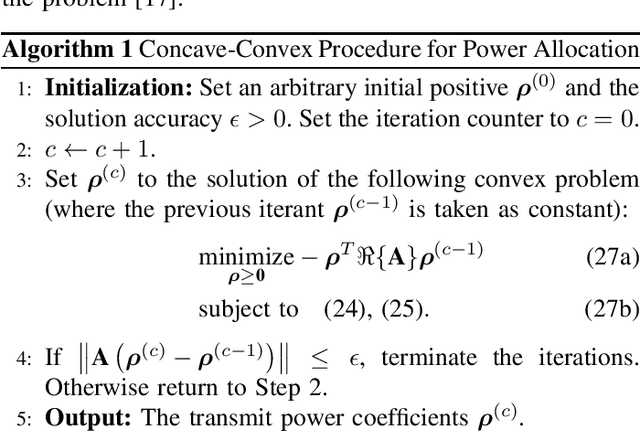

Power Allocation for Joint Communication and Sensing in Cell-Free Massive MIMO

This paper studies a joint communication and sensing (JCAS) system with downlink communication and multi-static sensing for single-target detection in a cloud radio access network architecture. A centralized operation of cell-free massive MIMO is considered for communication and sensing purposes. The JCAS transmit access points (APs) jointly serve the user equipments (UEs) and optionally steer a beam towards the target. A maximum a posteriori ratio test detector is derived to detect the target using signals received at distributed APs. We propose a power allocation algorithm to maximize the sensing signal-to-noise ratio under the condition that a minimal signal-to-interference-plus-noise ratio value for each UE is guaranteed. Numerical results show that, compared to the fully communication-centric power allocation, the detection probability under a certain false alarm probability can be increased significantly by the proposed algorithm for both JCAS setups: i) using additional sensing symbols or ii) using only existing communication symbols.
