Deep Learning Based Superposition Coded Modulation for Hierarchical Semantic Communications over Broadcast Channels

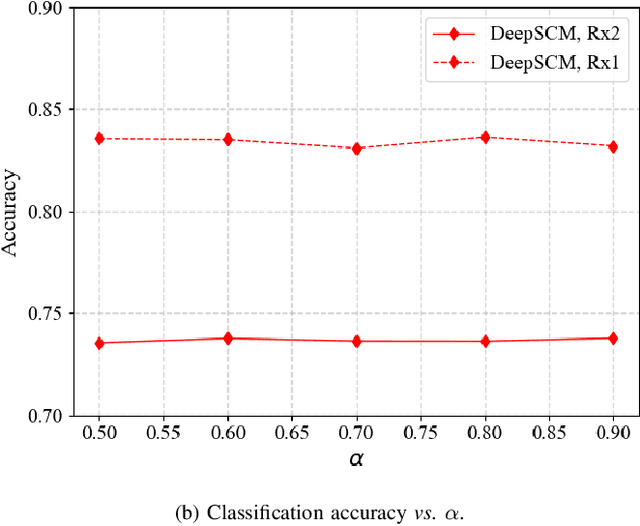

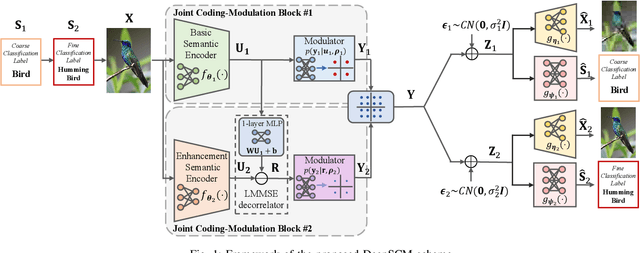

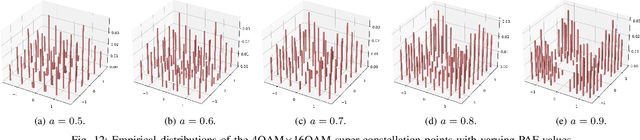

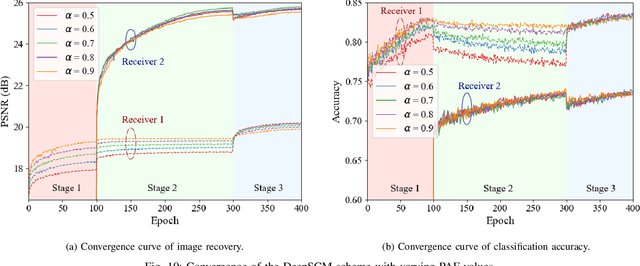

We consider multi-user semantic communications over broadcast channels. While most existing works consider that each receiver requires either the same or independent semantic information, this paper explores the scenario where the semantic information desired by different receivers is different but correlated. In particular, we investigate semantic communications over Gaussian broadcast channels where the transmitter has a common observable source but the receivers wish to recover hierarchical semantic information in adaptation to their channel conditions. Inspired by the capacity achieving property of superposition codes, we propose a deep learning based superposition coded modulation (DeepSCM) scheme. Specifically, the hierarchical semantic information is first extracted and encoded into basic and enhanced feature vectors. A linear minimum mean square error (LMMSE) decorrelator is then developed to obtain a refinement from the enhanced features that is uncorrelated with the basic features. Finally, the basic features and their refinement are superposed for broadcasting after probabilistic modulation. Experiments are conducted for two-receiver image semantic broadcasting with coarse and fine classification as hierarchical semantic tasks. DeepSCM outperforms the benchmarking coded-modulation scheme without a superposition structure, especially with large channel disparity and high order modulation. It also approaches the performance upperbound as if there were only one receiver.

Joint Coding-Modulation for Digital Semantic Communications via Variational Autoencoder

Semantic communications have emerged as a new paradigm for improving communication efficiency by transmitting the semantic information of a source message that is most relevant to a desired task at the receiver. Most existing approaches typically utilize neural networks (NNs) to design end-to-end semantic communication systems, where NN-based semantic encoders output continuously distributed signals to be sent directly to the channel in an analog communication fashion. In this work, we propose a joint coding-modulation framework for digital semantic communications by using variational autoencoder (VAE). Our approach learns the transition probability from source data to discrete constellation symbols, thereby avoiding the non-differentiability problem of digital modulation. Meanwhile, by jointly designing the coding and modulation process together, we can match the obtained modulation strategy with the operating channel condition. We also derive a matching loss function with information-theoretic meaning for end-to-end training. Experiments conducted on image semantic communication validate that our proposed joint coding-modulation framework outperforms separate design of semantic coding and modulation under various channel conditions, transmission rates, and modulation orders. Furthermore, its performance gap to analog semantic communication reduces as the modulation order increases while enjoying the hardware implementation convenience.

Learning Based Joint Coding-Modulation for Digital Semantic Communication Systems

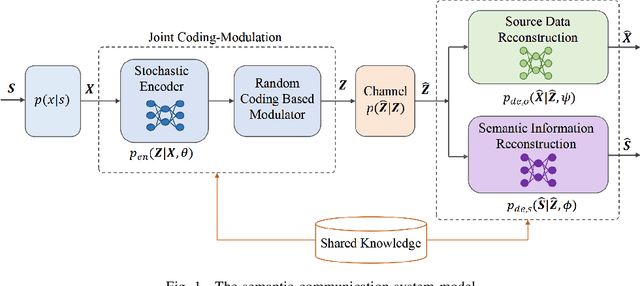

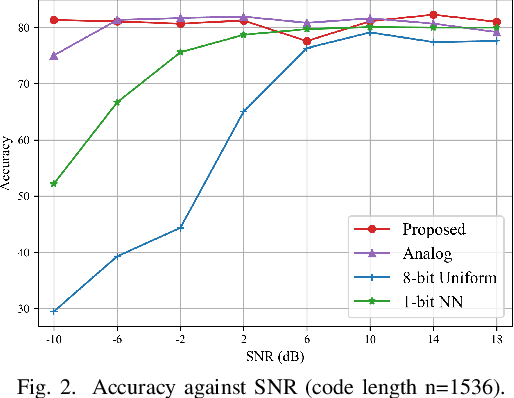

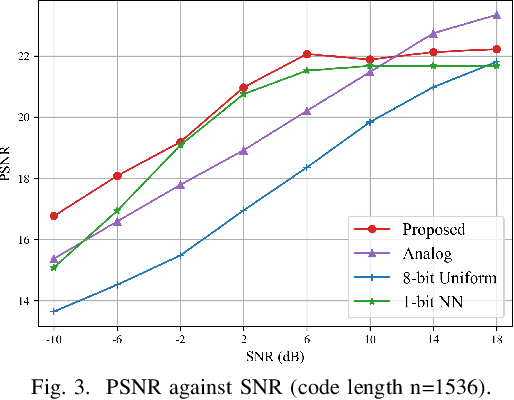

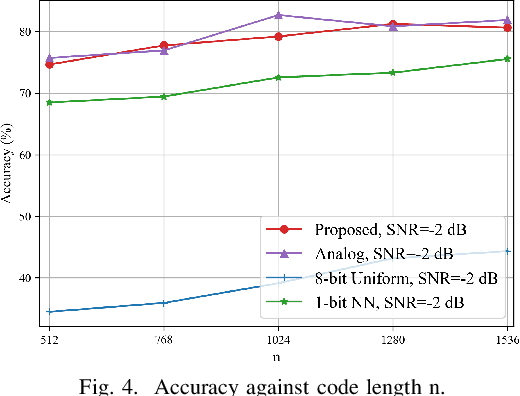

In learning-based semantic communications, neural networks have replaced different building blocks in traditional communication systems. However, the digital modulation still remains a challenge for neural networks. The intrinsic mechanism of neural network based digital modulation is mapping continuous output of the neural network encoder into discrete constellation symbols, which is a non-differentiable function that cannot be trained with existing gradient descend algorithms. To overcome this challenge, in this paper we develop a joint coding-modulation scheme for digital semantic communications with BPSK modulation. In our method, the neural network outputs the likelihood of each constellation point, instead of having a concrete mapping. A random code rather than a deterministic code is hence used, which preserves more information for the symbols with a close likelihood on each constellation point. The joint coding-modulation design can match the modulation process with channel states, and hence improve the performance of digital semantic communications. Experiment results show that our method outperforms existing digital modulation methods in semantic communications over a wide range of SNR, and outperforms neural network based analog modulation method in low SNR regime.
