GeoBiked: A Dataset with Geometric Features and Automated Labeling Techniques to Enable Deep Generative Models in Engineering Design

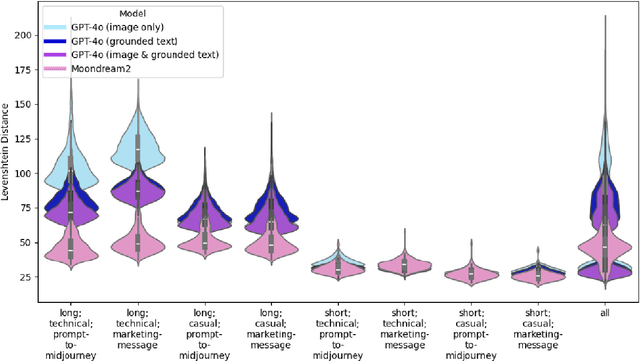

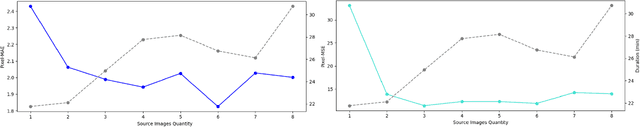

We provide a dataset for enabling Deep Generative Models (DGMs) in engineering design and propose methods to automate data labeling by utilizing large-scale foundation models. GeoBiked is curated to contain 4 355 bicycle images, annotated with structural and technical features and is used to investigate two automated labeling techniques: The utilization of consolidated latent features (Hyperfeatures) from image-generation models to detect geometric correspondences (e.g. the position of the wheel center) in structural images and the generation of diverse text descriptions for structural images. GPT-4o, a vision-language-model (VLM), is instructed to analyze images and produce diverse descriptions aligned with the system-prompt. By representing technical images as Diffusion-Hyperfeatures, drawing geometric correspondences between them is possible. The detection accuracy of geometric points in unseen samples is improved by presenting multiple annotated source images. GPT-4o has sufficient capabilities to generate accurate descriptions of technical images. Grounding the generation only on images leads to diverse descriptions but causes hallucinations, while grounding it on categorical labels restricts the diversity. Using both as input balances creativity and accuracy. Successfully using Hyperfeatures for geometric correspondence suggests that this approach can be used for general point-detection and annotation tasks in technical images. Labeling such images with text descriptions using VLMs is possible, but dependent on the models detection capabilities, careful prompt-engineering and the selection of input information. Applying foundation models in engineering design is largely unexplored. We aim to bridge this gap with a dataset to explore training, finetuning and conditioning DGMs in this field and suggesting approaches to bootstrap foundation models to process technical images.

InsertDiffusion: Identity Preserving Visualization of Objects through a Training-Free Diffusion Architecture

Recent advancements in image synthesis are fueled by the advent of large-scale diffusion models. Yet, integrating realistic object visualizations seamlessly into new or existing backgrounds without extensive training remains a challenge. This paper introduces InsertDiffusion, a novel, training-free diffusion architecture that efficiently embeds objects into images while preserving their structural and identity characteristics. Our approach utilizes off-the-shelf generative models and eliminates the need for fine-tuning, making it ideal for rapid and adaptable visualizations in product design and marketing. We demonstrate superior performance over existing methods in terms of image realism and alignment with input conditions. By decomposing the generation task into independent steps, InsertDiffusion offers a scalable solution that extends the capabilities of diffusion models for practical applications, achieving high-quality visualizations that maintain the authenticity of the original objects.

Exploring the Potentials and Challenges of Deep Generative Models in Product Design Conception

The synthesis of product design concepts stands at the crux of early-phase development processes for technical products, traditionally posing an intricate interdisciplinary challenge. The application of deep learning methods, particularly Deep Generative Models (DGMs), holds the promise of automating and streamlining manual iterations and therefore introducing heightened levels of innovation and efficiency. However, DGMs have yet to be widely adopted into the synthesis of product design concepts. This paper aims to explore the reasons behind this limited application and derive the requirements for successful integration of these technologies. We systematically analyze DGM-families (VAE, GAN, Diffusion, Transformer, Radiance Field), assessing their strengths, weaknesses, and general applicability for product design conception. Our objective is to provide insights that simplify the decision-making process for engineers, helping them determine which method might be most effective for their specific challenges. Recognizing the rapid evolution of this field, we hope that our analysis contributes to a fundamental understanding and guides practitioners towards the most promising approaches. This work seeks not only to illuminate current challenges but also to propose potential solutions, thereby offering a clear roadmap for leveraging DGMs in the realm of product design conception.
