Abstract:This paper presents detailed radio propagation measurements for an indoor factory (InF) environment at 6.75 GHz and 16.95 GHz using a 1 GHz bandwidth channel sounder. Conducted at the NYU MakerSpace in the NYU Tandon School of Engineering campus in Brooklyn, NY, USA, our measurement campaign characterizes a representative small factory with diverse machinery and open workspaces across 12 locations, comprising 5 line-of-sight (LOS) and 7 non-line-of-sight (NLOS) scenarios. Analysis using the close-in (CI) path loss model with a 1 m reference distance reveals path loss exponents (PLE) below 2 in LOS at 6.75 GHz and 16.95 GHz, while in NLOS PLE is similar to free-space propagation. The RMS delay spread (DS) decreases at higher frequencies with a clear frequency dependence. Similarly, RMS angular spread (AS) measurements show wider spreads in NLOS compared to LOS at both frequency bands, with a decreasing trend as frequency increases. These observations in a dense-scatterer environment demonstrate frequency-dependent behavior that deviate from existing industry-standard models. Our findings provide crucial insights into complex propagation mechanisms in factory environments, essential for designing robust industrial wireless networks at upper mid-band frequencies.
Abstract:Global allocations in the upper mid-band spectrum (4-24 GHz) necessitate a comprehensive exploration of the propagation behavior to meet the promise of coverage and capacity. This paper presents an extensive Urban Microcell (UMi) outdoor propagation measurement campaign at 6.75 GHz and 16.95 GHz conducted in Downtown Brooklyn, USA, using a 1 GHz bandwidth sliding correlation channel sounder over 40-880 m propagation distance, encompassing 6 Line of Sight (LOS) and 14 Non-Line of Sight (NLOS) locations. Analysis of the path loss (PL) reveals lower directional and omnidirectional PL exponents compared to mmWave and sub-THz frequencies in the UMi environment, using the close-in PL model with a 1 m reference distance. Additionally, a decreasing trend in root mean square (RMS) delay spread (DS) and angular spread (AS) with increasing frequency was observed. The NLOS RMS DS and RMS AS mean values are obtained consistently lower compared to 3GPP model predictions. Point data for all measured statistics at each TX-RX location are provided to supplement the models and results. The spatio-temporal statistics evaluated here offer valuable insights for the design of next-generation wireless systems and networks.

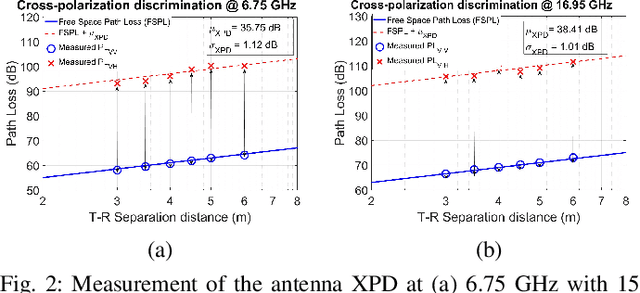

Abstract:The 4--8 GHz FR1(C) and 7--24 GHz upper mid-band FR3 spectrum are promising new 6G spectrum allocations being considered by the International Telecommunications Union (ITU) and major governments around the world. There is an urgent need to understand the propagation behavior and radio coverage, outage, and material penetration for the global mobile wireless industry in both indoor and outdoor environments in these emerging frequency bands. This work presents measurements and models that describe the penetration loss in co-polarized and cross-polarized antenna configurations, exhibited by common materials found inside buildings and on building perimeters, including concrete, low-emissivity glass, wood, doors, drywall, and whiteboard at 6.75 GHz and 16.95 GHz. Measurement results show consistent lower penetration loss at 6.75 GHz compared to 16.95 GHz for all ten materials measured for co and cross-polarized antennas at incidence. For instance, the low-emissivity glass wall presents 33.7 dB loss at 6.75 GHz, while presenting 42.3 dB loss at 16.95 GHz. Penetration loss at these frequencies is contrasted with measurements at sub-6 GHz, mmWave and sub-THz frequencies along with 3GPP material penetration loss models. The results provide critical knowledge for future 5G and 6G cellular system deployments as well as refinements for the 3GPP material penetration models.
Abstract:New spectrum allocations in the 4--8 GHz FR1(C) and 7--24 GHz FR3 mid-band frequency spectrum are being considered for 5G/6G cellular deployments. This paper presents results from the world's first comprehensive indoor hotspot (InH) propagation measurement campaign at 6.75 GHz and 16.95 GHz in the NYU WIRELESS Research Center using a 1 GHz wideband channel sounder system over distances from 11 to 97 m in line-of-sight (LOS) and non-LOS (NLOS). Analysis of directional and omnidirectional path loss (PL) using the close-in free space 1 m reference distance model shows a familiar waveguiding effect in LOS with an omnidirectional path loss exponent (PLE) of 1.40 at 6.75 GHz and 1.32 at 16.95 GHz. Compared to mmWave frequencies, the directional NLOS PLEs are lower at FR3 and FR1(C), while omnidirectional NLOS PLEs are similar, suggesting better propagation distances at lower frequencies for links with omnidirectional antennas at both ends of the links, but also, importantly, showing that higher gain antennas will offer better coverage at higher frequencies when antenna apertures are kept same over all frequencies. Comparison of the omnidirectional and directional RMS delay spread (DS) at FR1(C) and FR3 with mmWave frequencies indicates a clear decrease with increasing frequency. The mean spatial lobe and omnidirectional RMS angular spread (AS) is found to be wider at 6.75 GHz compared to 16.95 GHz indicating more multipath components are found in the azimuthal spatial domain at lower frequencies.
