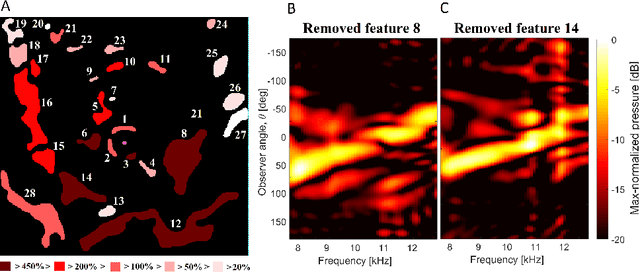

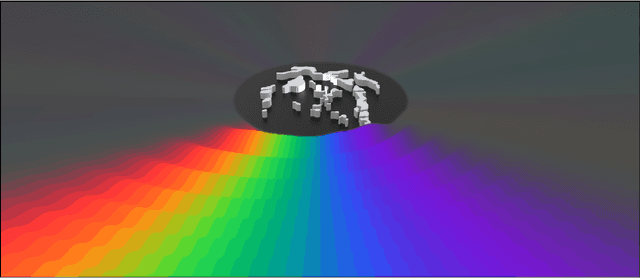

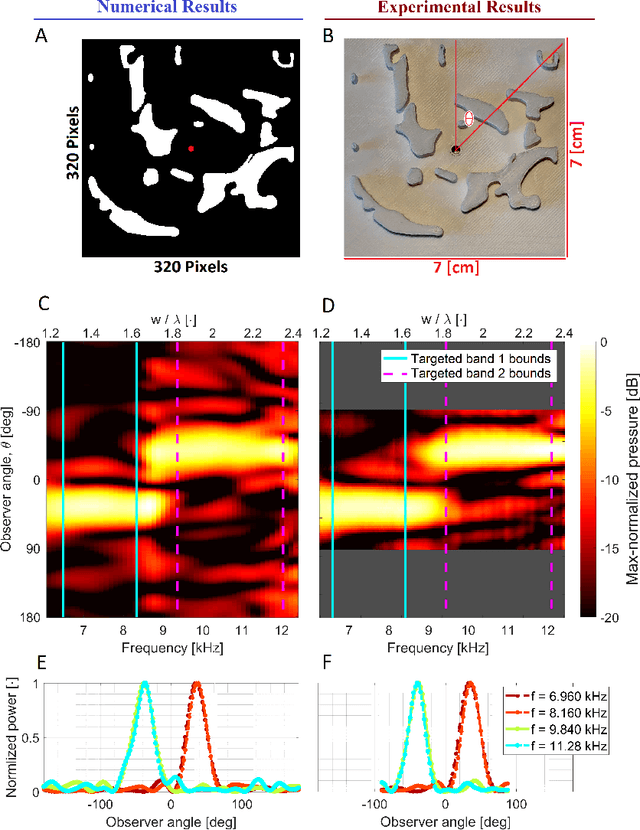

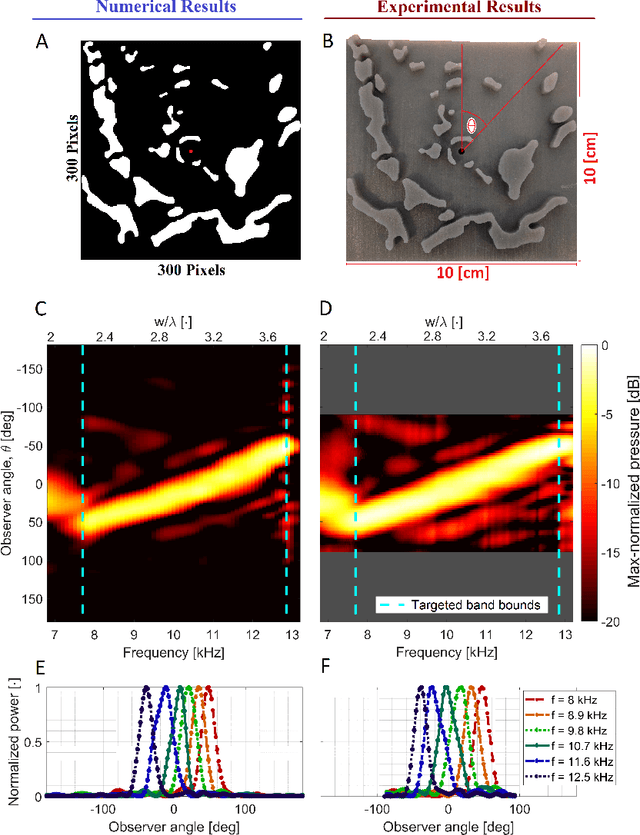

Abstract:Sound is an essential sensing element for many organisms in nature, and multiple species have evolved organic structures that create complex acoustic scattering and dispersion phenomena to emit and perceive sound unambiguously. To date, it has not proven possible to design artificial scattering structures that rival the performance of those found in organic structures. Contrarily, most sound manipulation relies on active transduction in fluid media rather than relying on passive scattering principles, as are often found in nature. In this work, we utilize computational morphogenesis to synthesize complex energy-efficient wavelength-sized single-material scattering structures that passively decompose radiated sound into its spatio-spectral components. Specifically, we tailor an acoustic rainbow structure with "above unity" efficiency and an acoustic wavelength-splitter. Our work paves the way for a new frontier in sound-field engineering, with potential applications in transduction, bionics, energy harvesting, communications and sensing.
Abstract:Neural networks have recently been employed as material discretizations within adjoint optimization frameworks for inverse problems and topology optimization. While advantageous regularization effects and better optima have been found for some inverse problems, the benefit for topology optimization has been limited -- where the focus of investigations has been the compliance problem. We demonstrate how neural network material discretizations can, under certain conditions, find better local optima in more challenging optimization problems, where we here specifically consider acoustic topology optimization. The chances of identifying a better optimum can significantly be improved by running multiple partial optimizations with different neural network initializations. Furthermore, we show that the neural network material discretization's advantage comes from the interplay with the Adam optimizer and emphasize its current limitations when competing with constrained and higher-order optimization techniques. At the moment, this discretization has only been shown to be beneficial for unconstrained first-order optimization.

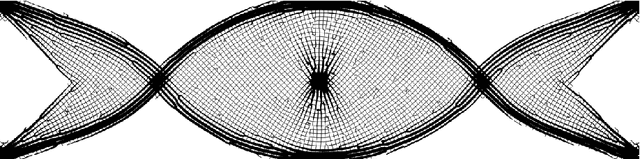

Abstract:This paper presents a deep learning-based de-homogenization method for structural compliance minimization. By using a convolutional neural network to parameterize the mapping from a set of lamination parameters on a coarse mesh to a one-scale design on a fine mesh, we avoid solving the least square problems associated with traditional de-homogenization approaches and save time correspondingly. To train the neural network, a two-step custom loss function has been developed which ensures a periodic output field that follows the local lamination orientations. A key feature of the proposed method is that the training is carried out without any use of or reference to the underlying structural optimization problem, which renders the proposed method robust and insensitive wrt. domain size, boundary conditions, and loading. A post-processing procedure utilizing a distance transform on the output field skeleton is used to project the desired lamination widths onto the output field while ensuring a predefined minimum length-scale and volume fraction. To demonstrate that the deep learning approach has excellent generalization properties, numerical examples are shown for several different load and boundary conditions. For an appropriate choice of parameters, the de-homogenized designs perform within $7-25\%$ of the homogenization-based solution at a fraction of the computational cost. With several options for further improvements, the scheme may provide the basis for future interactive high-resolution topology optimization.
