Accelerating Full Waveform Inversion By Transfer Learning

Full waveform inversion (FWI) is a powerful tool for reconstructing material fields based on sparsely measured data obtained by wave propagation. For specific problems, discretizing the material field with a neural network (NN) improves the robustness and reconstruction quality of the corresponding optimization problem. We call this method NN-based FWI. Starting from an initial guess, the weights of the NN are iteratively updated to fit the simulated wave signals to the sparsely measured data set. For gradient-based optimization, a suitable choice of the initial guess, i.e., a suitable NN weight initialization, is crucial for fast and robust convergence. In this paper, we introduce a novel transfer learning approach to further improve NN-based FWI. This approach leverages supervised pretraining to provide a better NN weight initialization, leading to faster convergence of the subsequent optimization problem. Moreover, the inversions yield physically more meaningful local minima. The network is pretrained to predict the unknown material field using the gradient information from the first iteration of conventional FWI. In our computational experiments on two-dimensional domains, the training data set consists of reference simulations with arbitrarily positioned elliptical voids of different shapes and orientations. We compare the performance of the proposed transfer learning NN-based FWI with three other methods: conventional FWI, NN-based FWI without pretraining and conventional FWI with an initial guess predicted from the pretrained NN. Our results show that transfer learning NN-based FWI outperforms the other methods in terms of convergence speed and reconstruction quality.

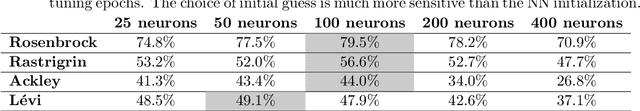

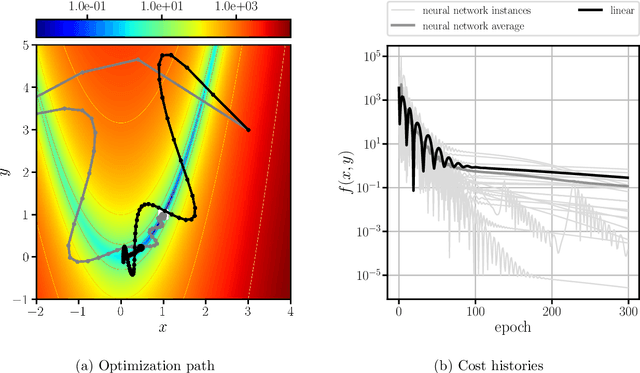

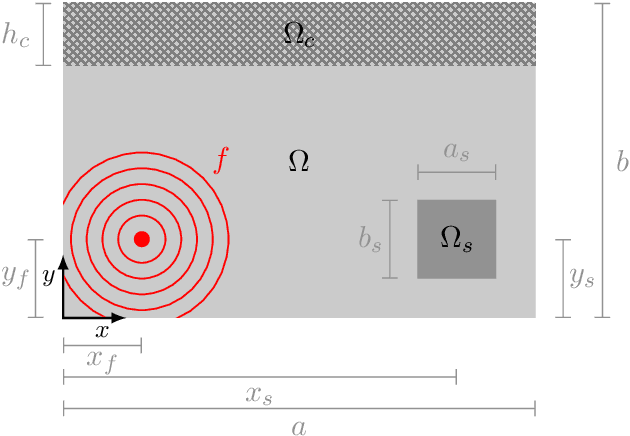

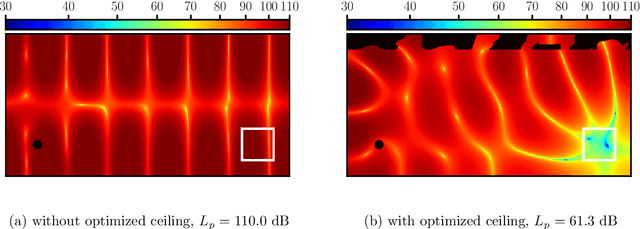

Neural Networks for Generating Better Local Optima in Topology Optimization

Neural networks have recently been employed as material discretizations within adjoint optimization frameworks for inverse problems and topology optimization. While advantageous regularization effects and better optima have been found for some inverse problems, the benefit for topology optimization has been limited -- where the focus of investigations has been the compliance problem. We demonstrate how neural network material discretizations can, under certain conditions, find better local optima in more challenging optimization problems, where we here specifically consider acoustic topology optimization. The chances of identifying a better optimum can significantly be improved by running multiple partial optimizations with different neural network initializations. Furthermore, we show that the neural network material discretization's advantage comes from the interplay with the Adam optimizer and emphasize its current limitations when competing with constrained and higher-order optimization techniques. At the moment, this discretization has only been shown to be beneficial for unconstrained first-order optimization.

Deep Learning in Deterministic Computational Mechanics

The rapid growth of deep learning research, including within the field of computational mechanics, has resulted in an extensive and diverse body of literature. To help researchers identify key concepts and promising methodologies within this field, we provide an overview of deep learning in deterministic computational mechanics. Five main categories are identified and explored: simulation substitution, simulation enhancement, discretizations as neural networks, generative approaches, and deep reinforcement learning. This review focuses on deep learning methods rather than applications for computational mechanics, thereby enabling researchers to explore this field more effectively. As such, the review is not necessarily aimed at researchers with extensive knowledge of deep learning -- instead, the primary audience is researchers at the verge of entering this field or those who attempt to gain an overview of deep learning in computational mechanics. The discussed concepts are, therefore, explained as simple as possible.

Transfer Learning Enhanced Full Waveform Inversion

We propose a way to favorably employ neural networks in the field of non-destructive testing using Full Waveform Inversion (FWI). The presented methodology discretizes the unknown material distribution in the domain with a neural network within an adjoint optimization. To further increase efficiency of the FWI, pretrained neural networks are used to provide a good starting point for the inversion. This reduces the number of iterations in the Full Waveform Inversion for specific, yet generalizable settings.
