Anomaly detection for the identification of volcanic unrest in satellite imagery

Satellite images have the potential to detect volcanic deformation prior to eruptions, but while a vast number of images are routinely acquired, only a small percentage contain volcanic deformation events. Manual inspection could miss these anomalies, and an automatic system modelled with supervised learning requires suitably labelled datasets. To tackle these issues, this paper explores the use of unsupervised deep learning on satellite data for the purpose of identifying volcanic deformation as anomalies. Our detector is based on Patch Distribution Modeling (PaDiM), and the detection performance is enhanced with a weighted distance, assigning greater importance to features from deeper layers. Additionally, we propose a preprocessing approach to handle noisy and incomplete data points. The final framework was tested with five volcanoes, which have different deformation characteristics and its performance was compared against the supervised learning method for volcanic deformation detection.

Sparse InSAR Data 3D Inpainting for Ground Deformation Detection Along the Rail Corridor

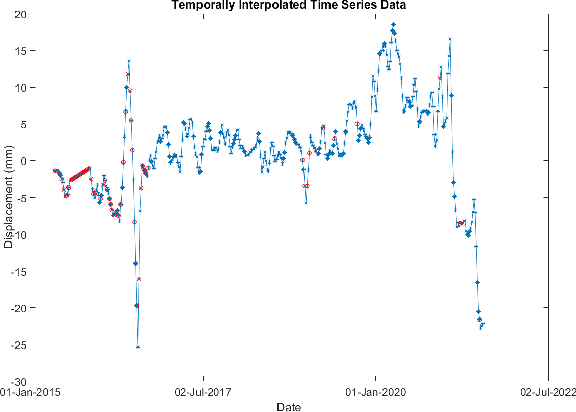

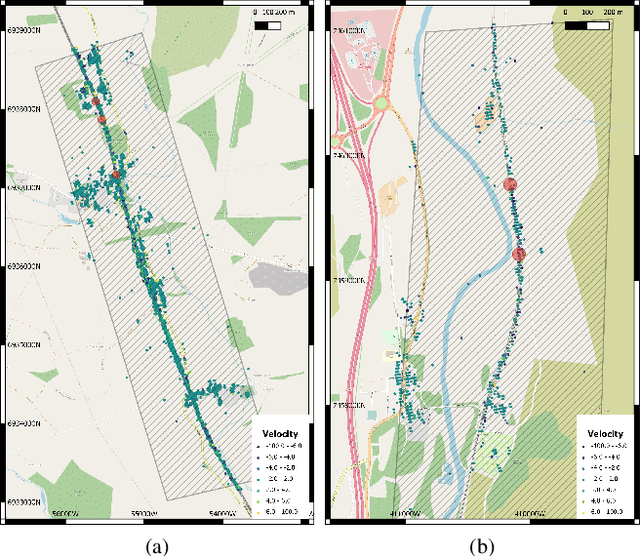

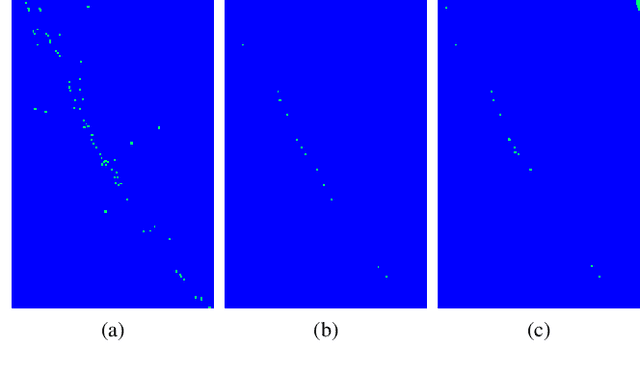

Monitoring of ground movement close to the rail corridor, such as that associated with landslips caused by ground subsidence and/or uplift, is of great interest for the detection and prevention of possible railway faults. Interferometric synthetic-aperture radar (InSAR) data can be used to measure ground deformation, but its use poses distinct challenges, as the data is highly sparse and can be particularly noisy. Here we present a scheme for processing and interpolating noisy, sparse InSAR data into a dense spatio-temporal stack, helping suppress noise and opening up the possibility for treatment with deep learning and other image processing methods.

Deep Learning Framework for Detecting Ground Deformation in the Built Environment using Satellite InSAR data

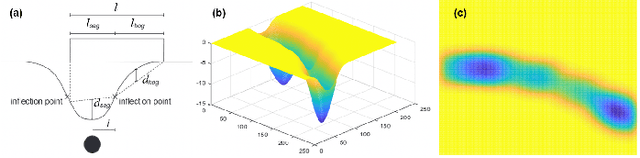

The large volumes of Sentinel-1 data produced over Europe are being used to develop pan-national ground motion services. However, simple analysis techniques like thresholding cannot detect and classify complex deformation signals reliably making providing usable information to a broad range of non-expert stakeholders a challenge. Here we explore the applicability of deep learning approaches by adapting a pre-trained convolutional neural network (CNN) to detect deformation in a national-scale velocity field. For our proof-of-concept, we focus on the UK where previously identified deformation is associated with coal-mining, ground water withdrawal, landslides and tunnelling. The sparsity of measurement points and the presence of spike noise make this a challenging application for deep learning networks, which involve calculations of the spatial convolution between images. Moreover, insufficient ground truth data exists to construct a balanced training data set, and the deformation signals are slower and more localised than in previous applications. We propose three enhancement methods to tackle these problems: i) spatial interpolation with modified matrix completion, ii) a synthetic training dataset based on the characteristics of real UK velocity map, and iii) enhanced over-wrapping techniques. Using velocity maps spanning 2015-2019, our framework detects several areas of coal mining subsidence, uplift due to dewatering, slate quarries, landslides and tunnel engineering works. The results demonstrate the potential applicability of the proposed framework to the development of automated ground motion analysis systems.

A deep learning approach to detecting volcano deformation from satellite imagery using synthetic datasets

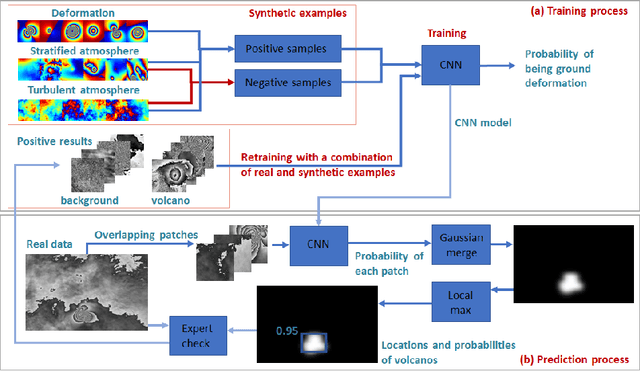

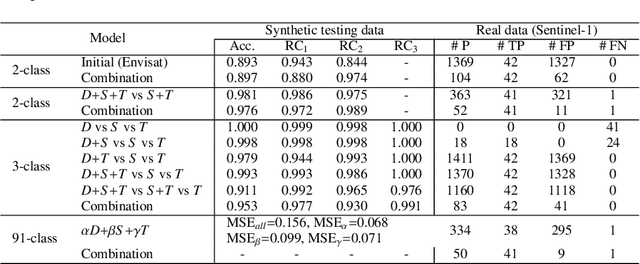

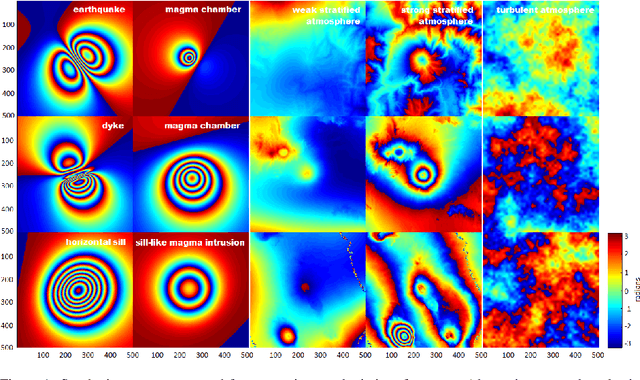

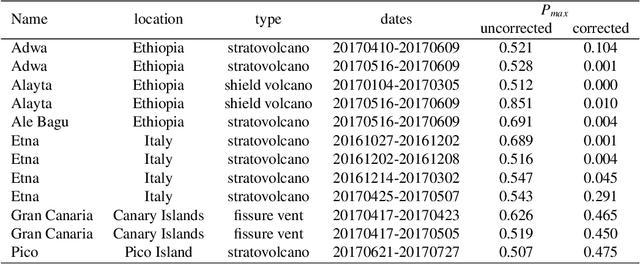

Satellites enable widespread, regional or global surveillance of volcanoes and can provide the first indication of volcanic unrest or eruption. Here we consider Interferometric Synthetic Aperture Radar (InSAR), which can be employed to detect surface deformation with a strong statistical link to eruption. The ability of machine learning to automatically identify signals of interest in these large InSAR datasets has already been demonstrated, but data-driven techniques, such as convolutional neutral networks (CNN) require balanced training datasets of positive and negative signals to effectively differentiate between real deformation and noise. As only a small proportion of volcanoes are deforming and atmospheric noise is ubiquitous, the use of machine learning for detecting volcanic unrest is more challenging. In this paper, we address this problem using synthetic interferograms to train the AlexNet. The synthetic interferograms are composed of 3 parts: 1) deformation patterns based on a Monte Carlo selection of parameters for analytic forward models, 2) stratified atmospheric effects derived from weather models and 3) turbulent atmospheric effects based on statistical simulations of correlated noise. The AlexNet architecture trained with synthetic data outperforms that trained using real interferograms alone, based on classification accuracy and positive predictive value (PPV). However, the models used to generate the synthetic signals are a simplification of the natural processes, so we retrain the CNN with a combined dataset consisting of synthetic models and selected real examples, achieving a final PPV of 82%. Although applying atmospheric corrections to the entire dataset is computationally expensive, it is relatively simple to apply them to the small subset of positive results. This further improves the detection performance without a significant increase in computational burden.
