Abstract:This paper introduces the Class-wise Principal Component Analysis, a supervised feature extraction method for hyperspectral data. Hyperspectral Imaging (HSI) has appeared in various fields in recent years, including Remote Sensing. Realizing that information extraction tasks for hyperspectral images are burdened by data-specific issues, we identify and address two major problems. Those are the Curse of Dimensionality which occurs due to the high-volume of the data cube and the class imbalance problem which is common in hyperspectral datasets. Dimensionality reduction is an essential preprocessing step to complement a hyperspectral image classification task. Therefore, we propose a feature extraction algorithm for dimensionality reduction, based on Principal Component Analysis (PCA). Evaluations are carried out on the Indian Pines dataset to demonstrate that significant improvements are achieved when using the reduced data in a classification task.

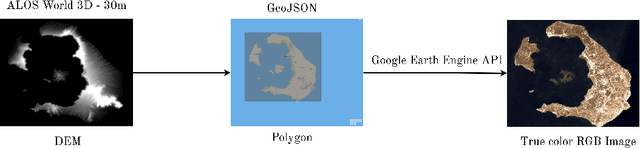

Abstract:Procedural 3D Terrain generation has become a necessity in open world games, as it can provide unlimited content, through a functionally infinite number of different areas, for players to explore. In our approach, we use Generative Adversarial Networks (GAN) to yield realistic 3D environments based on the distribution of remotely sensed images of landscapes, captured by satellites or drones. Our task consists of synthesizing a random but plausible RGB satellite image and generating a corresponding Height Map in the form of a 3D point cloud that will serve as an appropriate mesh of the landscape. For the first step, we utilize a GAN trained with satellite images that manages to learn the distribution of the dataset, creating novel satellite images. For the second part, we need a one-to-one mapping from RGB images to Digital Elevation Models (DEM). We deploy a Conditional Generative Adversarial network (CGAN), which is the state-of-the-art approach to image-to-image translation, to generate a plausible height map for every randomly generated image of the first model. Combining the generated DEM and RGB image, we are able to construct 3D scenery consisting of a plausible height distribution and colorization, in relation to the remotely sensed landscapes provided during training.
Abstract:In this paper we present our work on developing an automated system for land cover classification. This system takes a multiband satellite image of an area as input and outputs the land cover map of the area at the same resolution as the input. For this purpose convolutional machine learning models were trained in the task of predicting the land cover semantic segmentation of satellite images. This is a case of supervised learning. The land cover label data were taken from the CORINE Land Cover inventory and the satellite images were taken from the Copernicus hub. As for the model, U-Net architecture variations were applied. Our area of interest are the Ionian islands (Greece). We created a dataset from scratch covering this particular area. In addition, transfer learning from the BigEarthNet dataset [1] was performed. In [1] simple classification of satellite images into the classes of CLC is performed but not segmentation as we do. However, their models have been trained into a dataset much bigger than ours, so we applied transfer learning using their pretrained models as the first part of out network, utilizing the ability these networks have developed to extract useful features from the satellite images (we transferred a pretrained ResNet50 into a U-Res-Net). Apart from transfer learning other techniques were applied in order to overcome the limitations set by the small size of our area of interest. We used data augmentation (cutting images into overlapping patches, applying random transformations such as rotations and flips) and cross validation. The results are tested on the 3 CLC class hierarchy levels and a comparative study is made on the results of different approaches.
Abstract:The well-known technique outlined in the paper of Leon A. Gatys et al., A Neural Algorithm of Artistic Style, has become a trending topic both in academic literature and industrial applications. Neural Style Transfer (NST) constitutes an essential tool for a wide range of applications, such as artistic stylization of 2D images, user-assisted creation tools and production tools for entertainment applications. The purpose of this study is to present a method for creating artistic maps from satellite images, based on the NST algorithm. This method includes three basic steps (i) application of semantic image segmentation on the original satellite image, dividing its content into classes (i.e. land, water), (ii) application of neural style transfer for each class and (iii) creation of a collage, i.e. an artistic image consisting of a combination of the two stylized image generated on the previous step.
Abstract:In this work, very deep super-resolution (VDSR) method is presented for improving the spatial resolution of remotely sensed (RS) images for scale factor 4. The VDSR net is re-trained with Sentinel-2 images and with drone aero orthophoto images, thus becomes RS-VDSR and Aero-VDSR, respectively. A novel loss function, the Var-norm estimator, is proposed in the regression layer of the convolutional neural network during re-training and prediction. According to numerical and optical comparisons, the proposed nets RS-VDSR and Aero-VDSR can outperform VDSR during prediction with RS images. RS-VDSR outperforms VDSR up to 3.16 dB in terms of PSNR in Sentinel-2 images.
