Image and AIS Data Fusion Technique for Maritime Computer Vision Applications

Deep learning object detection methods, like YOLOv5, are effective in identifying maritime vessels but often lack detailed information important for practical applications. In this paper, we addressed this problem by developing a technique that fuses Automatic Identification System (AIS) data with vessels detected in images to create datasets. This fusion enriches ship images with vessel-related data, such as type, size, speed, and direction. Our approach associates detected ships to their corresponding AIS messages by estimating distance and azimuth using a homography-based method suitable for both fixed and periodically panning cameras. This technique is useful for creating datasets for waterway traffic management, encounter detection, and surveillance. We introduce a novel dataset comprising of images taken in various weather conditions and their corresponding AIS messages. This dataset offers a stable baseline for refining vessel detection algorithms and trajectory prediction models. To assess our method's performance, we manually annotated a portion of this dataset. The results are showing an overall association accuracy of 74.76 %, with the association accuracy for fixed cameras reaching 85.06 %. This demonstrates the potential of our approach in creating datasets for vessel detection, pose estimation and auto-labelling pipelines.

High-Level Features Parallelization for Inference Cost Reduction Through Selective Attention

In this work, we parallelize high-level features in deep networks to selectively skip or select class-specific features to reduce inference costs. This challenges most deep learning methods due to their limited ability to efficiently and effectively focus on selected class-specific features without retraining. We propose a serial-parallel hybrid architecture with serial generic low-level features and parallel high-level features. This accounts for the fact that many high-level features are class-specific rather than generic, and has connections to recent neuroscientific findings that observe spatially and contextually separated neural activations in the human brain. Our approach provides the unique functionality of cutouts: selecting parts of the network to focus on only relevant subsets of classes without requiring retraining. High performance is maintained, but the cost of inference can be significantly reduced. In some of our examples, up to $75\,\%$ of parameters are skipped and $35\,\%$ fewer GMACs (Giga multiply-accumulate) operations are used as the approach adapts to a change in task complexity. This is important for mobile, industrial, and robotic applications where reducing the number of parameters, the computational complexity, and thus the power consumption can be paramount. Another unique functionality is that it allows processing to be directly influenced by enhancing or inhibiting high-level class-specific features, similar to the mechanism of selective attention in the human brain. This can be relevant for cross-modal applications, the use of semantic prior knowledge, and/or context-aware processing.

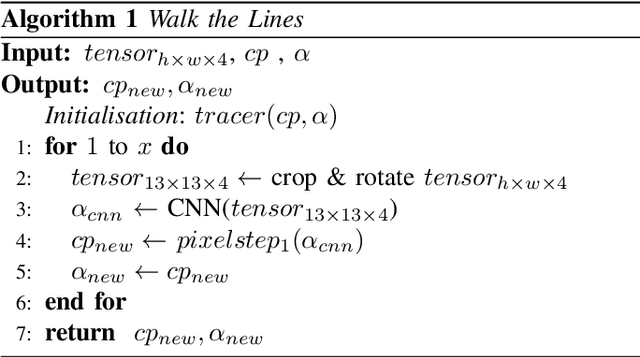

Walk the Lines: Object Contour Tracing CNN for Contour Completion of Ships

We develop a new contour tracing algorithm to enhance the results of the latest object contour detectors. The goal is to achieve a perfectly closed, 1 pixel wide and detailed object contour, since this type of contour could be analyzed using methods such as Fourier descriptors. Convolutional Neural Networks (CNNs) are rarely used for contour tracing. However, we find CNNs are tailor-made for this task and that's why we present the Walk the Lines (WtL) algorithm, a standard regression CNN trained to follow object contours. To make the first step, we train the CNN only on ship contours, but the principle is also applicable to other objects. Input data are the image and the associated object contour prediction of the recently published RefineContourNet. The WtL gets a center pixel, which defines an input section and an angle for rotating this section. Ideally, the center pixel moves on the contour, while the angle describes upcoming directional contour changes. The WtL predicts its steps pixelwise in a selfrouting way. To obtain a complete object contour the WtL runs in parallel at different image locations and the traces of its individual paths are summed. In contrast to the comparable Non-Maximum Suppression method, our approach produces connected contours with finer details. Finally, the object contour is binarized under the condition of being closed. In case all procedures work as desired, excellent ship segmentations with high IoUs are produced, showing details such as antennas and ship superstructures that are easily omitted by other segmentation methods.
