A Paradigm Shift in Mouza Map Vectorization: A Human-Machine Collaboration Approach

Efficient vectorization of hand-drawn cadastral maps, such as Mouza maps in Bangladesh, poses a significant challenge due to their complex structures. Current manual digitization methods are time-consuming and labor-intensive. Our study proposes a semi-automated approach to streamline the digitization process, saving both time and human resources. Our methodology focuses on separating the plot boundaries and plot identifiers and applying our digitization methodology to convert both of them into vectorized format. To accomplish full vectorization, Convolutional Neural Network (CNN) models are utilized for pre-processing and plot number detection along with our smoothing algorithms based on the diversity of vector maps. The CNN models are trained with our own labeled dataset, generated from the maps, and smoothing algorithms are introduced from the various observations of the map's vector formats. Further human intervention remains essential for precision. We have evaluated our methods on several maps and provided both quantitative and qualitative results with user study. The result demonstrates that our methodology outperforms the existing map digitization processes significantly.

Unmasking the Invisible: Finding Location-Specific Aggregated Air Quality Index with Smartphone-Captured Images

The prevalence and mobility of smartphones make these a widely used tool for environmental health research. However, their potential for determining aggregated air quality index (AQI) based on PM2.5 concentration in specific locations remains largely unexplored in the existing literature. In this paper, we thoroughly examine the challenges associated with predicting location-specific PM2.5 concentration using images taken with smartphone cameras. The focus of our study is on Dhaka, the capital of Bangladesh, due to its significant air pollution levels and the large population exposed to it. Our research involves the development of a Deep Convolutional Neural Network (DCNN), which we train using over a thousand outdoor images taken and annotated. These photos are captured at various locations in Dhaka, and their labels are based on PM2.5 concentration data obtained from the local US consulate, calculated using the NowCast algorithm. Through supervised learning, our model establishes a correlation index during training, enhancing its ability to function as a Picture-based Predictor of PM2.5 Concentration (PPPC). This enables the algorithm to calculate an equivalent daily averaged AQI index from a smartphone image. Unlike, popular overly parameterized models, our model shows resource efficiency since it uses fewer parameters. Furthermore, test results indicate that our model outperforms popular models like ViT and INN, as well as popular CNN-based models such as VGG19, ResNet50, and MobileNetV2, in predicting location-specific PM2.5 concentration. Our dataset is the first publicly available collection that includes atmospheric images and corresponding PM2.5 measurements from Dhaka. Our code and dataset will be made public when publishing the paper.

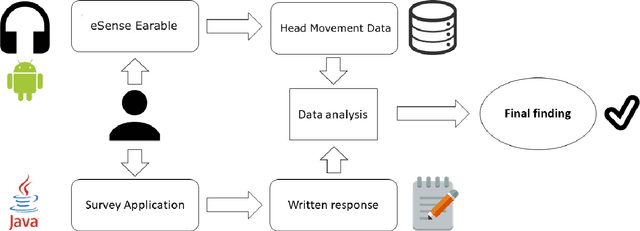

As You Are, So Shall You Move Your Head: A System-Level Analysis between Head Movements and Corresponding Traits and Emotions

Identifying physical traits and emotions based on system-sensed physical activities is a challenging problem in the realm of human-computer interaction. Our work contributes in this context by investigating an underlying connection between head movements and corresponding traits and emotions. To do so, we utilize a head movement measuring device called eSense, which gives acceleration and rotation of a head. Here, first, we conduct a thorough study over head movement data collected from 46 persons using eSense while inducing five different emotional states over them in isolation. Our analysis reveals several new head movement based findings, which in turn, leads us to a novel unified solution for identifying different human traits and emotions through exploiting machine learning techniques over head movement data. Our analysis confirms that the proposed solution can result in high accuracy over the collected data. Accordingly, we develop an integrated unified solution for real-time emotion and trait identification using head movement data leveraging outcomes of our analysis.
