EPI-based Oriented Relation Networks for Light Field Depth Estimation

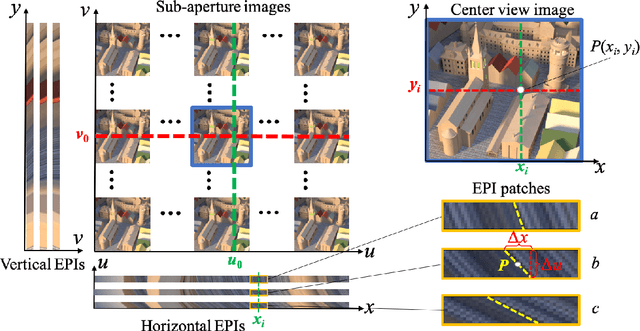

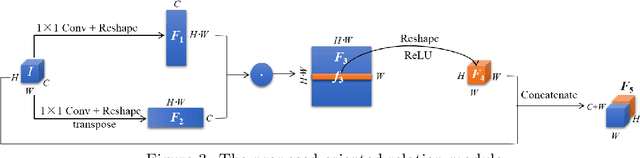

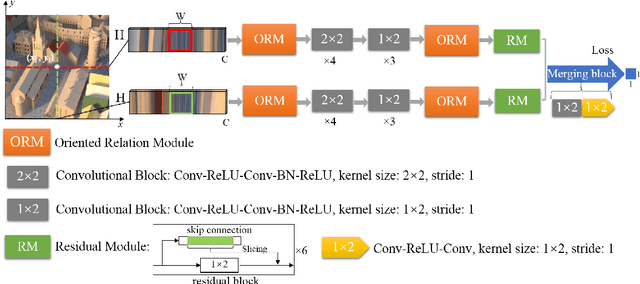

Light fields record not only the spatial information of observed scenes but also the directions of all incoming light rays. The spatial information and angular information implicitly contain the geometrical characteristics such as multi-view geometry or epipolar geometry, which can be exploited to improve the performance of depth estimation. Epipolar Plane Image (EPI), the unique 2D spatial-angular slice of the light field, contains patterns of oriented lines. The slope of these lines is associated with the disparity. Benefit from this property of EPIs, some representative methods estimate depth maps by analyzing the disparity of each line in EPIs. However, these methods often extract the optimal slope of the lines from EPIs while ignoring the relationship between neighboring pixels, which leads to inaccurate depth map predictions. Based on the observation that the similar linear structure between the oriented lines and their neighboring pixels, we propose an end-to-end fully convolutional network (FCN) to estimate the depth value of the intersection point on the horizontal and vertical EPIs. Specifically, we present a new feature extraction module, called Oriented Relation Module (ORM), that constructs the relationship between the line orientations. To facilitate training, we also propose a refocusing-based data augmentation method to obtain different slopes from EPIs of the same scene point. Extensive experiments verify the efficacy of learning relations and show that our approach is competitive to other state-of-the-art methods.
