A tunable binaural audio telepresence system capable of balancing immersive and enhanced modes

Binaural Audio Telepresence (BAT) aims to encode the acoustic scene at the far end into binaural signals for the user at the near end. BAT encompasses an immense range of applications that can vary between two extreme modes of Immersive BAT (I-BAT) and Enhanced BAT (E-BAT). With I-BAT, our goal is to preserve the full ambience as if we were at the far end, while with E-BAT, our goal is to enhance the far-end conversation with significantly improved speech quality and intelligibility. To this end, this paper presents a tunable BAT system to vary between these two AT modes with a desired application-specific balance. Microphone signals are converted into binaural signals with prescribed ambience factor. A novel Spatial COherence REpresentation (SCORE) is proposed as an input feature for model training so that the network remains robust to different array setups. Experimental results demonstrated the superior performance of the proposed BAT, even when the array configurations were not included in the training phase.

Spatial-Temporal Activity-Informed Diarization and Separation

A robust multichannel speaker diarization and separation system is proposed by exploiting the spatio-temporal activity of the speakers. The system is realized in a hybrid architecture that combines the array signal processing units and the deep learning units. For speaker diarization, a spatial coherence matrix across time frames is computed based on the whitened relative transfer functions (wRTFs) of the microphone array. This serves as a robust feature for subsequent machine learning without the need for prior knowledge of the array configuration. A computationally efficient Spatial Activity-driven Speaker Diarization network (SASDnet) is constructed to estimate the speaker activity directly from the spatial coherence matrix. For speaker separation, we propose the Global and Local Activity-driven Speaker Extraction network (GLASEnet) to separate speaker signals via speaker-specific global and local spatial activity functions. The local spatial activity functions depend on the coherence between the wRTFs of each time-frequency bin and the target speaker-dominant bins. The global spatial activity functions are computed from the global spatial coherence functions based on frequency-averaged local spatial activity functions. Experimental results have demonstrated superior speaker, diarization, counting, and separation performance achieved by the proposed system with low computational complexity compared to the pre-selected baselines.

Learning-based Array Configuration-Independent Binaural Audio Telepresence with Scalable Signal Enhancement and Ambience Preservation

Audio Telepresence (AT) aims to create an immersive experience of the audio scene at the far end for the user(s) at the near end. The application of AT could encompass scenarios with varying degrees of emphasis on signal enhancement and ambience preservation. It is desirable for an AT system to be scalable between these two extremes. To this end, we propose an array-based Binaural AT (BAT) system using the DeepFilterNet as the backbone to convert the array microphone signals into the Head-Related Transfer Function (HRTF)-filtered signals, with a tunable weighting between signal enhancement and ambience preservation. An array configuration-independent Spatial COherence REpresentation (SCORE) feature is proposed for the model training so that the network remains robust to different array geometries and sensor counts. magnitude-weighted Interaural Phase Difference error (mw-IPDe), magnitude-weighted Interaural Level Difference error (mw-ILDe), and modified Scale-Invariant Signal-to-Distortion Ratio (mSI-SDR) are defined as performance metrics for objective evaluation. Subjective listening tests were also performed to validate the proposed BAT system. The results have shown that the proposed BAT system can achieve superior telepresence performance with the desired balance between signal enhancement and ambience preservation, even when the array configurations are unseen in the training phase.

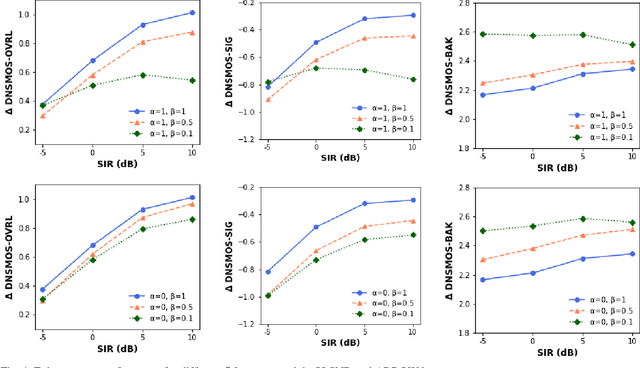

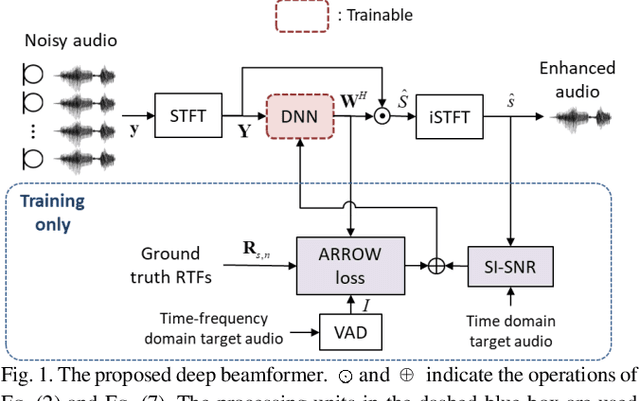

Deep Beamforming for Speech Enhancement and Speaker Localization with an Array Response-Aware Loss Function

Recent research advances in deep neural network (DNN)-based beamformers have shown great promise for speech enhancement under adverse acoustic conditions. Different network architectures and input features have been explored in estimating beamforming weights. In this paper, we propose a deep beamformer based on an efficient convolutional recurrent network (CRN) trained with a novel ARray RespOnse-aWare (ARROW) loss function. The ARROW loss exploits the array responses of the target and interferer by using the ground truth relative transfer functions (RTFs). The DNN-based beamforming system, trained with ARROW loss through supervised learning, is able to perform speech enhancement and speaker localization jointly. Experimental results have shown that the proposed deep beamformer, trained with the linearly weighted scale-invariant source-to-noise ratio (SI-SNR) and ARROW loss functions, achieves superior performance in speech enhancement and speaker localization compared to two baselines.

Array Configuration-Agnostic Personal Voice Activity Detection Based on Spatial Coherence

Personal voice activity detection has received increased attention due to the growing popularity of personal mobile devices and smart speakers. PVAD is often an integral element to speech enhancement and recognition for these applications in which lightweight signal processing is only enabled for the target user. However, in real-world scenarios, the detection performance may degrade because of competing speakers, background noise, and reverberation. To address this problem, we proposed to use equivalent rectangular bandwidth ERB-scaled spatial coherence as the input feature to train an array configuration-agnostic PVAD network. Whereas the network model requires only 112k parameters, it exhibits excellent detection performance and robustness in adverse acoustic conditions. Notably, the proposed ARCA-PVAD system is scalable to array configurations. Experimental results have demonstrated the superior performance achieved by the proposed ARCA-PVAD system over a baseline in terms of the area under receiver operating characteristic curve and equal error rate.

Learning-based Robust Speaker Counting and Separation with the Aid of Spatial Coherence

A two-stage approach is proposed for speaker counting and speech separation in noisy and reverberant environments. A spatial coherence matrix (SCM) is computed using whitened relative transfer functions (wRTFs) across time frames. The global activity functions of each speaker are estimated on the basis of a simplex constructed using the eigenvectors of the SCM, while the local coherence functions are computed from the coherence between the wRTFs of a time-frequency bin and the global activity function-weighted RTF of the target speaker. In speaker counting, we use the eigenvalues of the SCM and the maximum similarity of the interframe global activity distributions between two speakers as the input features to the speaker counting network (SCnet). In speaker separation, a global and local activity-driven network (GLADnet) is utilized to estimate a speaker mask, which is particularly useful for highly overlapping speech signals. Experimental results obtained from the real meeting recordings demonstrated the superior speaker counting and speaker separation performance achieved by the proposed learning-based system without prior knowledge of the array configurations.

Array Configuration-Agnostic Personalized Speech Enhancement using Long-Short-Term Spatial Coherence

Personalized speech enhancement has been a field of active research for suppression of speechlike interferers such as competing speakers or TV dialogues. Compared with single channel approaches, multichannel PSE systems can be more effective in adverse acoustic conditions by leveraging the spatial information in microphone signals. However, the implementation of multichannel PSEs to accommodate a wide range of array topology in household applications can be challenging. To develop an array configuration agnostic PSE system, we define a spatial feature termed the long short term spatial coherence as the input feature to a convolutional recurrent network to monitor the voice activity of the target speaker. As another refinement, an equivalent rectangular bandwidth scaled LSTSC feature can be used to reduce the computational cost. Experiments were conducted to compare the proposed PSE systems, including the complete and the simplified versions with two baselines using unseen room responses and array configurations in the presence of TV noise and competing speakers. The results demonstrated that the proposed multichannel PSE network trained with the LSTSC feature achieved superior enhancement performance without precise knowledge of the array configurations and room responses.

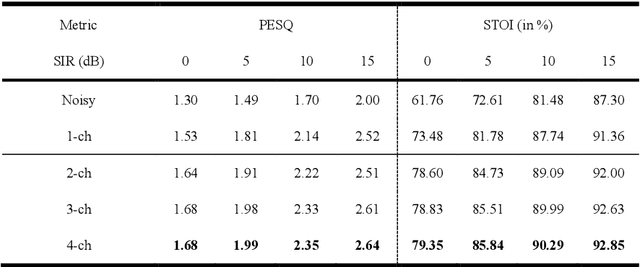

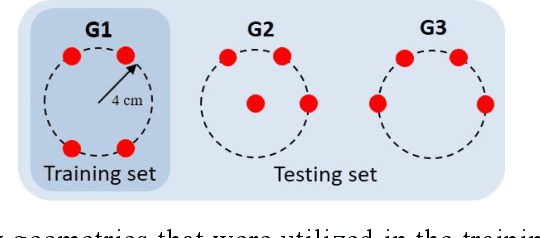

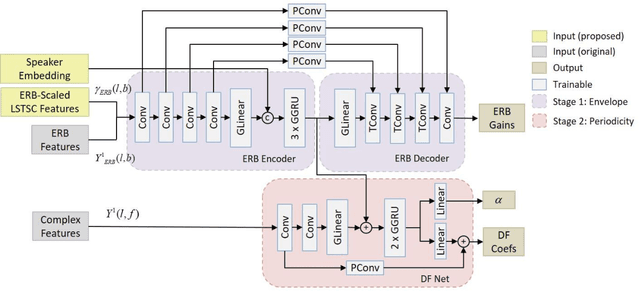

Multi-channel target speech enhancement based on ERB-scaled spatial coherence features

Recently, speech enhancement technologies that are based on deep learning have received considerable research attention. If the spatial information in microphone signals is exploited, microphone arrays can be advantageous under some adverse acoustic conditions compared with single-microphone systems. However, multichannel speech enhancement is often performed in the short-time Fourier transform (STFT) domain, which renders the enhancement approach computationally expensive. To remedy this problem, we propose a novel equivalent rectangular bandwidth (ERB)-scaled spatial coherence feature that is dependent on the target speaker activity between two ERB bands. Experiments conducted using a four-microphone array in a reverberant environment, which involved speech interference, demonstrated the efficacy of the proposed system. This study also demonstrated that a network that was trained with the ERB-scaled spatial feature was robust against variations in the geometry and number of the microphones in the array.

Multi-channel end-to-end neural network for speech enhancement, source localization, and voice activity detection

Speech enhancement and source localization has been active research for several decades with a wide range of real-world applications. Recently, the Deep Complex Convolution Recurrent network (DCCRN) has yielded impressive enhancement performance for single-channel systems. In this study, a neural beamformer consisting of a beamformer and a novel multi-channel DCCRN is proposed for speech enhancement and source localization. Complex-valued filters estimated by the multi-channel DCCRN serve as the weights of beamformer. In addition, a one-stage learning-based procedure is employed for speech enhancement and source localization. The proposed network composed of the multi-channel DCCRN and the auxiliary network models the sound field, while minimizing the distortionless response loss function. Simulation results show that the proposed neural beamformer is effective in enhancing speech signals, with speech quality well preserved. The proposed neural beamformer also provides source localization and voice activity detection (VAD) functions.

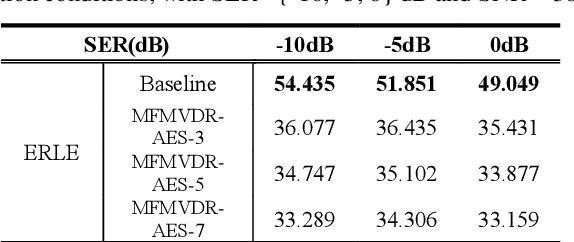

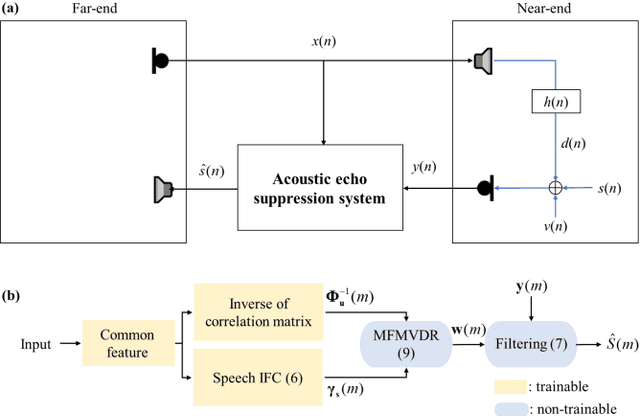

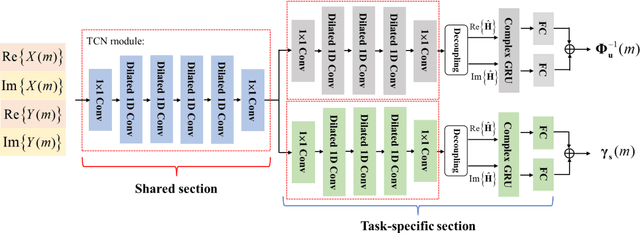

Acoustic echo suppression using a learning-based multi-frame minimum variance distortionless response filter

Distortion resulting from acoustic echo suppression (AES) is a common issue in full-duplex communication. To address the distortion problem, a multi-frame minimum variance distortionless response (MFMVDR) filtering technique is proposed. The MFMVDR filter with parameter estimation which was used in speech enhancement problems is extended in this study from a deep learning perspective. To alleviate numerical instability of the MFMVDR filter, we propose to directly estimate the inverse of the correlation matrix. The AES system is advantageous in that no double-talk detection is required. The negative scale-invariant signal-to-distortion ratio is employed as the loss function in training the network at the output of the MFMVDR filter. Simulation results have demonstrated the efficacy of the proposed learning-based AES system in double-talk, background noise, and nonlinear distortion conditions.
