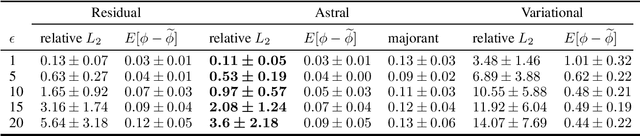

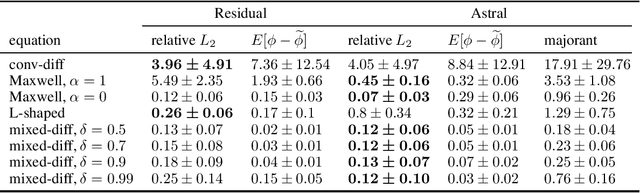

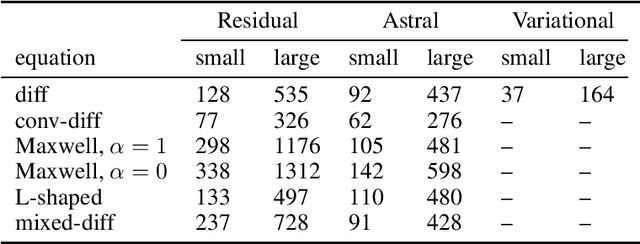

Astral: training physics-informed neural networks with error majorants

The primal approach to physics-informed learning is a residual minimization. We argue that residual is, at best, an indirect measure of the error of approximate solution and propose to train with error majorant instead. Since error majorant provides a direct upper bound on error, one can reliably estimate how close PiNN is to the exact solution and stop the optimization process when the desired accuracy is reached. We call loss function associated with error majorant $\textbf{Astral}$: neur$\textbf{A}$l a po$\textbf{ST}$erio$\textbf{RI}$ function$\textbf{A}$l Loss. To compare Astral and residual loss functions, we illustrate how error majorants can be derived for various PDEs and conduct experiments with diffusion equations (including anisotropic and in the L-shaped domain), convection-diffusion equation, temporal discretization of Maxwell's equation, and magnetostatics problem. The results indicate that Astral loss is competitive to the residual loss, typically leading to faster convergence and lower error (e.g., for Maxwell's equations, we observe an order of magnitude better relative error and training time). We also report that the error estimate obtained with Astral loss is usually tight enough to be informative, e.g., for a highly anisotropic equation, on average, Astral overestimates error by a factor of $1.5$, and for convection-diffusion by a factor of $1.7$.

Neural Multigrid Architectures

We propose a convenient matrix-free neural architecture for the multigrid method. The architecture is simple enough to be implemented in less than fifty lines of code, yet it encompasses a large number of distinct multigrid solvers. We argue that a fixed neural network without dense layers can not realize an efficient iterative method. Because of that, standard training protocols do not lead to competitive solvers. To overcome this difficulty, we use parameter sharing and serialization of layers. The resulting network can be trained on linear problems with thousands of unknowns and retains its efficiency on problems with millions of unknowns. From the point of view of numerical linear algebra network's training corresponds to finding optimal smoothers for the geometric multigrid method. We demonstrate our approach on a few second-order elliptic equations. For tested linear systems, we obtain from two to five times smaller spectral radius of the error propagation matrix compare to a basic linear multigrid with Jacobi smoother.
