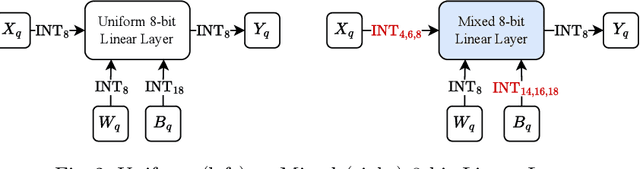

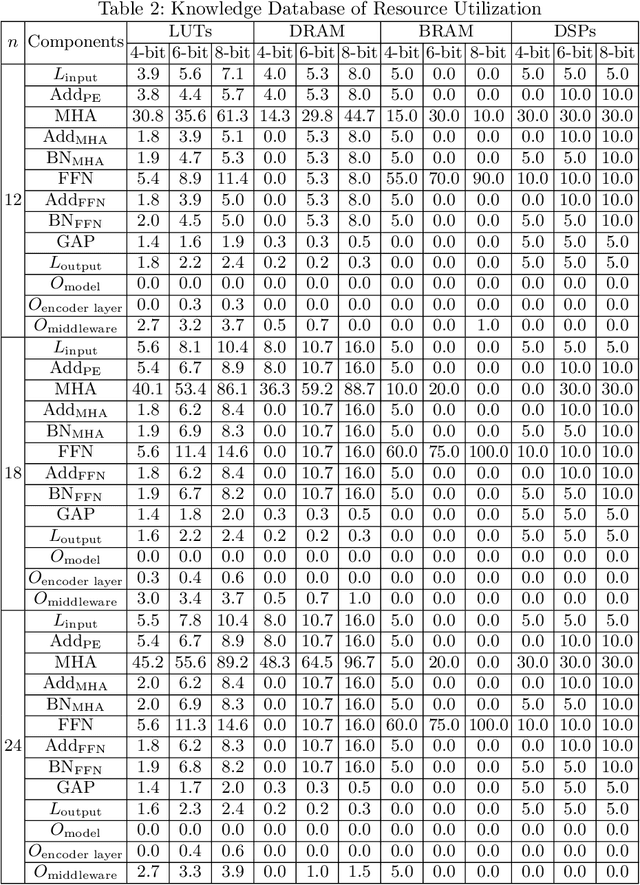

Resource-aware Mixed-precision Quantization for Enhancing Deployability of Transformers for Time-series Forecasting on Embedded FPGAs

This study addresses the deployment challenges of integer-only quantized Transformers on resource-constrained embedded FPGAs (Xilinx Spartan-7 XC7S15). We enhanced the flexibility of our VHDL template by introducing a selectable resource type for storing intermediate results across model layers, thereby breaking the deployment bottleneck by utilizing BRAM efficiently. Moreover, we developed a resource-aware mixed-precision quantization approach that enables researchers to explore hardware-level quantization strategies without requiring extensive expertise in Neural Architecture Search. This method provides accurate resource utilization estimates with a precision discrepancy as low as 3%, compared to actual deployment metrics. Compared to previous work, our approach has successfully facilitated the deployment of model configurations utilizing mixed-precision quantization, thus overcoming the limitations inherent in five previously non-deployable configurations with uniform quantization bitwidths. Consequently, this research enhances the applicability of Transformers in embedded systems, facilitating a broader range of Transformer-powered applications on edge devices.

On-device AI: Quantization-aware Training of Transformers in Time-Series

Artificial Intelligence (AI) models for time-series in pervasive computing keep getting larger and more complicated. The Transformer model is by far the most compelling of these AI models. However, it is difficult to obtain the desired performance when deploying such a massive model on a sensor device with limited resources. My research focuses on optimizing the Transformer model for time-series forecasting tasks. The optimized model will be deployed as hardware accelerators on embedded Field Programmable Gate Arrays (FPGAs). I will investigate the impact of applying Quantization-aware Training to the Transformer model to reduce its size and runtime memory footprint while maximizing the advantages of FPGAs.

Data-driven Modeling of Combined Sewer Systems for Urban Sustainability: An Empirical Evaluation

Climate change poses complex challenges, with extreme weather events becoming increasingly frequent and difficult to model. Examples include the dynamics of Combined Sewer Systems (CSS). Overburdened CSS during heavy rainfall will overflow untreated wastewater into surface water bodies. Classical approaches to modeling the impact of extreme rainfall events rely on physical simulations, which are particularly challenging to create for large urban infrastructures. Deep Learning (DL) models offer a cost-effective alternative for modeling the complex dynamics of sewer systems. In this study, we present a comprehensive empirical evaluation of several state-of-the-art DL time series models for predicting sewer system dynamics in a large urban infrastructure, utilizing three years of measurement data. We especially investigate the potential of DL models to maintain predictive precision during network outages by comparing global models, which have access to all variables within the sewer system, and local models, which are limited to data from a restricted set of local sensors. Our findings demonstrate that DL models can accurately predict the dynamics of sewer system load, even under network outage conditions. These results suggest that DL models can effectively aid in balancing the load redistribution in CSS, thereby enhancing the sustainability and resilience of urban infrastructures.

Towards Auto-Building of Embedded FPGA-based Soft Sensors for Wastewater Flow Estimation

Executing flow estimation using Deep Learning (DL)-based soft sensors on resource-limited IoT devices has demonstrated promise in terms of reliability and energy efficiency. However, its application in the field of wastewater flow estimation remains underexplored due to: (1) a lack of available datasets, (2) inconvenient toolchains for on-device AI model development and deployment, and (3) hardware platforms designed for general DL purposes rather than being optimized for energy-efficient soft sensor applications. This study addresses these gaps by proposing an automated, end-to-end solution for wastewater flow estimation using a prototype IoT device.

FlowPrecision: Advancing FPGA-Based Real-Time Fluid Flow Estimation with Linear Quantization

In industrial and environmental monitoring, achieving real-time and precise fluid flow measurement remains a critical challenge. This study applies linear quantization in FPGA-based soft sensors for fluid flow estimation, significantly enhancing Neural Network model precision by overcoming the limitations of traditional fixed-point quantization. Our approach achieves up to a 10.10% reduction in Mean Squared Error and a notable 9.39% improvement in inference speed through targeted hardware optimizations. Validated across multiple data sets, our findings demonstrate that the optimized FPGA-based quantized models can provide efficient, accurate real-time inference, offering a viable alternative to cloud-based processing in pervasive autonomous systems.

On-Device Soft Sensors: Real-Time Fluid Flow Estimation from Level Sensor Data

Soft sensors are crucial in bridging autonomous systems' physical and digital realms, enhancing sensor fusion and perception. Instead of deploying soft sensors on the Cloud, this study shift towards employing on-device soft sensors, promising heightened efficiency and bolstering data security. Our approach substantially improves energy efficiency by deploying Artificial Intelligence (AI) directly on devices within a wireless sensor network. Furthermore, the synergistic integration of the Microcontroller Unit and Field-Programmable Gate Array (FPGA) leverages the rapid AI inference capabilities of the latter. Empirical evidence from our real-world use case demonstrates that FPGA-based soft sensors achieve inference times ranging remarkably from 1.04 to 12.04 microseconds. These compelling results highlight the considerable potential of our innovative approach for executing real-time inference tasks efficiently, thereby presenting a feasible alternative that effectively addresses the latency challenges intrinsic to Cloud-based deployments.

A Study of Quantisation-aware Training on Time Series Transformer Models for Resource-constrained FPGAs

This study explores the quantisation-aware training (QAT) on time series Transformer models. We propose a novel adaptive quantisation scheme that dynamically selects between symmetric and asymmetric schemes during the QAT phase. Our approach demonstrates that matching the quantisation scheme to the real data distribution can reduce computational overhead while maintaining acceptable precision. Moreover, our approach is robust when applied to real-world data and mixed-precision quantisation, where most objects are quantised to 4 bits. Our findings inform model quantisation and deployment decisions while providing a foundation for advancing quantisation techniques.
