CriSp: Leveraging Tread Depth Maps for Enhanced Crime-Scene Shoeprint Matching

Shoeprints are a common type of evidence found at crime scenes and are used regularly in forensic investigations. However, existing methods cannot effectively employ deep learning techniques to match noisy and occluded crime-scene shoeprints to a shoe database due to a lack of training data. Moreover, all existing methods match crime-scene shoeprints to clean reference prints, yet our analysis shows matching to more informative tread depth maps yields better retrieval results. The matching task is further complicated by the necessity to identify similarities only in corresponding regions (heels, toes, etc) of prints and shoe treads. To overcome these challenges, we leverage shoe tread images from online retailers and utilize an off-the-shelf predictor to estimate depth maps and clean prints. Our method, named CriSp, matches crime-scene shoeprints to tread depth maps by training on this data. CriSp incorporates data augmentation to simulate crime-scene shoeprints, an encoder to learn spatially-aware features, and a masking module to ensure only visible regions of crime-scene prints affect retrieval results. To validate our approach, we introduce two validation sets by reprocessing existing datasets of crime-scene shoeprints and establish a benchmarking protocol for comparison. On this benchmark, CriSp significantly outperforms state-of-the-art methods in both automated shoeprint matching and image retrieval tailored to this task.

ShoeRinsics: Shoeprint Prediction for Forensics with Intrinsic Decomposition

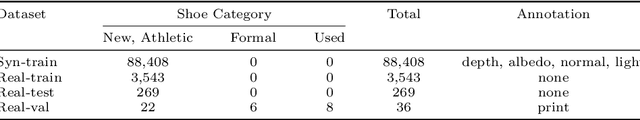

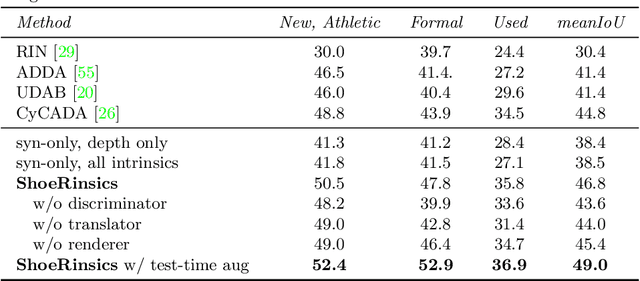

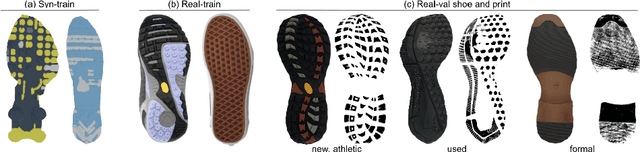

Shoe tread impressions are one of the most common types of evidence left at crime scenes. However, the utility of such evidence is limited by the lack of databases of footwear impression patterns that cover the huge and growing number of distinct shoe models. We propose to address this gap by leveraging shoe tread photographs collected by online retailers. The core challenge is to predict the impression pattern from the shoe photograph since ground-truth impressions or 3D shapes of tread patterns are not available. We develop a model that performs intrinsic image decomposition (predicting depth, normal, albedo, and lighting) from a single tread photo. Our approach, which we term ShoeRinsics, combines domain adaptation and re-rendering losses in order to leverage a mix of fully supervised synthetic data and unsupervised retail image data. To validate model performance, we also collected a set of paired shoe-sole images and corresponding prints, and define a benchmarking protocol to quantify the accuracy of predicted impressions. On this benchmark, ShoeRinsics outperforms existing methods for depth prediction and synthetic-to-real domain adaptation.
