Abstract:This paper applies probabilistic amplitude shaping (PAS) to a cyclic redundancy check (CRC) aided trellis coded modulation (TCM) to achieve the short-blocklength random coding union (RCU) bound. In the transmitter, the equally likely message bits are first encoded by distribution matcher to generate amplitude symbols with the desired distribution. The binary representations of the distribution matcher outputs are then encoded by a CRC. Finally, the CRC-encoded bits are encoded and modulated by Ungerboeck's TCM scheme, which consists of a $\frac{k_0}{k_0+1}$ systematic tail-biting convolutional code and a mapping function that maps coded bits to channel signals with capacity-achieving distribution. This paper proves that, for the proposed transmitter, the CRC bits have uniform distribution and that the channel signals have symmetric distribution. In the receiver, the serial list Viterbi decoding (S-LVD) is used to estimate the information bits. Simulation results show that, for the proposed CRC-TCM-PAS system with 87 input bits and 65-67 8-AM coded output symbols, the decoding performance under additive white Gaussian noise channel achieves the RCU bound with properly designed CRC and convolutional codes.

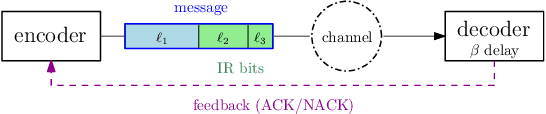

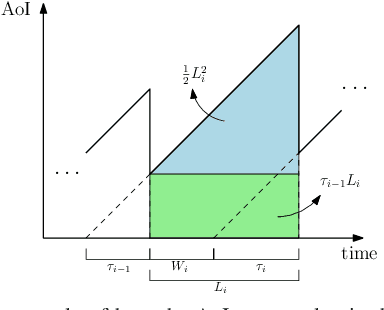

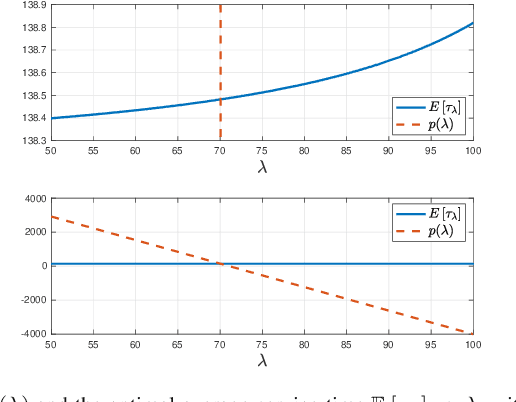

Abstract:A status updating system is considered in which a variable length code is used to transmit messages to a receiver over a noisy channel. The goal is to optimize the codewords lengths such that successfully-decoded messages are timely. That is, such that the age-of-information (AoI) at the receiver is minimized. A hybrid ARQ (HARQ) scheme is employed, in which variable-length incremental redundancy (IR) bits are added to the originally-transmitted codeword until decoding is successful. With each decoding attempt, a non-zero processing delay is incurred. The optimal codewords lengths are analytically derived utilizing a sequential differential optimization (SDO) framework. The framework is general in that it only requires knowledge of an analytical expression of the positive feedback (ACK) probability as a function of the codeword length.
