Multi-Staged Framework for Safety Analysis of Offloaded Services in Distributed Intelligent Transportation Systems

The integration of service-oriented architectures (SOA) with function offloading for distributed, intelligent transportation systems (ITS) offers the opportunity for connected autonomous vehicles (CAVs) to extend their locally available services. One major goal of offloading a subset of functions in the processing chain of a CAV to remote devices is to reduce the overall computational complexity on the CAV. The extension of using remote services, however, requires careful safety analysis, since the remotely created data are corrupted more easily, e.g., through an attacker on the remote device or by intercepting the wireless transmission. To tackle this problem, we first analyze the concept of SOA for distributed environments. From this, we derive a safety framework that validates the reliability of remote services and the data received locally. Since it is possible for the autonomous driving task to offload multiple different services, we propose a specific multi-staged framework for safety analysis dependent on the service composition of local and remote services. For efficiency reasons, we directly include the multi-staged framework for safety analysis in our service-oriented function offloading framework (SOFOF) that we have proposed in earlier work. The evaluation compares the performance of the extended framework considering computational complexity, with energy savings being a major motivation for function offloading, and its capability to detect data from corrupted remote services.

Dynamic Objective MPC for Motion Planning of Seamless Docking Maneuvers

Automated vehicles and logistics robots must often position themselves in narrow environments with high precision in front of a specific target, such as a package or their charging station. Often, these docking scenarios are solved in two steps: path following and rough positioning followed by a high-precision motion planning algorithm. This can generate suboptimal trajectories caused by bad positioning in the first phase and, therefore, prolong the time it takes to reach the goal. In this work, we propose a unified approach, which is based on a Model Predictive Control (MPC) that unifies the advantages of Model Predictive Contouring Control (MPCC) with a Cartesian MPC to reach a specific goal pose. The paper's main contributions are the adaption of the dynamic weight allocation method to reach path ends and goal poses inside driving corridors, and the development of the so-called dynamic objective MPC. The latter is an improvement of the dynamic weight allocation method, which can inherently switch state-dependent from an MPCC to a Cartesian MPC to solve the path-following problem and the high-precision positioning tasks independently of the location of the goal pose seamlessly by one algorithm. This leads to foresighted, feasible, and safe motion plans, which can decrease the mission time and result in smoother trajectories.

Self-Assessment of Evidential Grid Map Fusion for Robust Motion Planning

Conflicting sensor measurements pose a huge problem for the environment representation of an autonomous robot. Therefore, in this paper, we address the self-assessment of an evidential grid map in which data from conflicting LiDAR sensor measurements are fused, followed by methods for robust motion planning under these circumstances. First, conflicting measurements aggregated in Subjective-Logic-based evidential grid maps are classified. Then, a self-assessment framework evaluates these conflicts and estimates their severity for the overall system by calculating a degradation score. This enables the detection of calibration errors and insufficient sensor setups. In contrast to other motion planning approaches, the information gained from the evidential grid maps is further used inside our proposed path-planning algorithm. Here, the impact of conflicting measurements on the current motion plan is evaluated, and a robust and curious path-planning strategy is derived to plan paths under the influence of conflicting data. This ensures that the system integrity is maintained in severely degraded environment representations which can prevent the unnecessary abortion of planning tasks.

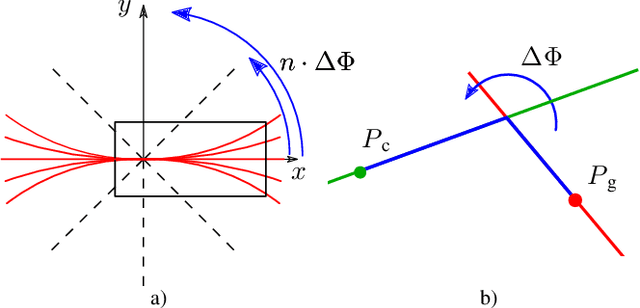

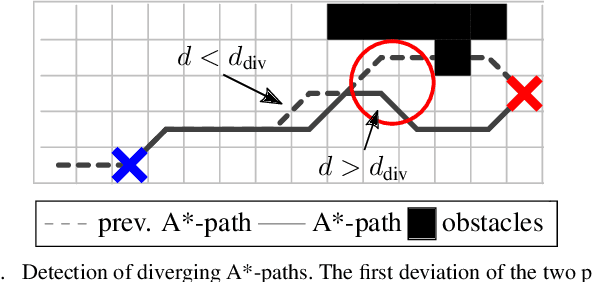

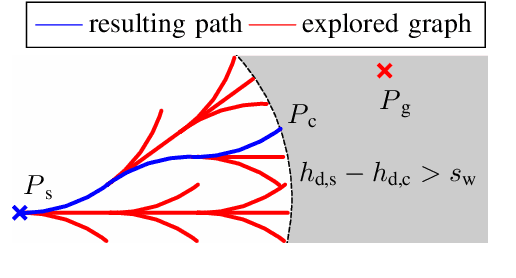

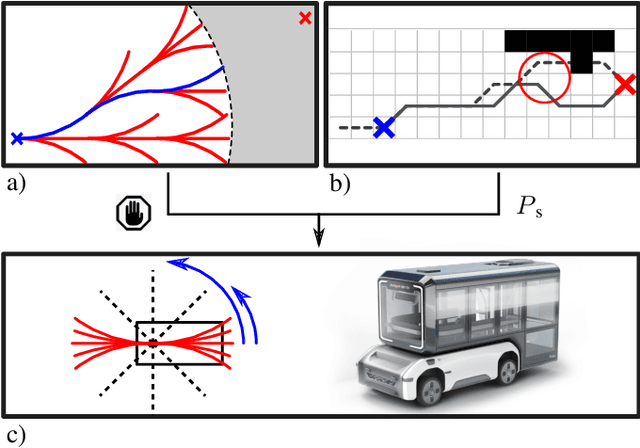

Efficient Path Planning in Large Unknown Environments with Switchable System Models for Automated Vehicles

Large environments are challenging for path planning algorithms as the size of the configuration space increases. Furthermore, if the environment is mainly unexplored, large amounts of the path are planned through unknown areas. Hence, a complete replanning of the entire path occurs whenever the path collides with newly discovered obstacles. We propose a novel method that stops the path planning algorithm after a certain distance. It is used to navigate the algorithm in large environments and is not prone to problems of existing navigation approaches. Furthermore, we developed a method to detect significant environment changes to allow a more efficient replanning. At last, we extend the path planner to be used in the U-Shift concept vehicle. It can switch to another system model and rotate around the center of its rear axis. The results show that the proposed methods generate nearly identical paths compared to the standard Hybrid A* while drastically reducing the execution time. Furthermore, we show that the extended path planning algorithm enables the efficient use of the maneuvering capabilities of the concept vehicle to plan concise paths in narrow environments.
