Sparsity-Aware Deep Learning for Automatic 4D Facial Expression Recognition

In this paper, we present a sparsity-aware deep network for automatic 4D facial expression recognition (FER). Given 4D data, we first propose a novel augmentation method to combat the data limitation problem for deep learning. This is achieved by projecting the input data into RGB and depth map images and then iteratively performing channel concatenation. Encoded in the given 3D landmarks, we also introduce TOP-landmarks over multi-views, an effective way to capture the facial muscle movements from three orthogonal planes. Importantly, we then present a sparsity-aware network to compute the sparse representations of convolutional features over multi-views for a significant and computationally convenient deep learning. For training, the TOP-landmarks and sparse representations are used to train a long short-term memory (LSTM) network. The refined predictions are achieved when the learned features collaborate over multi-views. Extensive experimental results achieved on the BU-4DFE dataset show the significance of our method over the state-of-the-art methods by reaching a promising accuracy of 99.69% for 4D FER.

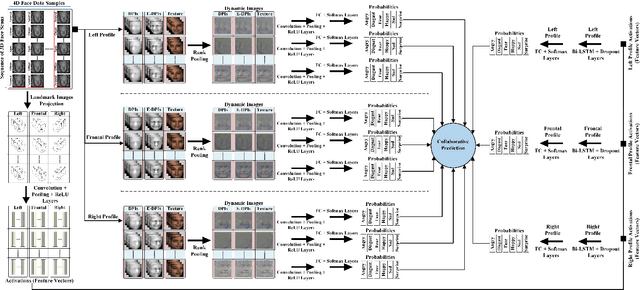

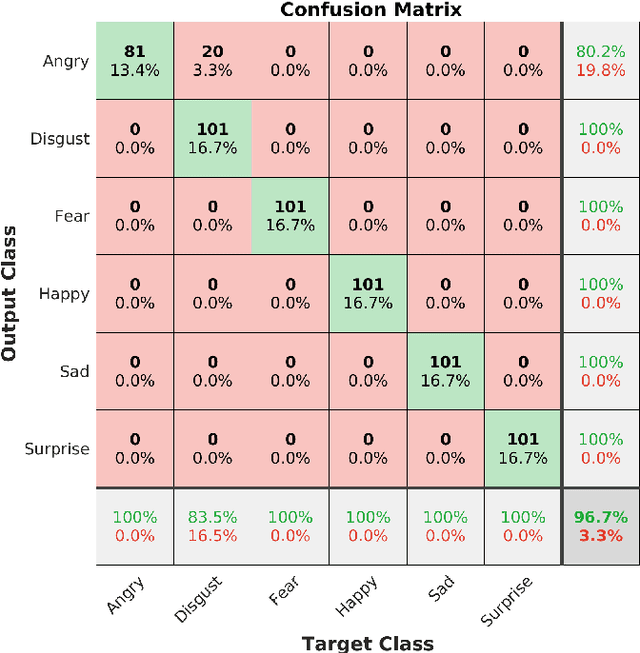

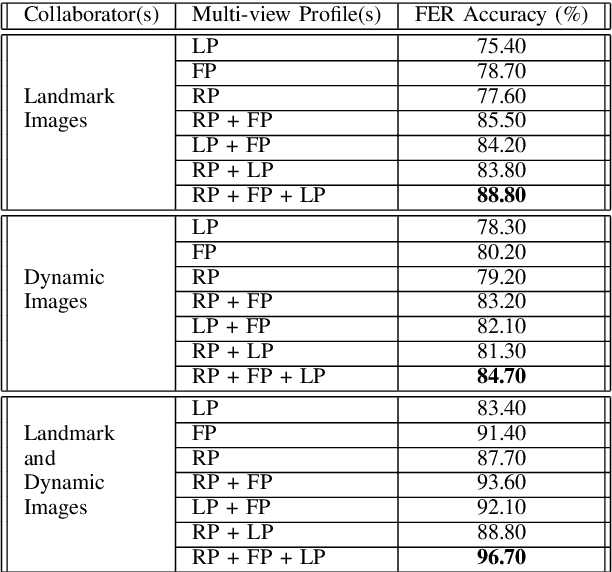

Landmarks-assisted Collaborative Deep Framework for Automatic 4D Facial Expression Recognition

We propose a novel landmarks-assisted collaborative end-to-end deep framework for automatic 4D FER. Using 4D face scan data, we calculate its various geometrical images, and afterwards use rank pooling to generate their dynamic images encapsulating important facial muscle movements over time. As well, the given 3D landmarks are projected on a 2D plane as binary images and convolutional layers are used to extract sequences of feature vectors for every landmark video. During the training stage, the dynamic images are used to train an end-to-end deep network, while the feature vectors of landmark images are used train a long short-term memory (LSTM) network. The finally improved set of expression predictions are obtained when the dynamic and landmark images collaborate over multi-views using the proposed deep framework. Performance results obtained from extensive experimentation on the widely-adopted BU-4DFE database under globally used settings prove that our proposed collaborative framework outperforms the state-of-the-art 4D FER methods and reach a promising classification accuracy of 96.7% demonstrating its effectiveness.

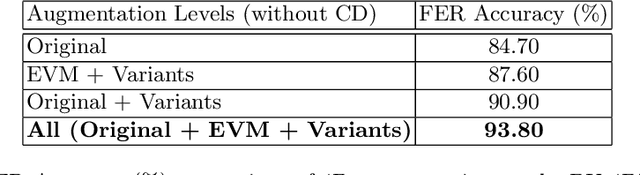

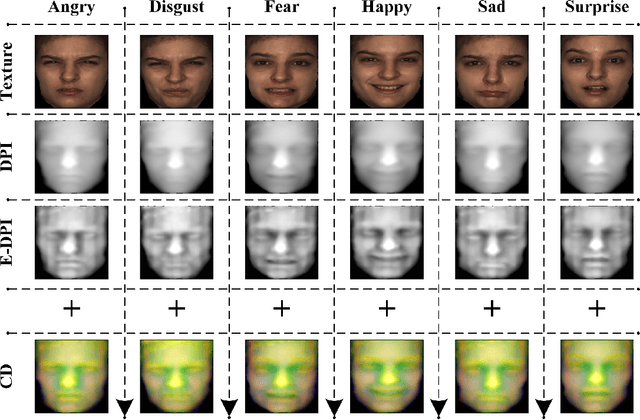

Automatic 4D Facial Expression Recognition via Collaborative Cross-domain Dynamic Image Network

This paper proposes a novel 4D Facial Expression Recognition (FER) method using Collaborative Cross-domain Dynamic Image Network (CCDN). Given a 4D data of face scans, we first compute its geometrical images, and then combine their correlated information in the proposed cross-domain image representations. The acquired set is then used to generate cross-domain dynamic images (CDI) via rank pooling that encapsulates facial deformations over time in terms of a single image. For the training phase, these CDIs are fed into an end-to-end deep learning model, and the resultant predictions collaborate over multi-views for performance gain in expression classification. Furthermore, we propose a 4D augmentation scheme that not only expands the training data scale but also introduces significant facial muscle movement patterns to improve the FER performance. Results from extensive experiments on the commonly used BU-4DFE dataset under widely adopted settings show that our proposed method outperforms the state-of-the-art 4D FER methods by achieving an accuracy of 96.5% indicating its effectiveness.
