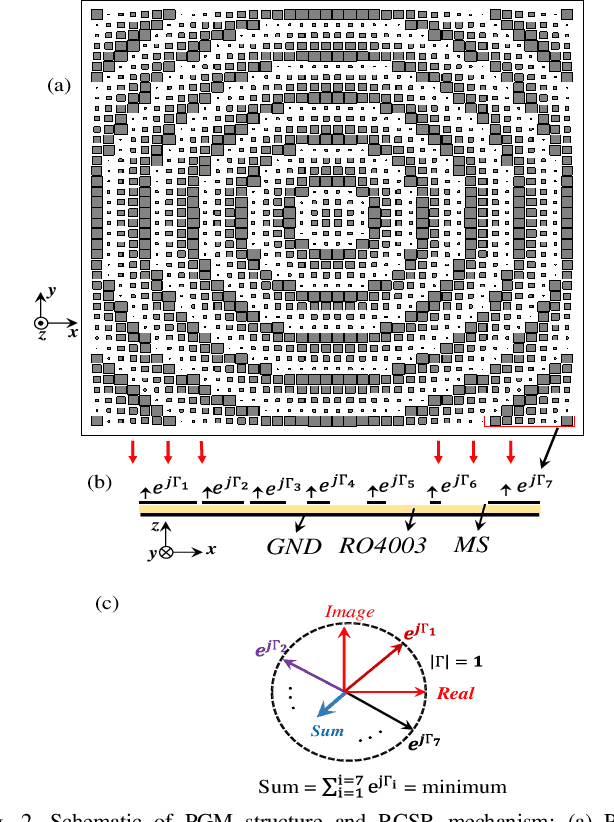

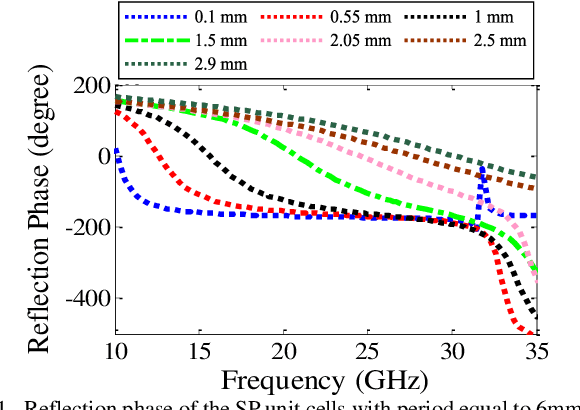

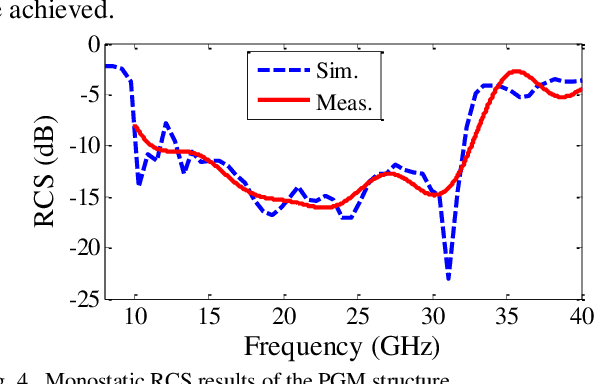

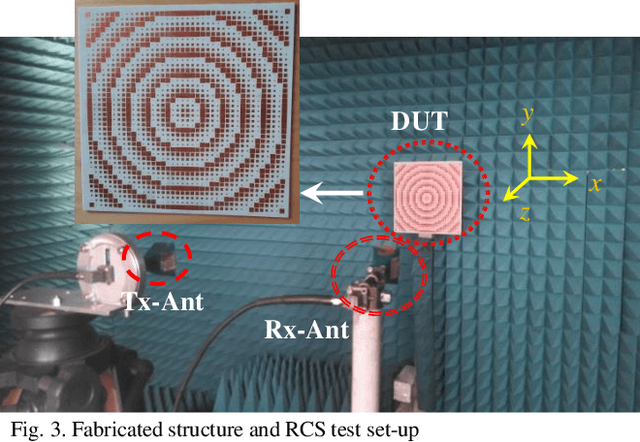

Abstract:This paper presents the design and implementation of a simple, single-layer, broadband (97%, 11.3-32.3 GHz) Radar Cross Section Reduction (RCSR) Modulated Surface (MS). It uses modulation of the edge-length of the square patch (SP) radiators within adjacent unit cells. By using Sinusoidal Modulation (SM) of the edge length of the unit cells, the unit cells sequences with phase gradient, that plays an effective role in improving the RCSR, can be used for wideband RCSR achievement. The proposed structure with the dimension of 250*250mm2 that consists of 40 * 40 unit cells with period of 6mm printed on a RO4003 substrate of 1.6mm thickness and has been considered. Measurements on a prototype were conducted considering both mono- and bi-static arrangements for oblique incidences for both TM and TE polarization tests. A good agreement between simulation and measurement results proves the validity of the design criteria.
Abstract:In this paper, a low-cost, simple and reliable bi-static Radar Cross Section (RCS) measurement method making use a historic Marconi set-up is presented. It uses a transmitting (Tx) antenna (located at a constant position, at a reference angle of {\theta} = 0o) and a receiver (Rx) antenna (mounted on a moveable arm calibrated in the azimuthal direction with an accuracy of 0.1o). A time gating method is used to extract the information from the reflection in the time domain; applying time filter allows removing the antenna side lobe effects and other ambient noise. In this method, the Rx antenna (on the movable arm) is used to measure the reflected field in the angular range from 1o to 90o of reflection from the structure (printed PCB) and from the reference configuration represented by a ground (GND) plane of the same dimension. The time gating method is then applied to each pair of PCB / GND measurements to extract the bi-static RCS pattern of the structure at a given frequency. Here comparison of measurement results carried out at 18 GHz and 32 GHz with simulation indicates the successful performance of the proposed method. It can be used as a low-cost, reliable and available option in future measurement and scientific research.

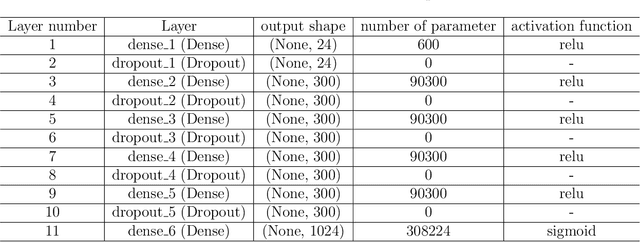

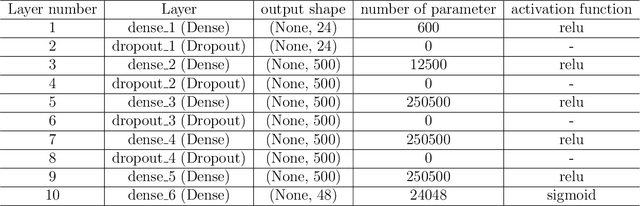

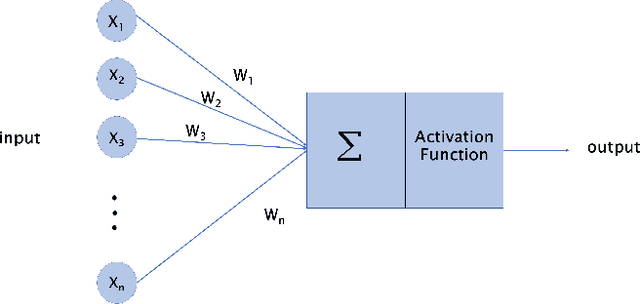

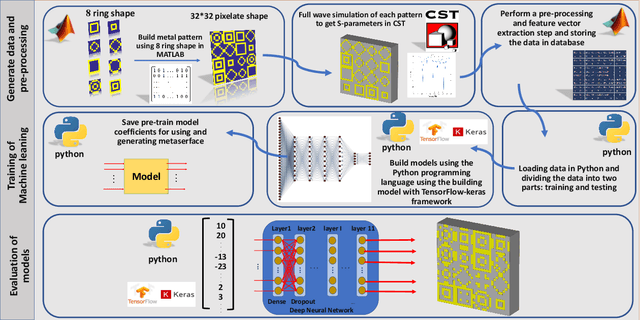

Abstract:Compared to the conventional metasurface design, machine learning-based methods have recently created an inspiring platform for an inverse realization of the metasurfaces. Here, we have used the Deep Neural Network (DNN) for the generation of desired output unit cell structures in an ultra-wide working frequency band for both TE and TM polarized waves. To automatically generate metasurfaces in a wide range of working frequencies from 4 to 45 GHz, we deliberately design an 8 ring-shaped pattern in such a way that the unit-cells generated in the dataset can produce single or multiple notches in the desired working frequency band. Compared to the general approach, whereby the final metasurface structure may be formed by any randomly distributed "0" and "1", we propose here a restricted output structure. By restricting the output, the number of calculations will be reduced and the learning speed will be increased. Moreover, we have shown that the accuracy of the network reaches 91\%. Obtaining the final unit cell directly without any time-consuming optimization algorithms for both TE and TM polarized waves, and high average accuracy, promises an effective strategy for the metasurface design; thus, the designer is required only to focus on the design goal.

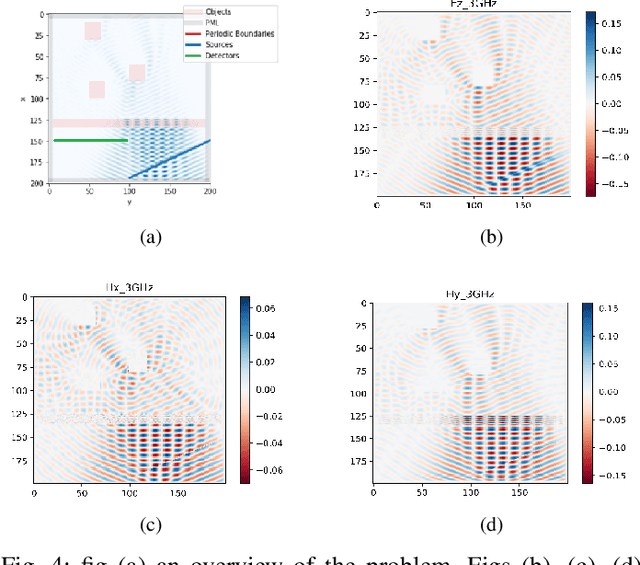

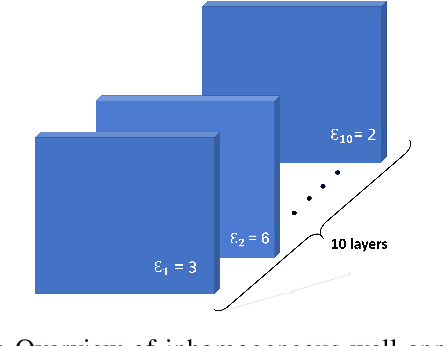

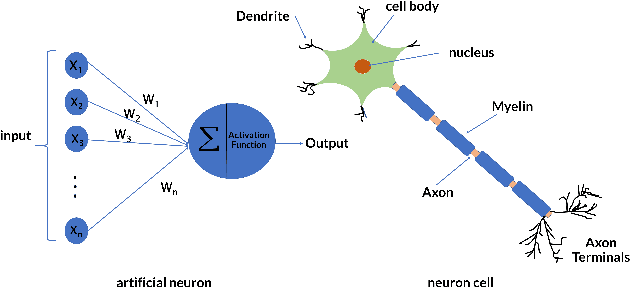

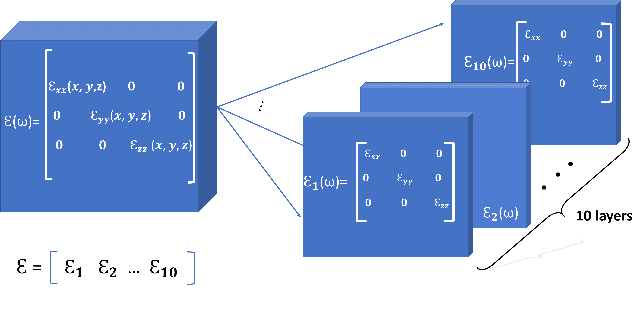

Abstract:In this paper, we used the deep learning approach to perform two-dimensional, multi-target locating in Throughthe-Wall Radar under conditions where the wall is modeled as a complex electromagnetic media. We have assumed 5 models for the wall and 3 modes for the number of targets. The target modes are single, double and triple. The wall scenarios are homogeneous wall, wall with airgap, inhomogeneous wall, anisotropic wall and inhomogeneous-anisotropic wall. For this purpose, we have used the deep neural network algorithm. Using the Python FDTD library, we generated a dataset, and then modeled it with deep learning. Assuming the wall as a complex electromagnetic media, we achieved 97:7% accuracy for single-target 2D locating, and for two-targets, three-targets we achieved an accuracy of 94:1% and 62:2%, respectively.

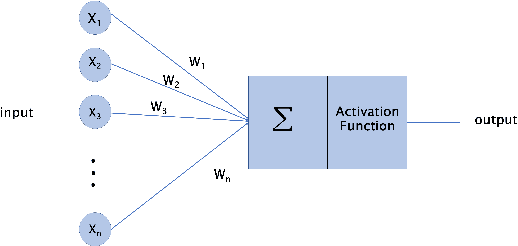

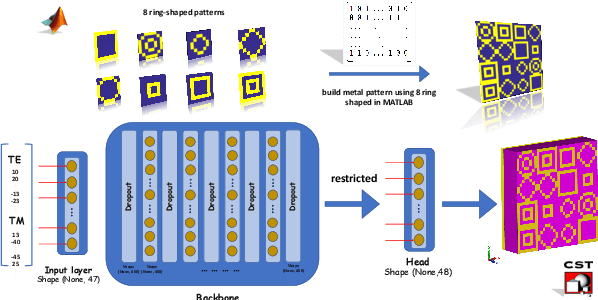

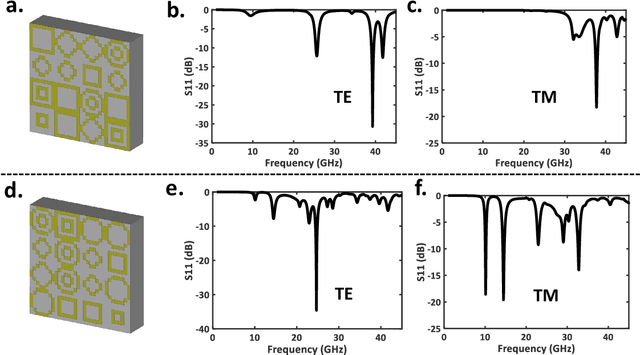

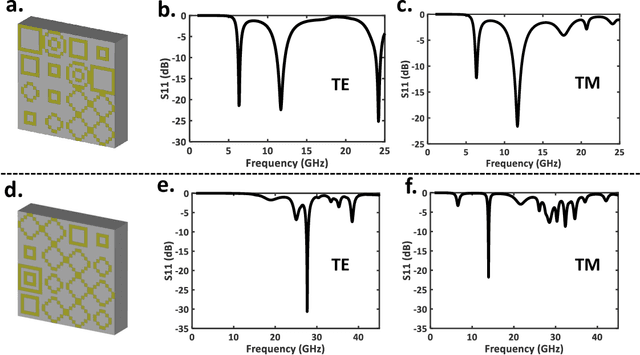

Abstract:Beyond the scope of conventional metasurface which necessitates plenty of computational resources and time, an inverse design approach using machine learning algorithms promises an effective way for metasurfaces design. In this paper, benefiting from Deep Neural Network (DNN), an inverse design procedure of a metasurface in an ultra-wide working frequency band is presented where the output unit cell structure can be directly computed by a specified design target. To reach the highest working frequency, for training the DNN, we consider 8 ring-shaped patterns to generate resonant notches at a wide range of working frequencies from 4 to 45 GHz. We propose two network architectures. In one architecture, we restricted the output of the DNN, so the network can only generate the metasurface structure from the input of 8 ring-shaped patterns. This approach drastically reduces the computational time, while keeping the network's accuracy above 91\%. We show that our model based on DNN can satisfactorily generate the output metasurface structure with an average accuracy of over 90\% in both network architectures. Determination of the metasurface structure directly without time-consuming optimization procedures, having an ultra-wide working frequency, and high average accuracy equip an inspiring platform for engineering projects without the need for complex electromagnetic theory.

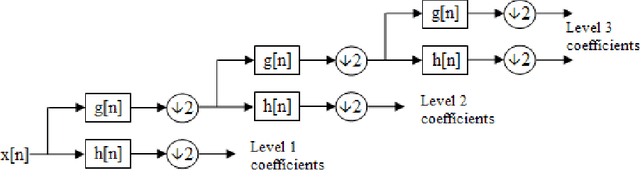

Abstract:In the quest to realize comprehensive EEG signal processing toolbox, in this paper, we demonstrate the first toolbox contain three states of EEG signal processing (preprocessing, feature extraction, classification) together. Our goal is to provide a comprehensive toolbox for EEG signal processing. Using MATLAB software, we have developed an open-source toolbox for end-to-end processing of the EEG signal. As we know, in many research work in the field of neuroscience and EEG signal processing, we first clear the signal and remove noise, artifact, etc. Which we know as preprocessing, and then extract the feature from the relevant signal, and finally Machine learning classifiers used to classification of signal. We have tried to provide all the above steps in the form of EEGsig as a graphical user interface(GUI) so that there is no need for programming for all the above steps and reduce the time to complete these projects to a desirable level.
