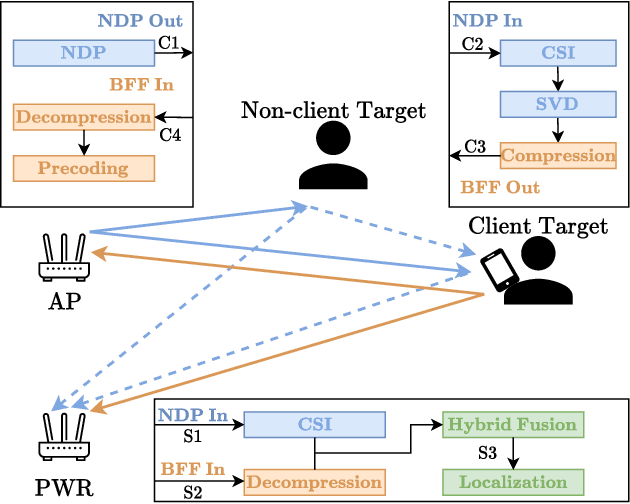

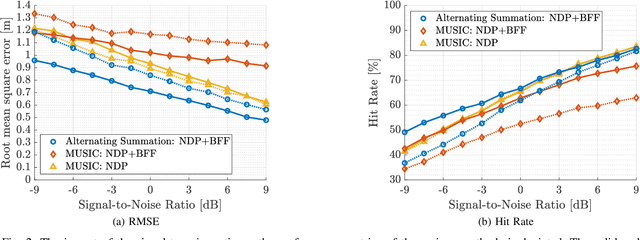

Hybrid Fusion for 802.11ax Wi-Fi-based Passive Radars Exploiting Beamforming Feedbacks

Passive Wi-Fi-based radars (PWRs) are devices that enable the localization of targets using Wi-Fi signals of opportunity transmitted by an access point. Unlike active radars that optimize their transmitted waveform for localization, PWRs align with the 802.11 amendments. Specifically, during the channel sounding session preceding a multi-user multiple-input multiple-output downlink transmission, an access point isotropically transmits a null data packet (NDP) with a known preamble. From these known symbols, client user equipments derive their channel state information and transmit an unencrypted beamforming feedback (BFF) back to the access point. The BFF comprises the right singular matrix of the channel and the corresponding stream gain for each subcarrier, which allows the computation of a beamforming matrix at the access point. In a classical PWR processing, only the preamble symbols from the NDP are exploited during the channel sounding session. In this study, we investigate multiple target localization by a PWR exploiting hybrid information sources. On one hand, the joint angle-of-departure and angle-of-arrival evaluated from the NDP. On another hand, the line-of-sight angle-of-departures inferred from the BFFs. The processing steps at the PWR are defined and an optimal hybrid fusion rule is derived in the maximum likelihood framework. Monte-Carlo simulations assess the enhanced accuracy of the proposed combination method compared to classical PWR processing based solely on the NDP, and compare the localisation performance between client and non-client targets.

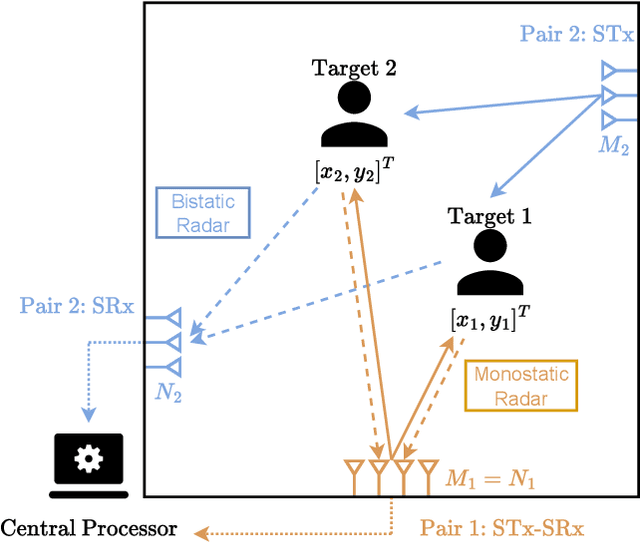

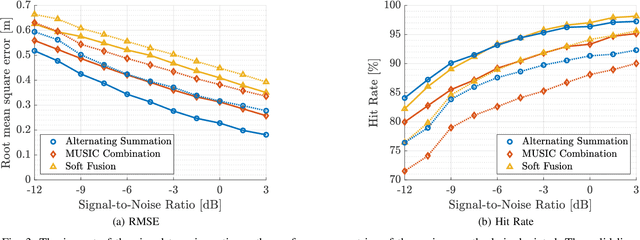

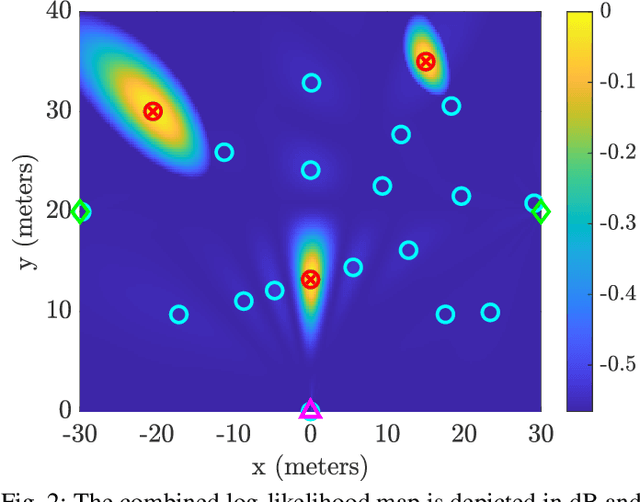

Maximum Likelihood Alternating Summation for Multistatic Angle-based Multitarget Localization

Recent advancements in Wi-Fi sensing have sparked interest in exploiting OFDM modulated communication signals for target detection and tracking. In this study, we address the angle-based localization of multiple targets using a multistatic OFDM radar. While the maximum likelihood approach optimally merges data from each radar pair comprised by the system, it entails a complex multi-dimensional search process. Leveraging pre-estimation of the targets' parameters obtained via the MUSIC algorithm, our method decouples this multi-dimensional search into a single two-dimensional estimator per target. The proposed alternating summation method allows the computation of a combined likelihood map aggregating contributions from each radar pair, enabling target detection via peak selection. Besides reducing computational complexity, the method effectively captures target interactions and accommodates varying radar pair localization abilities. Also, it requires transmitting only the estimated channel covariance matrices of each radar pair to the central processor. Numerical simulations demonstrate superior performance over existing approaches.

Cellular Load Dependent Sleep Control for Energy Efficient HetNets with Non-Uniform User Distributions

This study proposes a novel stochastic geometry framework analyzing power control strategies in spatially correlated network topologies. Heterogeneous networks are studied, with users modeled via the superposition of homogeneous and Poisson cluster processes. First, a new expression approaching the distribution of the number of users per base station is provided. This distribution defines the load associated with each Vorono\"i cell, capturing non-uniformities in user locations and correlation to BSs positions. The power allocation is adjusted based on this load, allowing BSs to enter sleep mode when their activity falls below a defined threshold. Furthermore, the propagation model features millimeter wave transmission characteristics and directional beamforming. Considering these aspects, revisited definitions of coverage probability, spectral efficiency, and energy efficiency are proposed. Tractable expressions for these metrics are derived and validated using Monte-Carlo simulations. Asymptotic expressions are also proposed, providing further understanding on the influence of the system parameters. Our numerical results finally analyze the impact of the sleep control on the performance and display the optimal strategies in terms of energy efficiency.

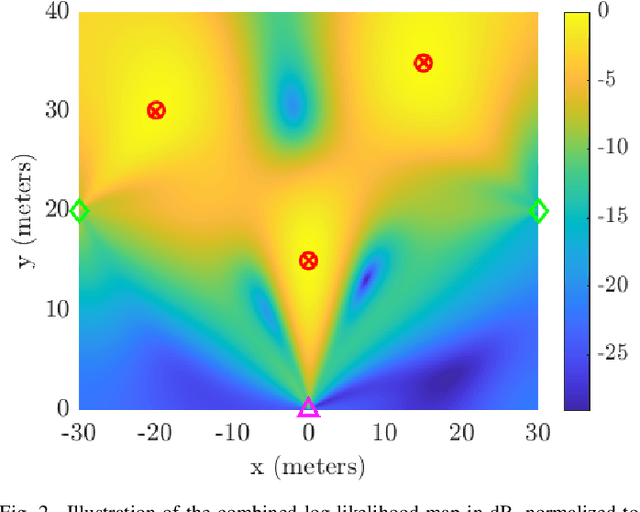

Multistatic OFDM Radar Fusion of MUSIC-based Angle Estimation

This study investigates the problem of angle-based localization of multiple targets using a multistatic OFDM radar. Although the maximum likelihood (ML) approach can be employed to merge data from different radar pairs, this method requires a high complexity multi-dimensional search process. The multiple signal classification (MUSIC) algorithm simplifies the complexity to a two-dimensional search, but no framework is derived for combining MUSIC pseudo-spectrums in a multistatic configuration. This paper exploits the relationship between MUSIC and ML estimators to approximate the multidimensional ML parameter estimation with a weighted combination of MUSIC pseudo-spectrum. This enables the computation of a likelihood map on which a peak selection is applied for target detection. In addition to reducing the computational complexity, the proposed method relies only on transmitting the estimated channel covariance matrices of each radar pair to the central processor. A numerical analysis is conducted to assess the benefits of the proposed fusion.
