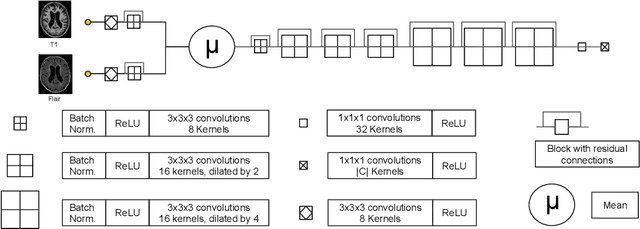

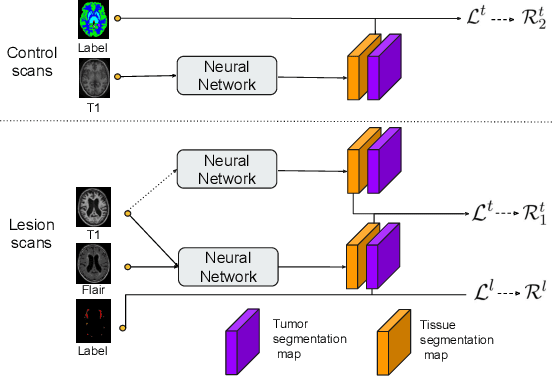

Learning joint lesion and tissue segmentation from task-specific hetero-modal datasets

Brain tissue segmentation from multimodal MRI is a key building block of many neuroscience analysis pipelines. It could also play an important role in many clinical imaging scenarios. Established tissue segmentation approaches have however not been developed to cope with large anatomical changes resulting from pathology. The effect of the presence of brain lesions, for example, on their performance is thus currently uncontrolled and practically unpredictable. Contrastingly, with the advent of deep neural networks (DNNs), segmentation of brain lesions has matured significantly and is achieving performance levels making it of interest for clinical use. However, few existing approaches allow for jointly segmenting normal tissue and brain lesions. Developing a DNN for such joint task is currently hampered by the fact that annotated datasets typically address only one specific task and rely on a task-specific hetero-modal imaging protocol. In this work, we propose a novel approach to build a joint tissue and lesion segmentation model from task-specific hetero-modal and partially annotated datasets. Starting from a variational formulation of the joint problem, we show how the expected risk can be decomposed and optimised empirically. We exploit an upper-bound of the risk to deal with missing imaging modalities. For each task, our approach reaches comparable performance than task-specific and fully-supervised models.

Generalised Wasserstein Dice Score for Imbalanced Multi-class Segmentation using Holistic Convolutional Networks

The Dice score is widely used for binary segmentation due to its robustness to class imbalance. Soft generalisations of the Dice score allow it to be used as a loss function for training convolutional neural networks (CNN). Although CNNs trained using mean-class Dice score achieve state-of-the-art results on multi-class segmentation, this loss function does neither take advantage of inter-class relationships nor multi-scale information. We argue that an improved loss function should balance misclassifications to favour predictions that are semantically meaningful. This paper investigates these issues in the context of multi-class brain tumour segmentation. Our contribution is threefold. 1) We propose a semantically-informed generalisation of the Dice score for multi-class segmentation based on the Wasserstein distance on the probabilistic label space. 2) We propose a holistic CNN that embeds spatial information at multiple scales with deep supervision. 3) We show that the joint use of holistic CNNs and generalised Wasserstein Dice scores achieves segmentations that are more semantically meaningful for brain tumour segmentation.

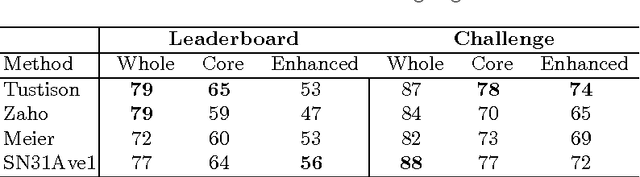

Scalable multimodal convolutional networks for brain tumour segmentation

Brain tumour segmentation plays a key role in computer-assisted surgery. Deep neural networks have increased the accuracy of automatic segmentation significantly, however these models tend to generalise poorly to different imaging modalities than those for which they have been designed, thereby limiting their applications. For example, a network architecture initially designed for brain parcellation of monomodal T1 MRI can not be easily translated into an efficient tumour segmentation network that jointly utilises T1, T1c, Flair and T2 MRI. To tackle this, we propose a novel scalable multimodal deep learning architecture using new nested structures that explicitly leverage deep features within or across modalities. This aims at making the early layers of the architecture structured and sparse so that the final architecture becomes scalable to the number of modalities. We evaluate the scalable architecture for brain tumour segmentation and give evidence of its regularisation effect compared to the conventional concatenation approach.
