From Chaos to Calibration: A Geometric Mutual Information Approach to Target-Free Camera LiDAR Extrinsic Calibration

Sensor fusion is vital for the safe and robust operation of autonomous vehicles. Accurate extrinsic sensor to sensor calibration is necessary to accurately fuse multiple sensor's data in a common spatial reference frame. In this paper, we propose a target free extrinsic calibration algorithm that requires no ground truth training data, artificially constrained motion trajectories, hand engineered features or offline optimization and that is accurate, precise and extremely robust to initialization error. Most current research on online camera-LiDAR extrinsic calibration requires ground truth training data which is impossible to capture at scale. We revisit analytical mutual information based methods first proposed in 2012 and demonstrate that geometric features provide a robust information metric for camera-LiDAR extrinsic calibration. We demonstrate our proposed improvement using the KITTI and KITTI-360 fisheye data set.

Continuous Online Extrinsic Calibration of Fisheye Camera and LiDAR

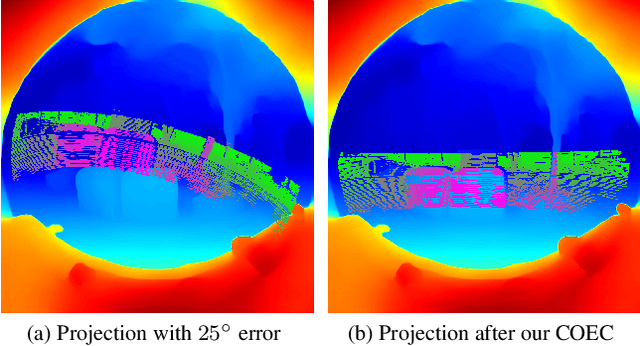

Automated driving systems use multi-modal sensor suites to ensure the reliable, redundant and robust perception of the operating domain, for example camera and LiDAR. An accurate extrinsic calibration is required to fuse the camera and LiDAR data into a common spatial reference frame required by high-level perception functions. Over the life of the vehicle the value of the extrinsic calibration can change due physical disturbances, introducing an error into the high-level perception functions. Therefore there is a need for continuous online extrinsic calibration algorithms which can automatically update the value of the camera-LiDAR calibration during the life of the vehicle using only sensor data. We propose using mutual information between the camera image's depth estimate, provided by commonly available monocular depth estimation networks, and the LiDAR pointcloud's geometric distance as a optimization metric for extrinsic calibration. Our method requires no calibration target, no ground truth training data and no expensive offline optimization. We demonstrate our algorithm's accuracy, precision, speed and self-diagnosis capability on the KITTI-360 data set.
