AoA-based Position and Orientation Estimation Using Lens MIMO in Cooperative Vehicle-to-Vehicle Systems

Positioning accuracy is a critical requirement for vehicle-to-everything (V2X) use cases. Therefore, this paper derives the theoretical limits of estimation for the position and orientation of vehicles in a cooperative vehicle-to-vehicle (V2V) scenario, using a lens-based multiple-input multiple-output (lens-MIMO) system. Following this, we analyze the Cram$\acute{\text{e}}$r-Rao lower bounds (CRLBs) of the position and orientation estimation and explore a received signal model of a lens-MIMO for the particular angle of arrival (AoA) estimation with a V2V geometric model. Further, we propose a lower complexity AoA estimation technique exploiting the unique characteristics of the lens-MIMO for a single target vehicle; as a result, its estimation scheme is effectively extended by the successive interference cancellation (SIC) method for multiple target vehicles. Given these AoAs, we investigate the lens-MIMO estimation capability for the positions and orientations of vehicles. Subsequently, we prove that the lens-MIMO outperforms a conventional uniform linear array (ULA) in a certain configuration of a lens's structure. Finally, we confirm that the proposed localization algorithm is superior to ULA's CRLB as the resolution of the lens increases in spite of the lower complexity.

Sparse RF Lens Antenna Array Design for AoA Estimation in Wideband Systems: Placement Optimization and Performance Analysis

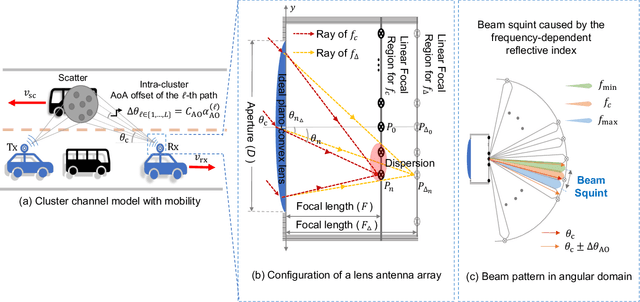

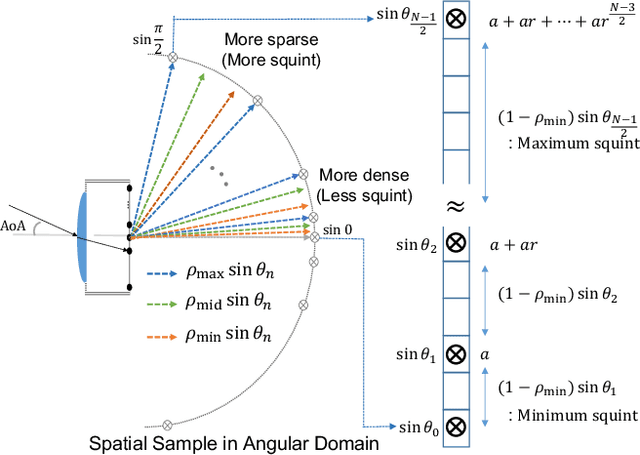

In this paper, we propose a novel architecture for a lens antenna array (LAA) designed to work with a small number of antennas and enable angle-of-arrival (AoA) estimation for advanced 5G vehicle-to-everything (V2X) use cases that demand wider bandwidths and higher data rates. We derive a received signal in terms of optical analysis to consider the variability of the focal region for different carrier frequencies in a wideband multi-carrier system. By taking full advantage of the beam squint effect for multiple pilot signals with different frequencies, we propose a novel reconfiguration of antenna array (RAA) for the sparse LAA and a max-energy antenna selection (MS) algorithm for the AoA estimation. In addition, this paper presents an analysis of the received power at the single antenna with the maximum energy and compares it to simulation results. In contrast to previous studies on LAA that assumed a large number of antennas, which can require high complexity and hardware costs, the proposed RAA with MS estimation algorithm is shown meets the requirements of 5G V2X in a vehicular environment while utilizing limited RF hardware and has low complexity.
