Estimation of System Parameters Including Repeated Cross-Sectional Data through Emulator-Informed Deep Generative Model

Differential equations (DEs) are crucial for modeling the evolution of natural or engineered systems. Traditionally, the parameters in DEs are adjusted to fit data from system observations. However, in fields such as politics, economics, and biology, available data are often independently collected at distinct time points from different subjects (i.e., repeated cross-sectional (RCS) data). Conventional optimization techniques struggle to accurately estimate DE parameters when RCS data exhibit various heterogeneities, leading to a significant loss of information. To address this issue, we propose a new estimation method called the emulator-informed deep-generative model (EIDGM), designed to handle RCS data. Specifically, EIDGM integrates a physics-informed neural network-based emulator that immediately generates DE solutions and a Wasserstein generative adversarial network-based parameter generator that can effectively mimic the RCS data. We evaluated EIDGM on exponential growth, logistic population models, and the Lorenz system, demonstrating its superior ability to accurately capture parameter distributions. Additionally, we applied EIDGM to an experimental dataset of Amyloid beta 40 and beta 42, successfully capturing diverse parameter distribution shapes. This shows that EIDGM can be applied to model a wide range of systems and extended to uncover the operating principles of systems based on limited data.

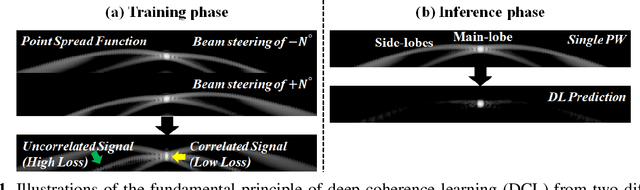

Deep Coherence Learning: An Unsupervised Deep Beamformer for High Quality Single Plane Wave Imaging in Medical Ultrasound

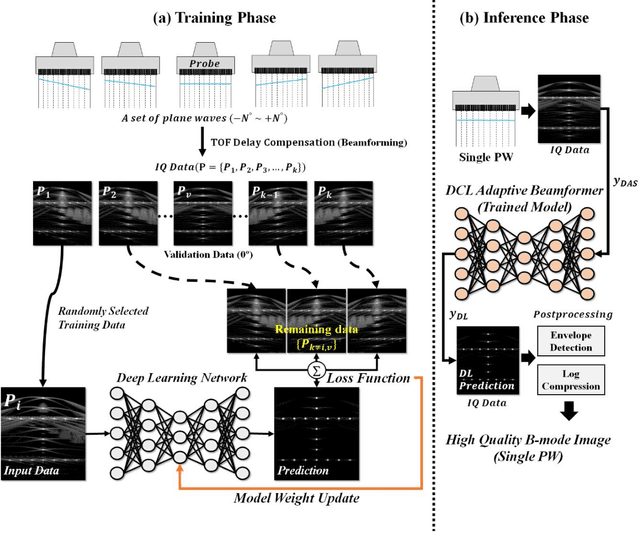

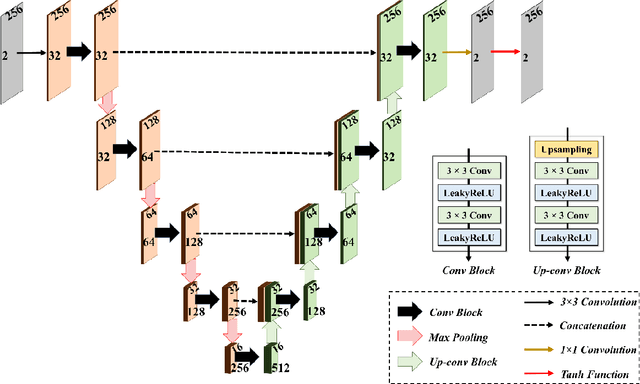

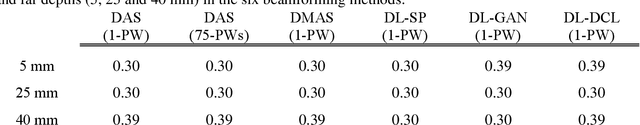

Plane wave imaging (PWI) in medical ultrasound is becoming an important reconstruction method with high frame rates and new clinical applications. Recently, single PWI based on deep learning (DL) has been studied to overcome lowered frame rates of traditional PWI with multiple PW transmissions. However, due to the lack of appropriate ground truth images, DL-based PWI still remains challenging for performance improvements. To address this issue, in this paper, we propose a new unsupervised learning approach, i.e., deep coherence learning (DCL)-based DL beamformer (DL-DCL), for high-quality single PWI. In DL-DCL, the DL network is trained to predict highly correlated signals with a unique loss function from a set of PW data, and the trained DL model encourages high-quality PWI from low-quality single PW data. In addition, the DL-DCL framework based on complex baseband signals enables a universal beamformer. To assess the performance of DL-DCL, simulation, phantom and in vivo studies were conducted with public datasets, and it was compared with traditional beamformers (i.e., DAS with 75-PWs and DMAS with 1-PW) and other DL-based methods (i.e., supervised learning approach with 1-PW and generative adversarial network (GAN) with 1-PW). From the experiments, the proposed DL-DCL showed comparable results with DMAS with 1-PW and DAS with 75-PWs in spatial resolution, and it outperformed all comparison methods in contrast resolution. These results demonstrated that the proposed unsupervised learning approach can address the inherent limitations of traditional PWIs based on DL, and it also showed great potential in clinical settings with minimal artifacts.
