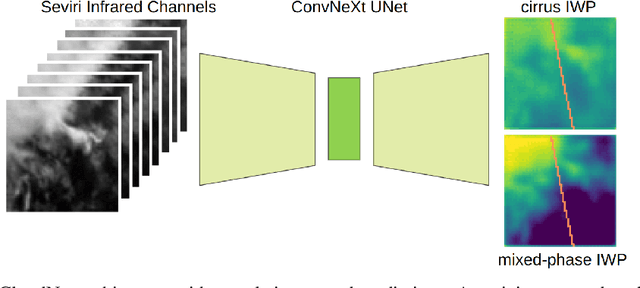

Abstract:IceCloudNet is a novel method based on machine learning able to predict high-quality vertically resolved cloud ice water contents (IWC) and ice crystal number concentrations (N$_\textrm{ice}$). The predictions come at the spatio-temporal coverage and resolution of geostationary satellite observations (SEVIRI) and the vertical resolution of active satellite retrievals (DARDAR). IceCloudNet consists of a ConvNeXt-based U-Net and a 3D PatchGAN discriminator model and is trained by predicting DARDAR profiles from co-located SEVIRI images. Despite the sparse availability of DARDAR data due to its narrow overpass, IceCloudNet is able to predict cloud occurrence, spatial structure, and microphysical properties with high precision. The model has been applied to ten years of SEVIRI data, producing a dataset of vertically resolved IWC and N$_\textrm{ice}$ of clouds containing ice with a 3 kmx3 kmx240 mx15 minute resolution in a spatial domain of 30{\deg}W to 30{\deg}E and 30{\deg}S to 30{\deg}N. The produced dataset increases the availability of vertical cloud profiles, for the period when DARDAR is available, by more than six orders of magnitude and moreover, IceCloudNet is able to produce vertical cloud profiles beyond the lifetime of the recently ended satellite missions underlying DARDAR.
Abstract:Clouds containing ice particles play a crucial role in the climate system. Yet they remain a source of great uncertainty in climate models and future climate projections. In this work, we create a new observational constraint of regime-dependent ice microphysical properties at the spatio-temporal coverage of geostationary satellite instruments and the quality of active satellite retrievals. We achieve this by training a convolutional neural network on three years of SEVIRI and DARDAR data sets. This work will enable novel research to improve ice cloud process understanding and hence, reduce uncertainties in a changing climate and help assess geoengineering methods for cirrus clouds.
Abstract:Cirrus clouds are key modulators of Earth's climate. Their dependencies on meteorological and aerosol conditions are among the largest uncertainties in global climate models. This work uses three years of satellite and reanalysis data to study the link between cirrus drivers and cloud properties. We use a gradient-boosted machine learning model and a Long Short-Term Memory (LSTM) network with an attention layer to predict the ice water content and ice crystal number concentration. The models show that meteorological and aerosol conditions can predict cirrus properties with $R^2 = 0.49$. Feature attributions are calculated with SHapley Additive exPlanations (SHAP) to quantify the link between meteorological and aerosol conditions and cirrus properties. For instance, the minimum concentration of supermicron-sized dust particles required to cause a decrease in ice crystal number concentration predictions is $2 \times 10^{-4}$ mg m\textsuperscript{-3}. The last 15 hours before the observation predict all cirrus properties.
