LitCall: Learning Implicit Topology for CNN-based Aortic Landmark Localization

Landmark detection is a critical component of the image processing pipeline for automated aortic size measurements. Given that the thoracic aorta has a relatively conserved topology across the population and that a human annotator with minimal training can estimate the location of unseen landmarks from limited examples, we proposed an auxiliary learning task to learn the implicit topology of aortic landmarks through a CNN-based network. Specifically, we created a network to predict the location of missing landmarks from the visible ones by minimizing the Implicit Topology loss in an end-to-end manner. The proposed learning task can be easily adapted and combined with Unet-style backbones. To validate our method, we utilized a dataset consisting of 207 CTAs, labeling four landmarks on each aorta. Our method outperforms the state-of-the-art Unet-style architectures (ResUnet, UnetR) in terms of localization accuracy, with only a light (#params=0.4M) overhead. We also demonstrate our approach in two clinically meaningful applications: aortic sub-region division and automatic centerline generation.

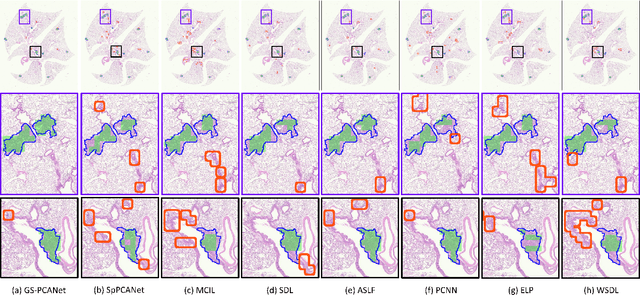

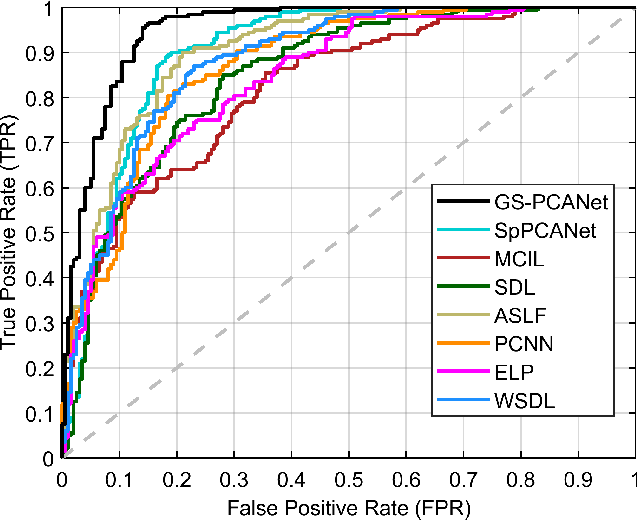

Lung Cancer Lesion Detection in Histopathology Images Using Graph-Based Sparse PCA Network

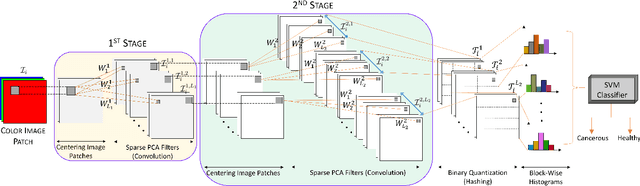

Early detection of lung cancer is critical for improvement of patient survival. To address the clinical need for efficacious treatments, genetically engineered mouse models (GEMM) have become integral in identifying and evaluating the molecular underpinnings of this complex disease that may be exploited as therapeutic targets. Assessment of GEMM tumor burden on histopathological sections performed by manual inspection is both time consuming and prone to subjective bias. Therefore, an interplay of needs and challenges exists for computer-aided diagnostic tools, for accurate and efficient analysis of these histopathology images. In this paper, we propose a simple machine learning approach called the graph-based sparse principal component analysis (GS-PCA) network, for automated detection of cancerous lesions on histological lung slides stained by hematoxylin and eosin (H&E). Our method comprises four steps: 1) cascaded graph-based sparse PCA, 2) PCA binary hashing, 3) block-wise histograms, and 4) support vector machine (SVM) classification. In our proposed architecture, graph-based sparse PCA is employed to learn the filter banks of the multiple stages of a convolutional network. This is followed by PCA hashing and block histograms for indexing and pooling. The meaningful features extracted from this GS-PCA are then fed to an SVM classifier. We evaluate the performance of the proposed algorithm on H&E slides obtained from an inducible K-rasG12D lung cancer mouse model using precision/recall rates, F-score, Tanimoto coefficient, and area under the curve (AUC) of the receiver operator characteristic (ROC) and show that our algorithm is efficient and provides improved detection accuracy compared to existing algorithms.
