ResSR: A Residual Approach to Super-Resolving Multispectral Images

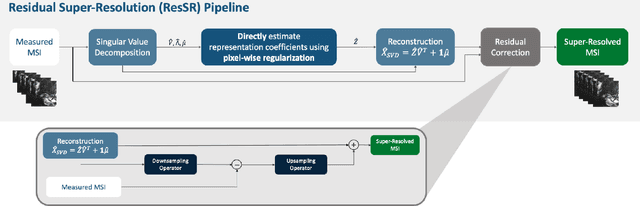

Multispectral imaging sensors typically have wavelength-dependent resolution, which reduces the ability to distinguish small features in some spectral bands. Existing super-resolution methods upsample a multispectral image (MSI) to achieve a common resolution across all bands but are typically sensor-specific, computationally expensive, and may assume invariant image statistics across multiple length scales. In this paper, we introduce ResSR, an efficient and modular residual-based method for super-resolving the lower-resolution bands of a multispectral image. ResSR uses singular value decomposition (SVD) to identify correlations across spectral bands and then applies a residual correction process that corrects only the high-spatial frequency components of the upsampled bands. The SVD formulation improves the conditioning and simplifies the super-resolution problem, and the residual method retains accurate low-spatial frequencies from the measured data while incorporating high-spatial frequency detail from the SVD solution. While ResSR is formulated as the solution to an optimization problem, we derive an approximate closed-form solution that is fast and accurate. We formulate ResSR for any number of distinct resolutions, enabling easy application to any MSI. In a series of experiments on simulated and measured Sentinel-2 MSIs, ResSR is shown to produce image quality comparable to or better than alternative algorithms. However, it is computationally faster and can run on larger images, making it useful for processing large data sets.
