Design and Implementation of an IoT-based Respiratory Motion Sensor

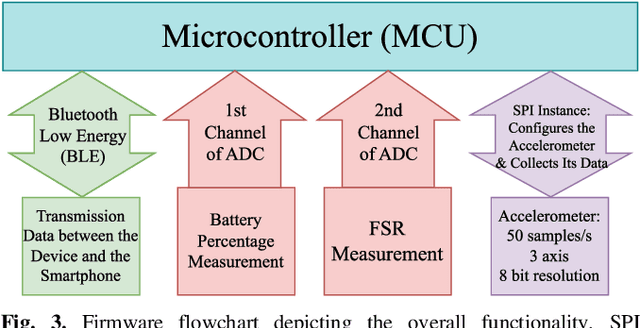

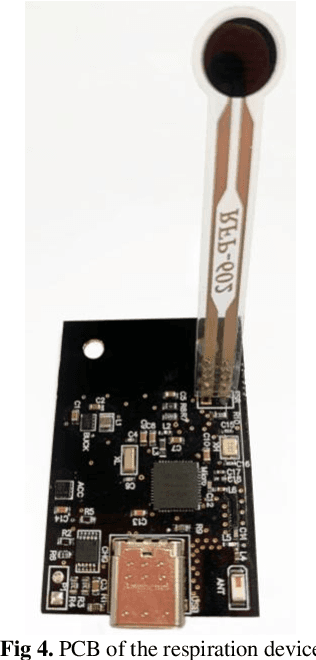

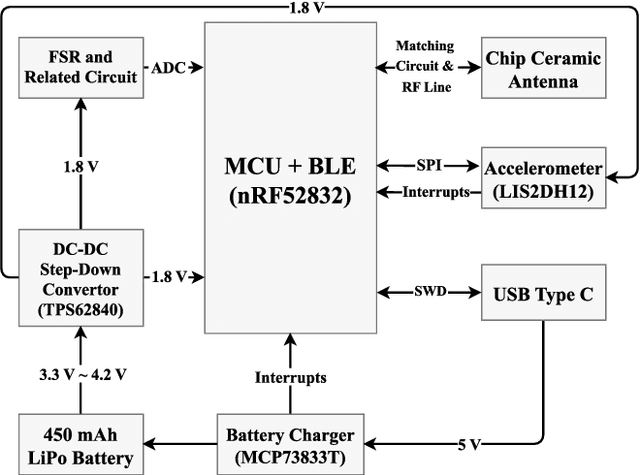

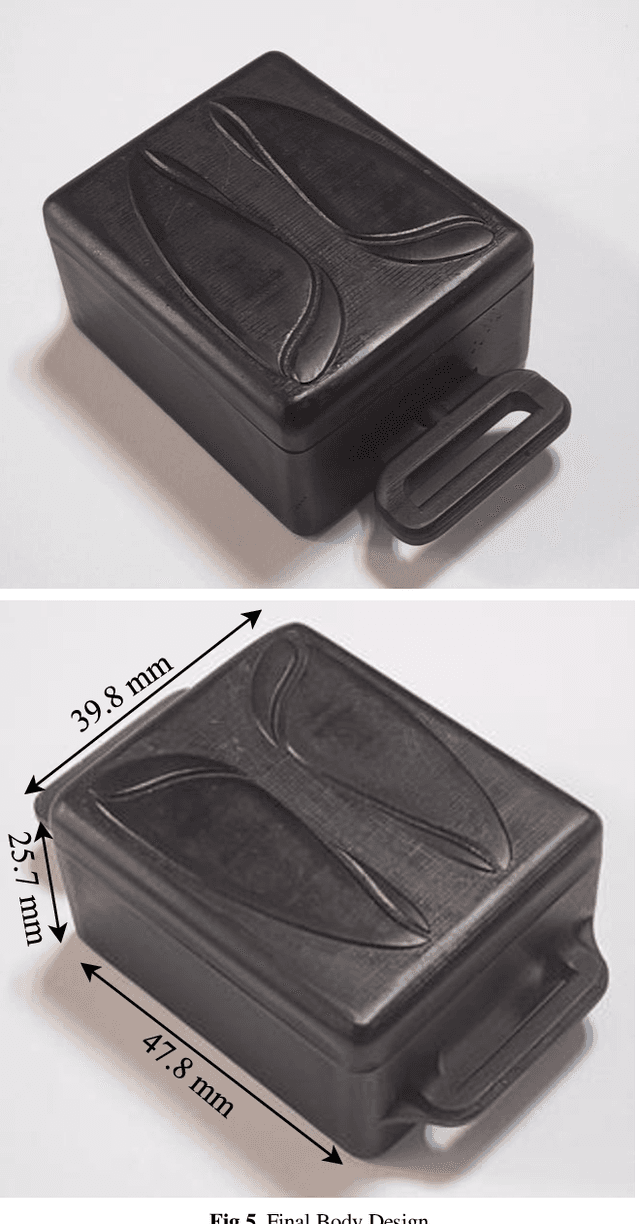

In the last few decades, several wearable devices have been designed to monitor respiration rate in an effort to capture pulmonary signals with higher accuracy and reduce patients' discomfort during use. In this article, we present the design and implementation of a device for real-time monitoring of respiratory system movements. When breathing, the circumference of the abdomen and thorax changes; therefore, we used a Force Sensing Resistor (FSR) attached to the Printed Circuit Board (PCB) to measure this variation as the patient inhales and exhales. The mechanical strain this causes changes the FSR electrical resistance accordingly. Also, for streaming this variable resistance on an Internet of Things (IoT) platform, Bluetooth Low Energy (BLE) 5 is utilized due to the adequate throughput, high accessibility, and possibility of power consumption reduction. Furthermore, this device presents features such as low power consumption (0.4 mW), high precision, and ease of use.

Manikin-Recorded Cardiopulmonary Sounds Dataset Using Digital Stethoscope

Heart and lung sounds are crucial for healthcare monitoring. Recent improvements in stethoscope technology have made it possible to capture patient sounds with enhanced precision. In this dataset, we used a digital stethoscope to capture both heart and lung sounds, including individual and mixed recordings. To our knowledge, this is the first dataset to offer both separate and mixed cardiorespiratory sounds. The recordings were collected from a clinical manikin, a patient simulator designed to replicate human physiological conditions, generating clean heart and lung sounds at different body locations. This dataset includes both normal sounds and various abnormalities (i.e., murmur, atrial fibrillation, tachycardia, atrioventricular block, third and fourth heart sound, wheezing, crackles, rhonchi, pleural rub, and gurgling sounds). The dataset includes audio recordings of chest examinations performed at different anatomical locations, as determined by specialist nurses. Each recording has been enhanced using frequency filters to highlight specific sound types. This dataset is useful for applications in artificial intelligence, such as automated cardiopulmonary disease detection, sound classification, unsupervised separation techniques, and deep learning algorithms related to audio signal processing.

Exploring Sensing Devices for Heart and Lung Sound Monitoring

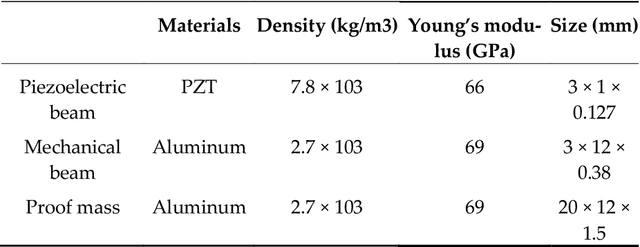

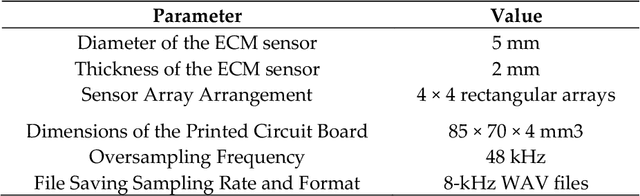

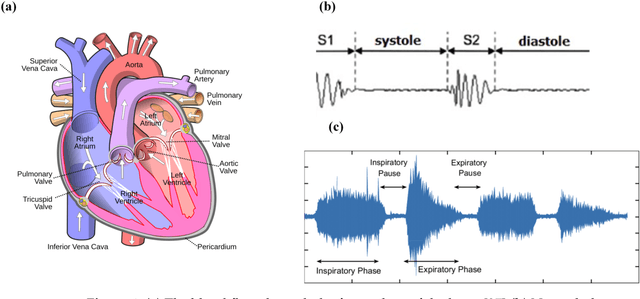

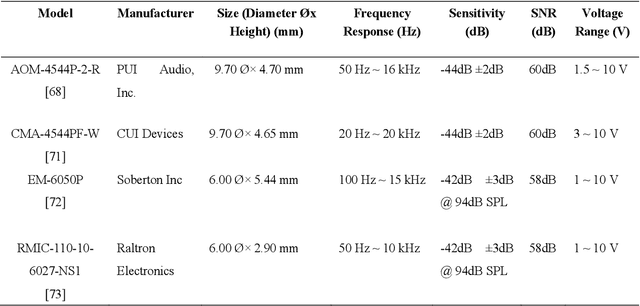

This paper presents a comprehensive review of cardiorespiratory auscultation sensing devices which is useful for understanding the theoretical aspects of sensing devices, as well as practical notes to design novel sensing devices. One of the methods to design a stethoscope is using electret condenser microphones (ECM). In this paper, we first introduce the acoustic properties of the heart and lungs, as well as a brief history of stethoscope evolution. Then, we discuss the basic concept of ECM sensors and a recent stethoscope based on this technology. In response to the limitations of ECM-based systems, we explore the potential of microelectromechanical systems (MEMS), particularly focusing on piezoelectric transducer (PZT) sensors. This paper comprehensively reviews sensing technologies, emphasizing innovative MEMS-based designs for wearable cardiopulmonary auscultation in the past decade. To our knowledge, this is the first paper to summarize ECM and MEMS applications for heart and lung sound analysis. Keywords: Micro-electro-mechanical Systems (MEMS); Electret Condenser Microphone (ECM); Wearable Sensing Devices; Cardiorespiratory Auscultation; Phonocardiography (PCG); Heart Sound; Lung Sound

A New Non-Negative Matrix Factorization Approach for Blind Source Separation of Cardiovascular and Respiratory Sound Based on the Periodicity of Heart and Lung Function

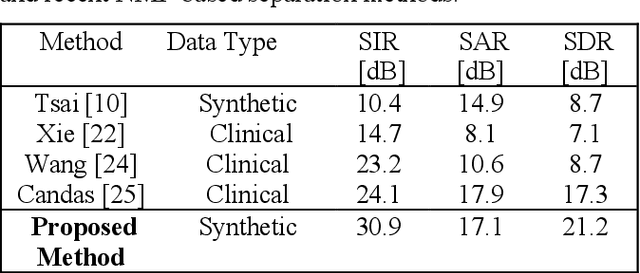

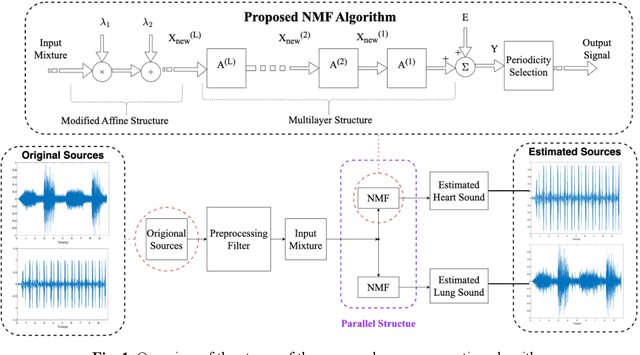

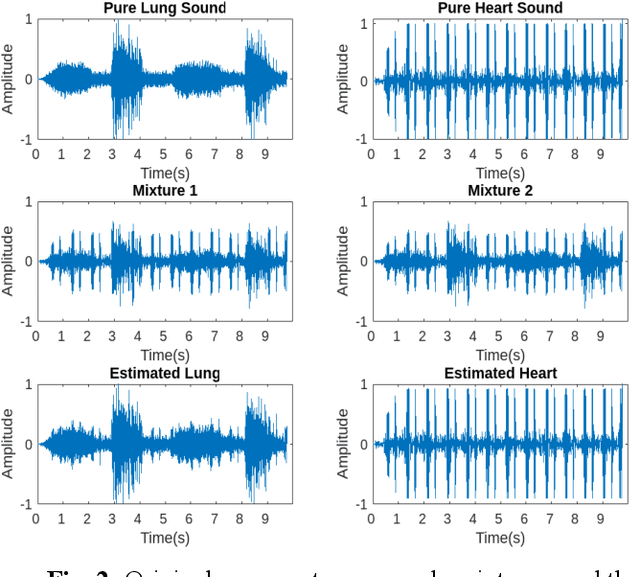

Auscultation provides a rich diversity of information to diagnose cardiovascular and respiratory diseases. However, sound auscultation is challenging due to noise. In this study, a modified version of the affine non-negative matrix factorization (NMF) approach is proposed to blindly separate lung and heart sounds recorded by a digital stethoscope. This method applies a novel NMF algorithm, which embodies a parallel structure of multilayer units on the input signal, to find a proper estimation of source signals. Another key innovation is the use of the periodic property of the signals which improves accuracy compared to previous works. The method is tested on 100 cases. Each case consists of two synthesized mixtures of real measurements. The effect of different parameters is discussed, and the results are compared to other current methods. Results demonstrate improvements in the source-to-distortion ratio (SDR), source-to-interference ratio (SIR), and source-to-artifacts ratio (SAR) of heart and lung sounds, respectively.
