Graph Neural Network-Accelerated Network-Reconfigured Optimal Power Flow

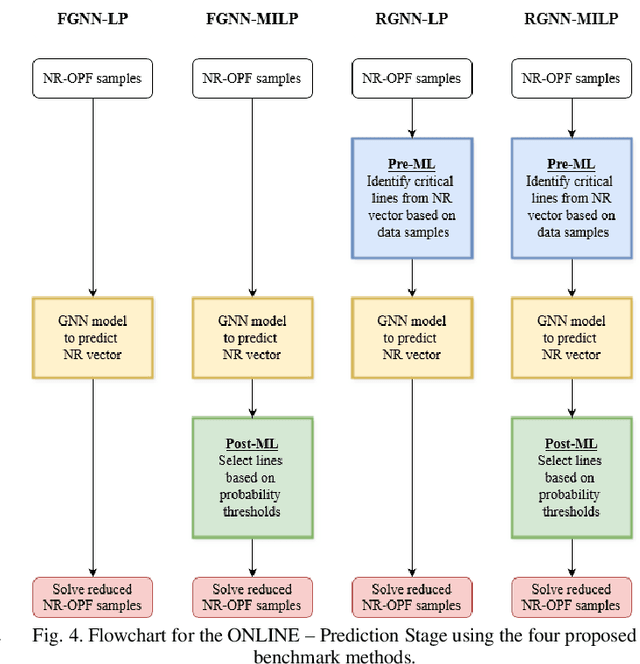

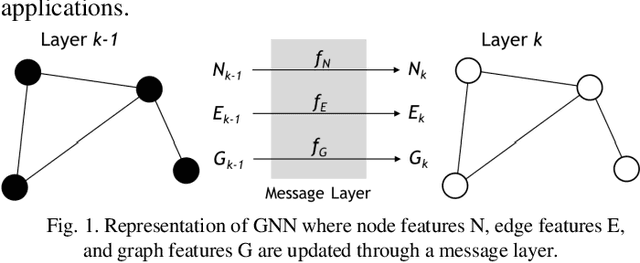

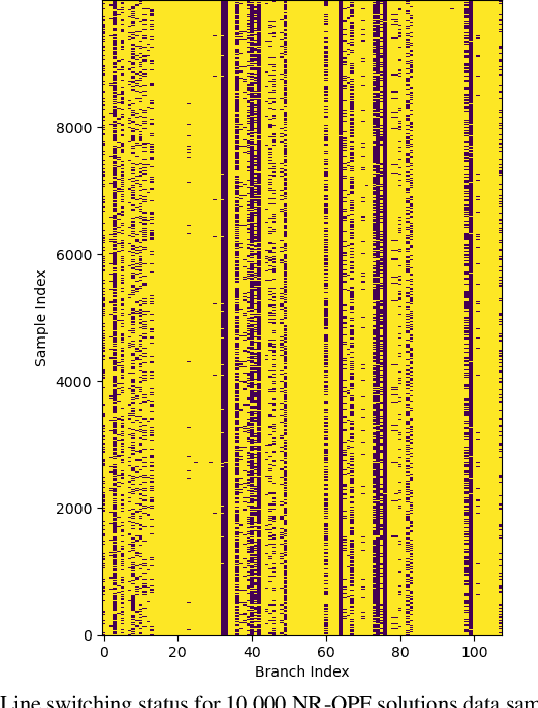

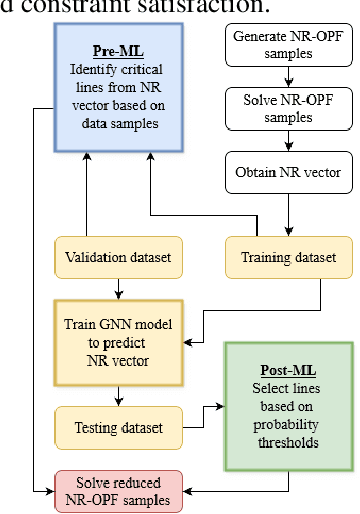

Optimal power flow (OPF) has been used for real-time grid operations. Prior efforts demonstrated that utilizing flexibility from dynamic topologies will improve grid efficiency. However, this will convert the linear OPF into a mixed-integer linear programming network-reconfigured OPF (NR-OPF) problem, substantially increasing the computing time. Thus, a machine learning (ML)-based approach, particularly utilizing graph neural network (GNN), is proposed to accelerate the solution process. The GNN model is trained offline to predict the best topology before entering the optimization stage. In addition, this paper proposes an offline pre-ML filter layer to reduce GNN model size and training time while improving its accuracy. A fast online post-ML selection layer is also proposed to analyze GNN predictions and then select a subset of predicted NR solutions with high confidence. Case studies have demonstrated superior performance of the proposed GNN-accelerated NR-OPF method augmented with the proposed pre-ML and post-ML layers.

N-1 Reduced Optimal Power Flow Using Augmented Hierarchical Graph Neural Network

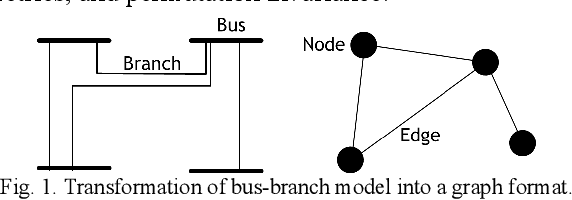

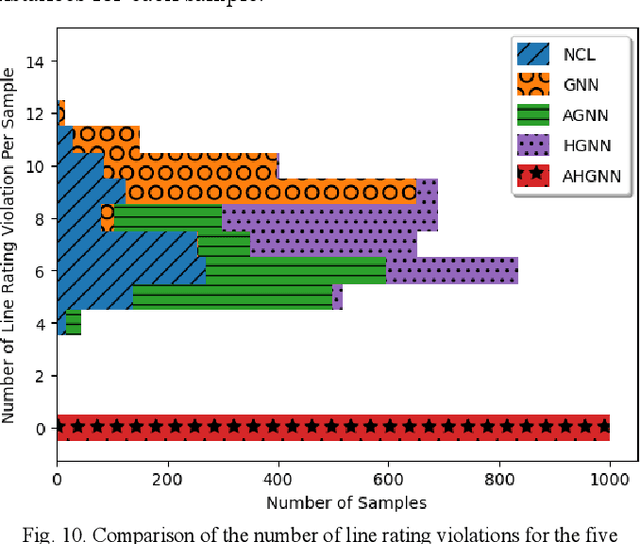

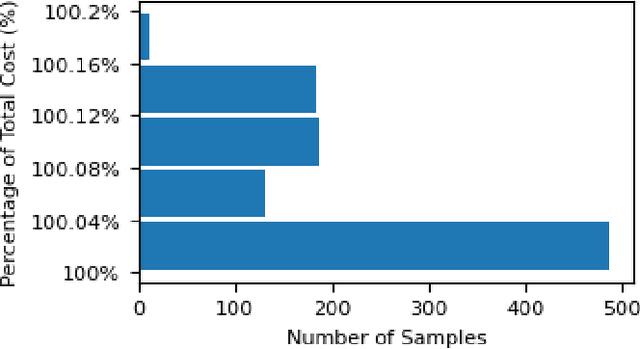

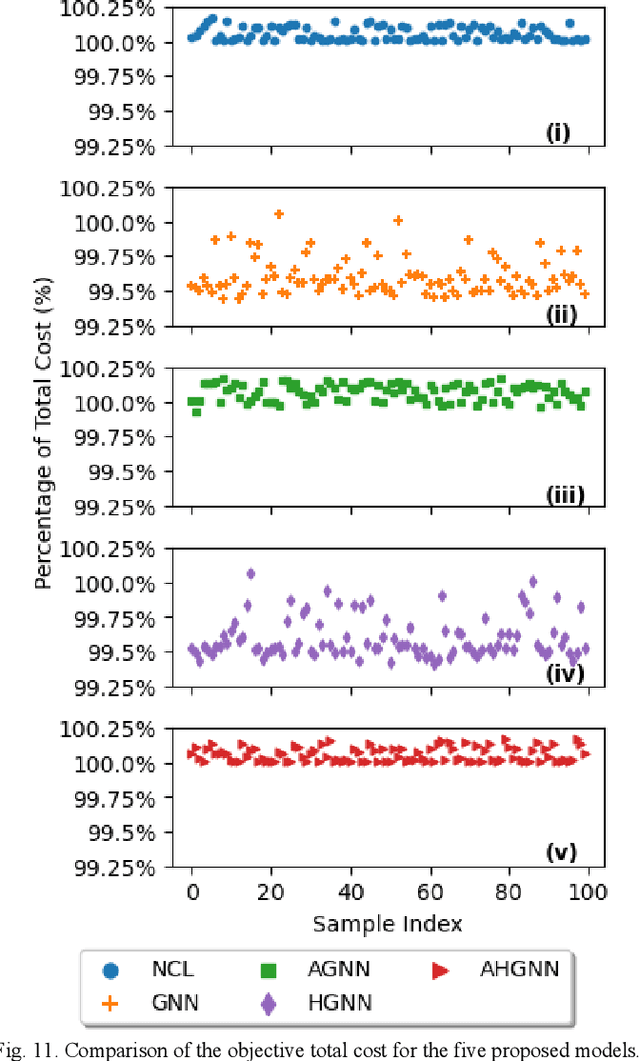

Optimal power flow (OPF) is used to perform generation redispatch in power system real-time operations. N-1 OPF can ensure safe grid operations under diverse contingency scenarios. For large and intricate power networks with numerous variables and constraints, achieving an optimal solution for real-time N-1 OPF necessitates substantial computational resources. To mitigate this challenge, machine learning (ML) is introduced as an additional tool for predicting congested or heavily loaded lines dynamically. In this paper, an advanced ML model known as the augmented hierarchical graph neural network (AHGNN) was proposed to predict critical congested lines and create N-1 reduced OPF (N-1 ROPF). The proposed AHGNN-enabled N-1 ROPF can result in a remarkable reduction in computing time while retaining the solution quality. Several variations of GNN-based ML models are also implemented as benchmark to demonstrate effectiveness of the proposed AHGNN approach. Case studies prove the proposed AHGNN and the associated N-1 ROPF are highly effective in reducing computation time while preserving solution quality, highlighting the promising potential of ML, particularly GNN in enhancing power system operations.

Reduced Optimal Power Flow Using Graph Neural Network

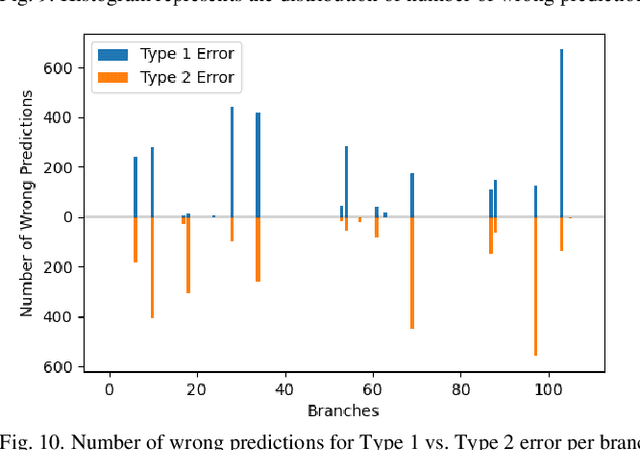

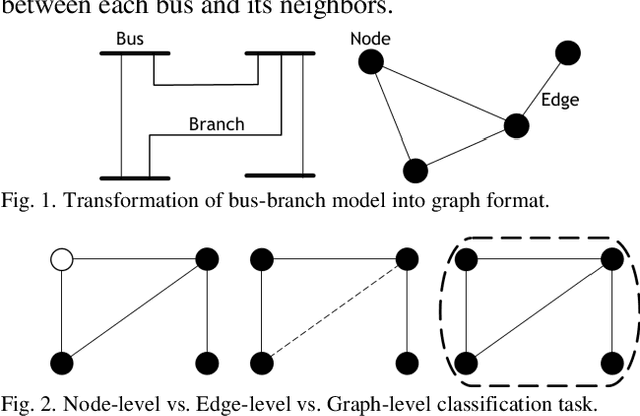

OPF problems are formulated and solved for power system operations, especially for determining generation dispatch points in real-time. For large and complex power system networks with large numbers of variables and constraints, finding the optimal solution for real-time OPF in a timely manner requires a massive amount of computing power. This paper presents a new method to reduce the number of constraints in the original OPF problem using a graph neural network (GNN). GNN is an innovative machine learning model that utilizes features from nodes, edges, and network topology to maximize its performance. In this paper, we proposed a GNN model to predict which lines would be heavily loaded or congested with given load profiles and generation capacities. Only these critical lines will be monitored in an OPF problem, creating a reduced OPF (ROPF) problem. Significant saving in computing time is expected from the proposed ROPF model. A comprehensive analysis of predictions from the GNN model was also made. It is concluded that the application of GNN for ROPF is able to reduce computing time while retaining solution quality.

Neural Network-based Power Flow Model

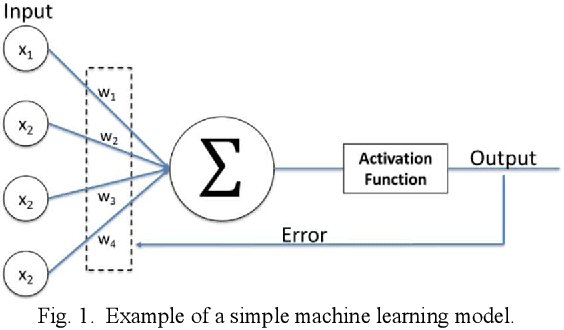

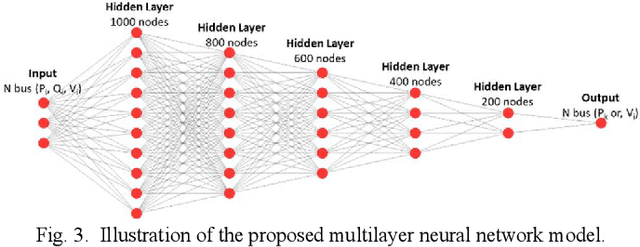

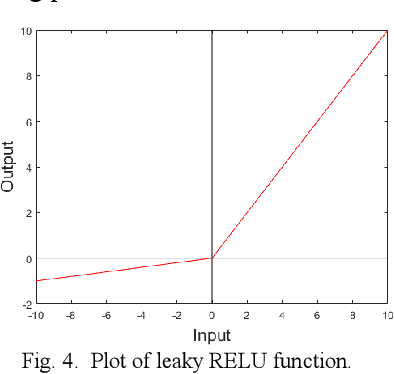

Power flow analysis is used to evaluate the flow of electricity in the power system network. Power flow calculation is used to determine the steady-state variables of the system, such as the voltage magnitude /phase angle of each bus and the active/reactive power flow on each branch. The DC power flow model is a popular linear power flow model that is widely used in the power industry. Although it is fast and robust, it may lead to inaccurate line flow results for some critical transmission lines. This drawback can be partially addressed by data-driven methods that take advantage of historical grid profiles. In this paper, a neural network (NN) model is trained to predict power flow results using historical power system data. Although the training process may take time, once trained, it is very fast to estimate line flows. A comprehensive performance analysis between the proposed NN-based power flow model and the traditional DC power flow model is conducted. It can be concluded that the proposed NN-based power flow model can find solutions quickly and more accurately than DC power flow model.
