Data-driven topology design based on principal component analysis for 3D structural design problems

Topology optimization is a structural design methodology widely utilized to address engineering challenges. However, sensitivity-based topology optimization methods struggle to solve optimization problems characterized by strong non-linearity. Leveraging the sensitivity-free nature and high capacity of deep generative models, data-driven topology design (DDTD) methodology is considered an effective solution to this problem. Despite this, the training effectiveness of deep generative models diminishes when input size exceeds a threshold while maintaining high degrees of freedom is crucial for accurately characterizing complex structures. To resolve the conflict between the both, we propose DDTD based on principal component analysis (PCA). Its core idea is to replace the direct training of deep generative models with material distributions by using a principal component score matrix obtained from PCA computation and to obtain the generated material distributions with new features through the restoration process. We apply the proposed PCA-based DDTD to the problem of minimizing the maximum stress in 3D structural mechanics and demonstrate it can effectively address the current challenges faced by DDTD that fail to handle 3D structural design problems. Various experiments are conducted to demonstrate the effectiveness and practicability of the proposed PCA-based DDTD.

Data-driven topology design using a deep generative model

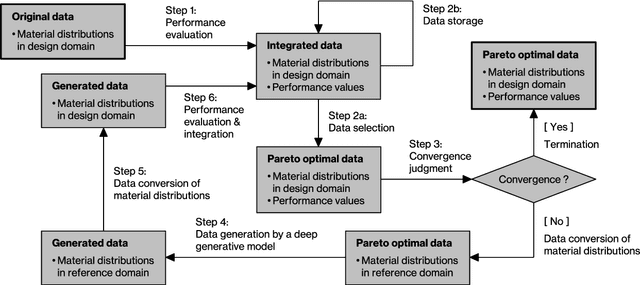

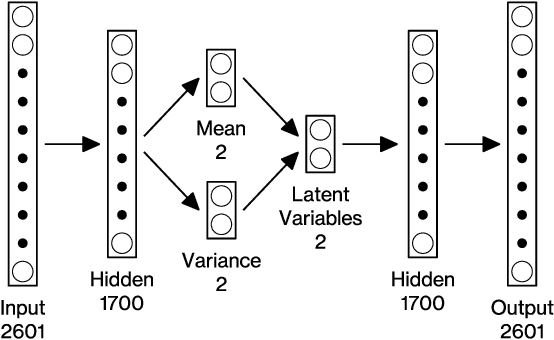

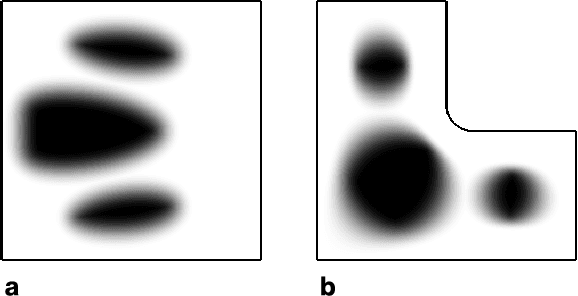

In this paper, we propose a structural design methodology called \textit{data-driven topology design}, which aims to obtain high-performance material distributions for a multi-objective optimization problem from the initially given material distributions in a given design domain. Its basic idea is iterating the following processes: (i) selecting the material distributions from a dataset according to Pareto optimality, (ii) generating new material distributions using a deep generative model with the selected material distributions as the training data, and (iii) integrating the generated material distributions into the dataset. Because of the nature of a deep generative model, the generated material distributions are diverse and inheriting features of the training data, which are material distributions on the Pareto front at that specific point. Therefore, it is expected that some of the generated material distributions are superior to the training data, whereas some are inferior, and the Pareto front is improved by integrating the generated material distributions into the dataset. The Pareto front is further improved by iterating the above processes. Data-driven topology design is used to enhance a support system for determining appropriate formulations of topology optimization problems, and its usefulness is demonstrated through numerical examples.
