Deep Concept Identification for Generative Design

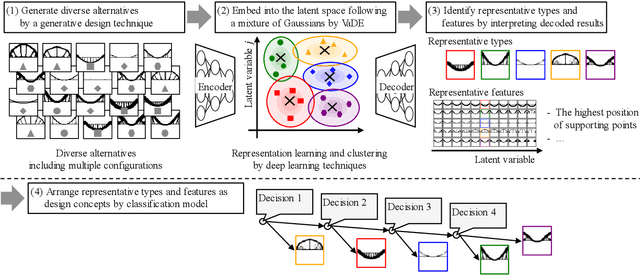

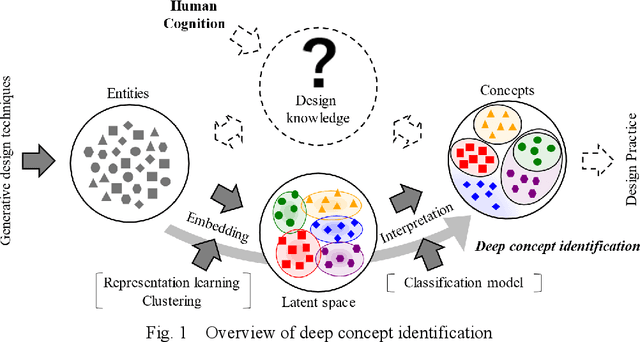

A generative design based on topology optimization provides diverse alternatives as entities in a computational model with a high design degree. However, as the diversity of the generated alternatives increases, the cognitive burden on designers to select the most appropriate alternatives also increases. Whereas the concept identification approach, which finds various categories of entities, is an effective means to structure alternatives, evaluation of their similarities is challenging due to shape diversity. To address this challenge, this study proposes a concept identification framework for generative design using deep learning (DL) techniques. One of the key abilities of DL is the automatic learning of different representations of a specific task. Deep concept identification finds various categories that provide insights into the mapping relationships between geometric properties and structural performance through representation learning using DL. The proposed framework generates diverse alternatives using a generative design technique, clusters the alternatives into several categories using a DL technique, and arranges these categories for design practice using a classification model. This study demonstrates its fundamental capabilities by implementing variational deep embedding, a generative and clustering model based on the DL paradigm, and logistic regression as a classification model. A simplified design problem of a two-dimensional bridge structure is applied as a case study to validate the proposed framework. Although designers are required to determine the viewing aspect level by setting the number of concepts, this implementation presents the identified concepts and their relationships in the form of a decision tree based on a specified level.

Data-driven topology design using a deep generative model

In this paper, we propose a structural design methodology called \textit{data-driven topology design}, which aims to obtain high-performance material distributions for a multi-objective optimization problem from the initially given material distributions in a given design domain. Its basic idea is iterating the following processes: (i) selecting the material distributions from a dataset according to Pareto optimality, (ii) generating new material distributions using a deep generative model with the selected material distributions as the training data, and (iii) integrating the generated material distributions into the dataset. Because of the nature of a deep generative model, the generated material distributions are diverse and inheriting features of the training data, which are material distributions on the Pareto front at that specific point. Therefore, it is expected that some of the generated material distributions are superior to the training data, whereas some are inferior, and the Pareto front is improved by integrating the generated material distributions into the dataset. The Pareto front is further improved by iterating the above processes. Data-driven topology design is used to enhance a support system for determining appropriate formulations of topology optimization problems, and its usefulness is demonstrated through numerical examples.
